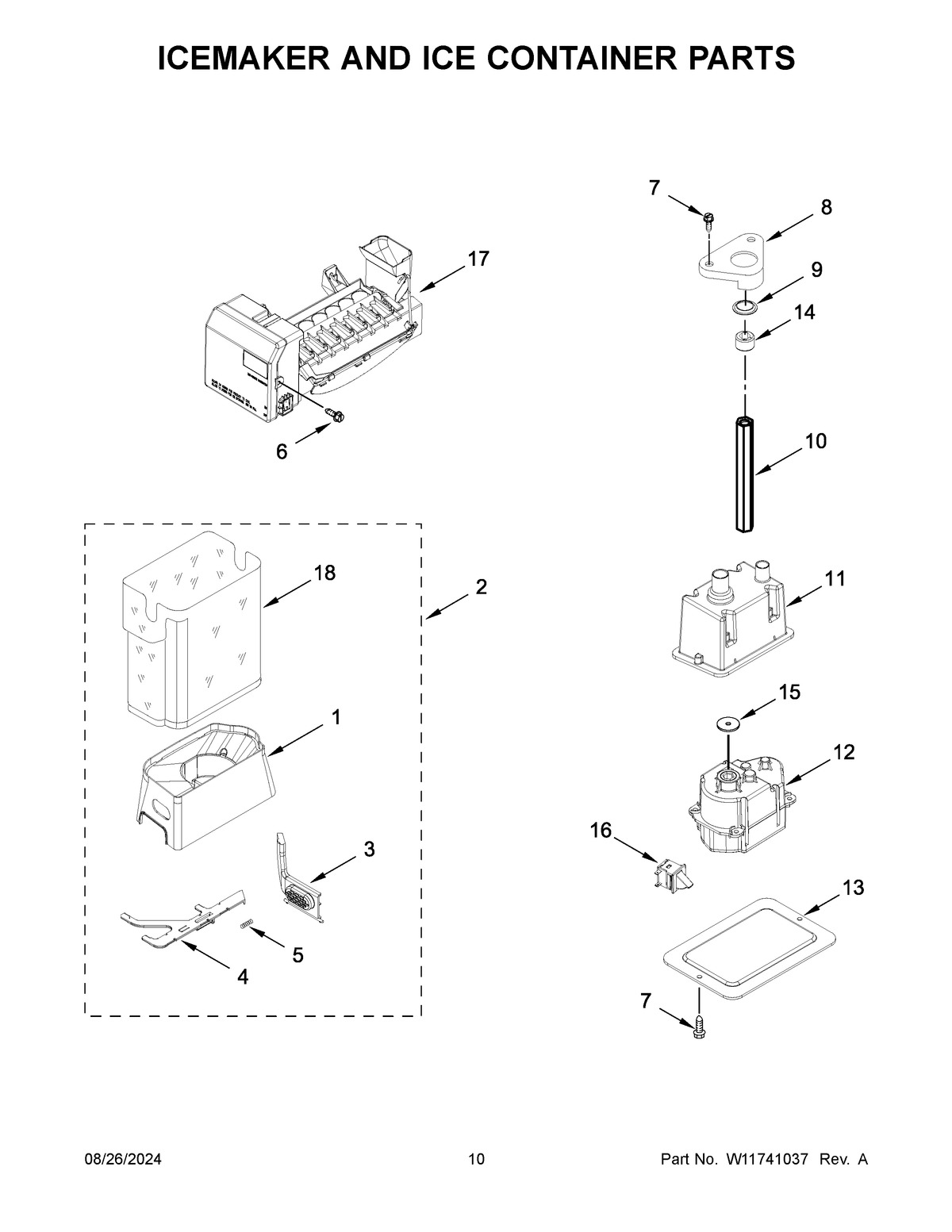

KBSD706MPS01 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	BIN, LOWER CRUSHER
2	W11574170 Whirlpool Ice Container
3	W10749207 Whirlpool Refrigerator Bin Button
4	W10134784 Whirlpool Refrigerator Bin Latch
5	WP2198608 Whirlpool Refrigerator Spring
6	WP488729 Whirlpool Refrigerator Door Screw
7	WP8281163 Whirlpool Refrigerator Screw
8	CLIP, SHAFT
9	WP2198628 Whirlpool Door Seal
10	WP2318082 Whirlpool Ice Ejector Bar
11	ENCLOSURE, DISPENSER MOTOR
12	W10822606 Whirlpool Dishwasher Dispenser Motor
13	W11608469 Whirlpool Cover
14	WP2315559 Whirlpool Motor Coupling
15	WPW10254073 Whirlpool Refrigerator Washer
16	W11629953 Whirlpool Switch
17	ICEMAKER, COMPLETE
18	Ice Bin
