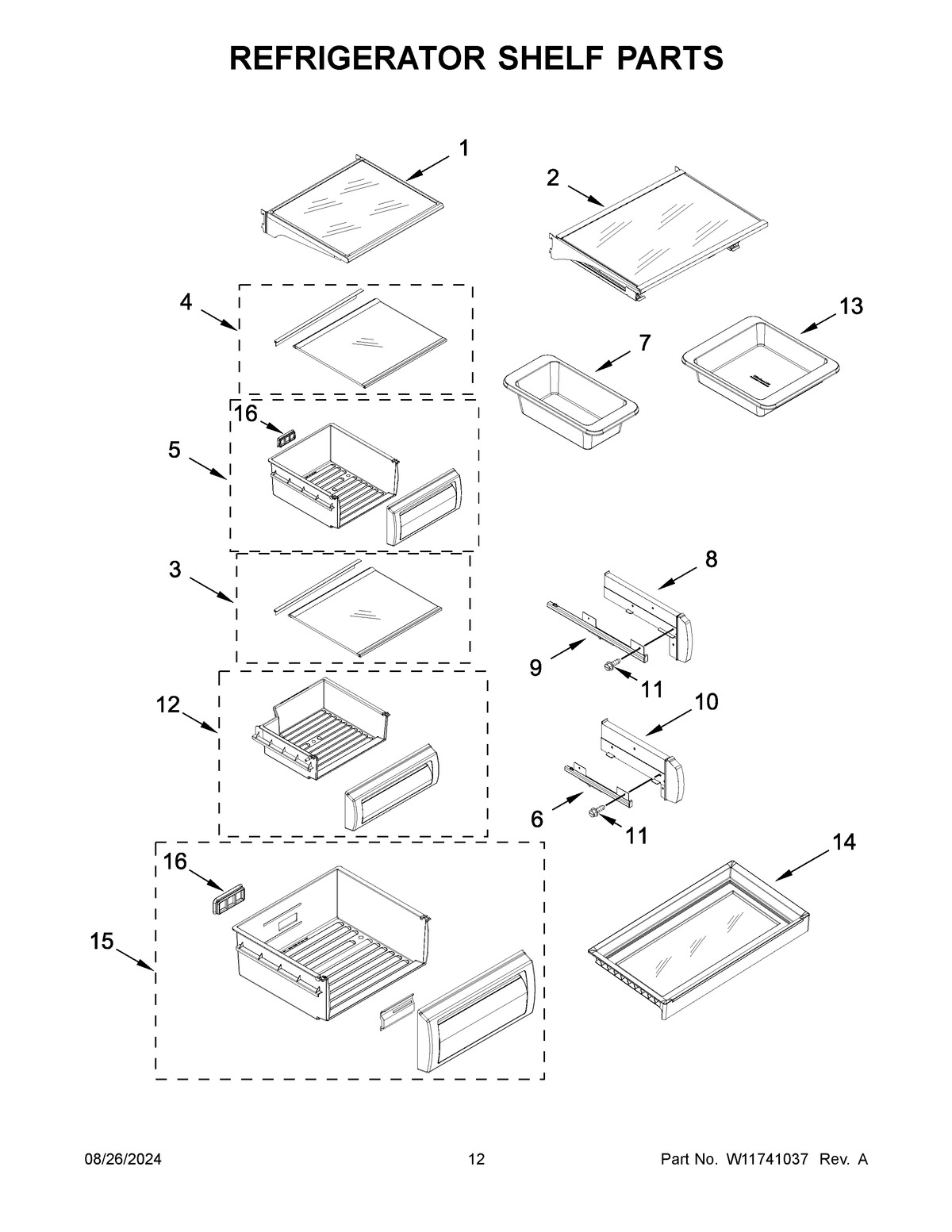

KBSD706MPS01 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1SHELF ASSEMBLY, FIXED
2SHELF ASSEMBLY, BAKEWARE
3PAN COVER ASSEMBLY, MEAT
4PAN COVER ASSEMBLY, CRISPER
5PAN ASSEMBLY, CRISPER
6W10844011 Whirlpool Refrigerator Slide
6AW10732727 Whirlpool Refrigerator Slide
7PAN, LOAF
8ASPACER, CRISPER (RIGHT HAND)
8SPACER, CRISPER (LEFT HAND)
9A2302957 Whirlpool Refrigerator Slide
92302956 Whirlpool Refrigerator Slide
10SPACER, MEAT PAN (LEFT HAND)
10ASPACER, MEAT PAN (RIGHT HAND)
11WP8533928 Whirlpool Refrigerator Screw
11AWP3400886 Whirlpool Refrigerator Screw
12PAN ASSEMBLY, MEAT
13PAN, CAKE
14SHELF ASSEMBLY, PLATTER
15PAN, COOL CONTROL CRISPER
162307810 Whirlpool Refrigerator Air Duct
