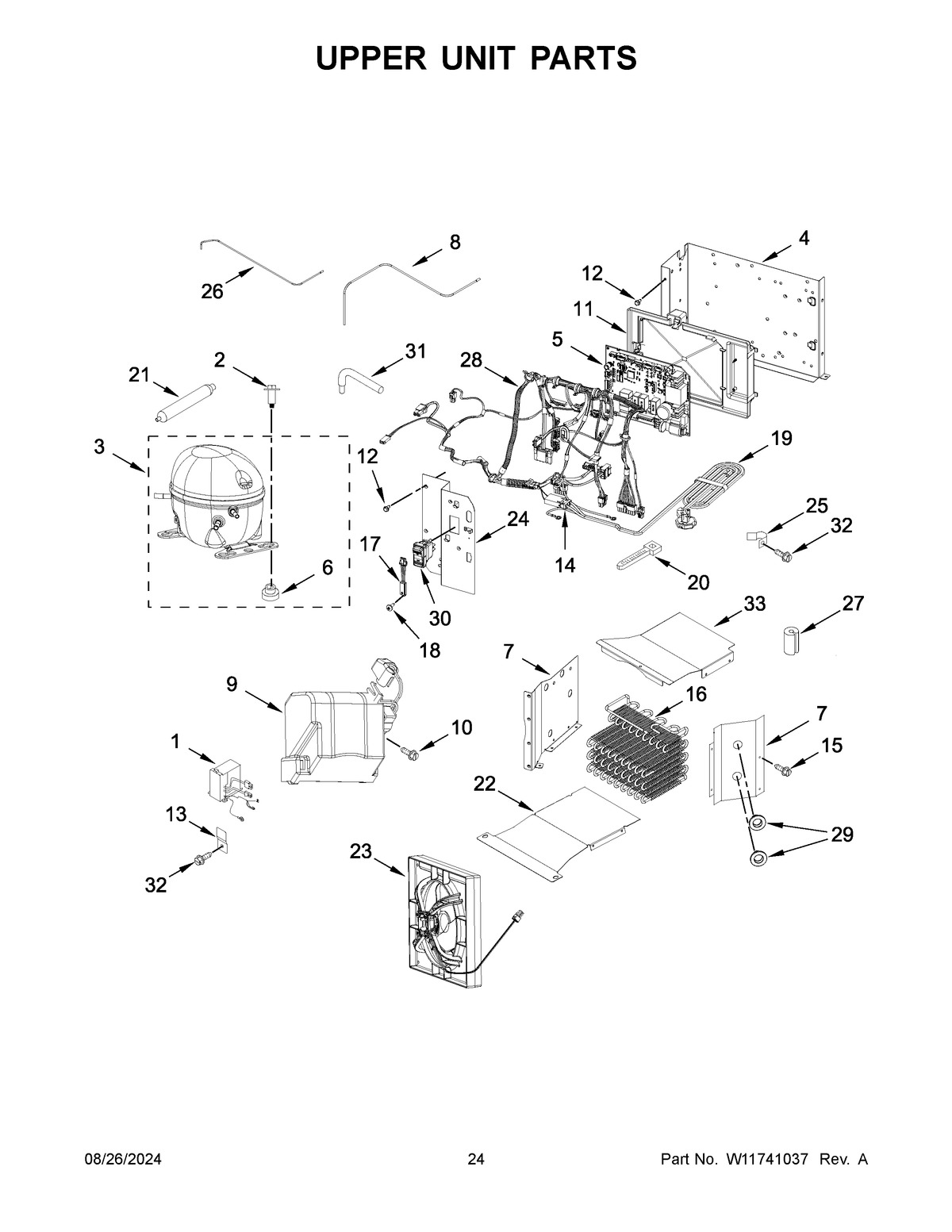

KBSD706MPS01 13 – UPPER UNIT PARTS

Products

Position	Product
NI	WPL ARI6A800044A9CA84CC57A08DC4A712652B
1	INVRTR-BOX
2	SCREW
3A	W11504415 Whirlpool Refrigerator Coupler
3	W11557671 Whirlpool Refrigerator Compressor
3C	W11504416 Whirlpool Refrigerator Coupler
3B	W11504431 Whirlpool Microwave Coupler
4	W10550831 Whirlpool Refrigerator Housing
5	CNTRL-ELEC+CORE
6	W11661108 Whirlpool Grommet
7A	SUPPORT, CONDENSER (RIGHT HAND)
7	SUPPORT, CONDENSER (LEFT HAND)
8	TUBE, HEAT LOOP TRANSITION
9	W11247667 Whirlpool Refrigerator Cover
10	WP9741232 Whirlpool Dishwasher Screw
11	HOUSING, CONTROL BOARD
12	WP965173 Whirlpool Dishwasher Screw
13	2256328 Whirlpool Bracket Assembly
14	2310195 Whirlpool Refrigerator Wire Jumper
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER
17	W11627456 Whirlpool Sensor
18	SCREW
19	2310196 Whirlpool Refrigerator Power Cord
20	WPW10339879 Whirlpool Wire Tie
21B	W11504432 Whirlpool Refrigerator Coupler
21A	W11504445 Whirlpool Refrigerator Coupler
21	W11109499 Whirlpool Refrigerator Tube
22	BRACKET, CONDENSER BOTTOM
23	W11623099 Whirlpool Condenser Motor
24	BRACKET, CONTROL ASSEMBLY
25	W11234470 Whirlpool Refrigerator Clamp
26	TUBE, DRIER TRANSITI
27	W10852725 Whirlpool Refrigerator Grommet
28	W11421662 Whirlpool Wire Harness
29	GROMMET
30	SWITCH, POWER DISCONNECT
31	TUBE, PROCESS
32	W11624204 Whirlpool Screw
33	WPL W11695783
