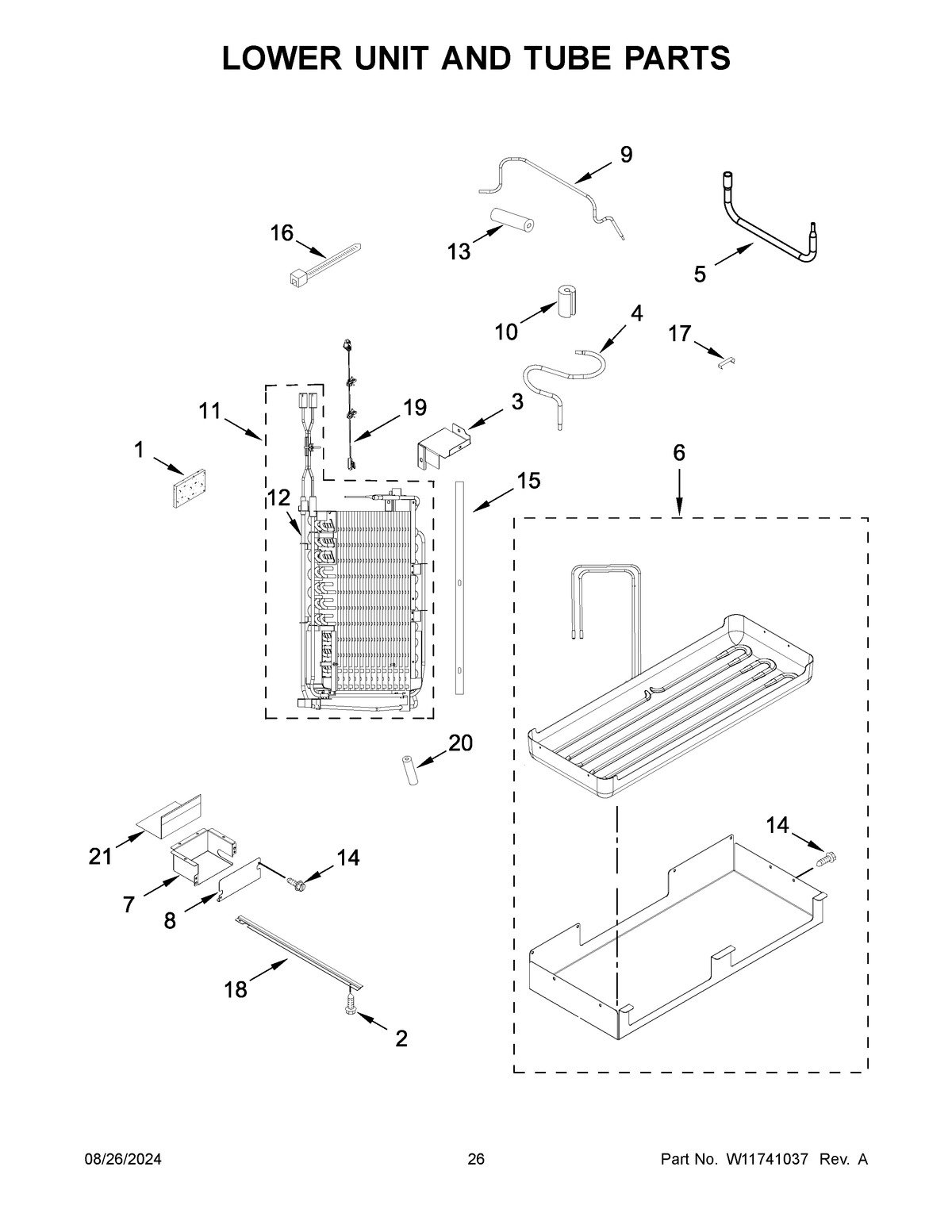

KBSD706MPS01 14 – LOWER UNIT AND TUBE PARTS

KBSD706MPS01 14 – LOWER UNIT AND TUBE PARTS

Written by

in

KBSD706MPS01 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1W11553819 Whirlpool Refrigerator Insulation
2W11624204 Whirlpool Screw
3BRACKET, EVAPORATOR RIGHT TOP
4TUBE
5TUBE
6ASSEMBLY, DRAIN PAN
7COVER, WIRING BOTTOM
8COVER, WIRE BOX
9TUBE, DISCHARGE
10W11715935 Whirlpool Dampener
11AW11504450 Whirlpool Refrigerator Coupler
11ASSEMBLY, EVAPORATOR AND HEATER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
11BW11506620 Whirlpool Refrigerator Coupler
12W11267070 Whirlpool Heater
13SLEEVE
14WP489069 Whirlpool Compactor Screw
15W10432308 Whirlpool Gasket
16WPW10339879 Whirlpool Wire Tie
17W10169509 Whirlpool Refrigerator Clip
182320554 Whirlpool Bracket
19W11629268 Whirlpool Thermistor
202215648 Whirlpool Refrigerator Dampener
21W10321050 Whirlpool Refrigerator Shield
