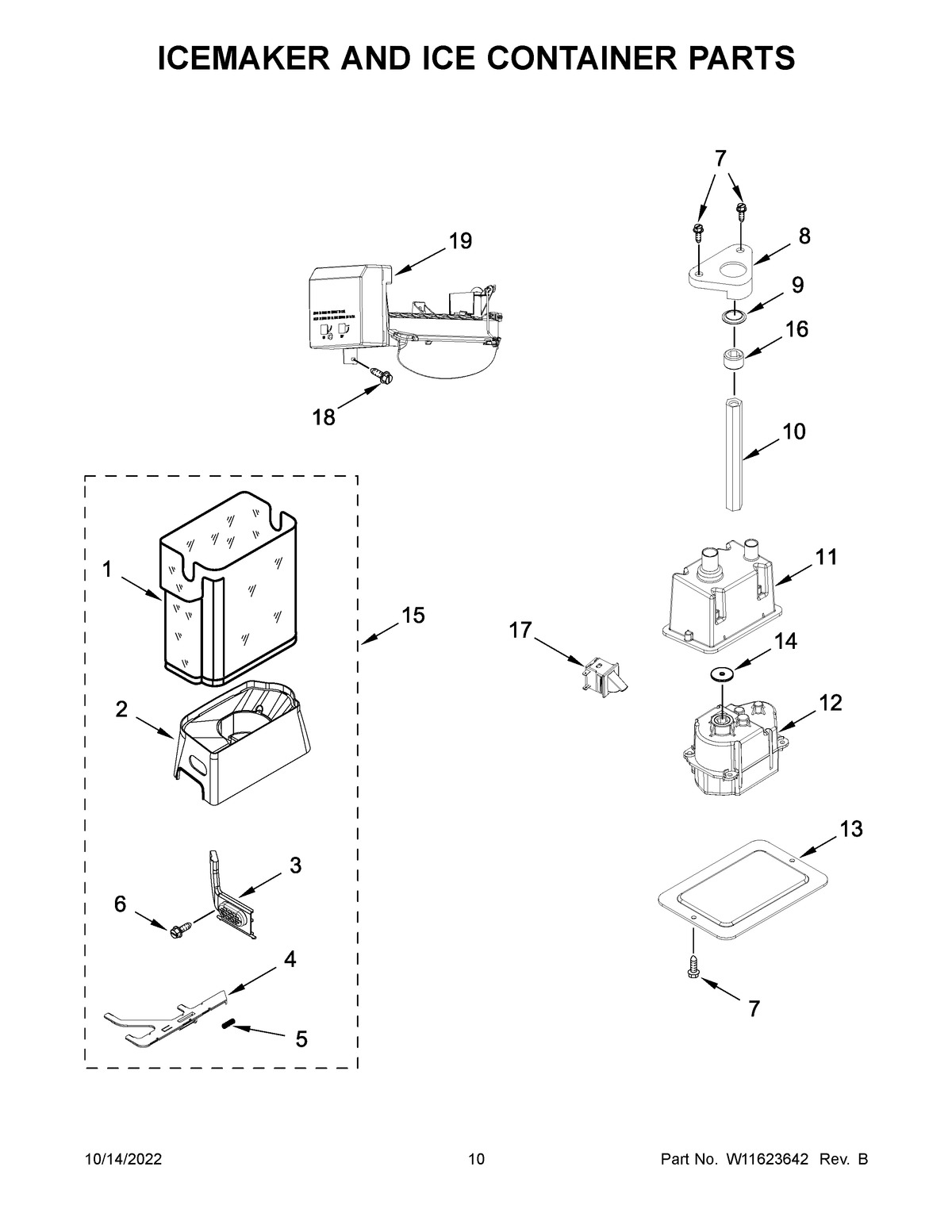

KBSD708MBS00 06 – ICEMAKER AND ICE CONTAINER PARTS

KBSD708MBS00 06 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

KBSD708MBS00 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1WP2222970 Whirlpool Refrigerator Ice Bin
2BIN, LOWER CRUSHER
3W10749207 Whirlpool Refrigerator Bin Button
4W10134785 Whirlpool Refrigerator Bin Latch
5WP2198608 Whirlpool Refrigerator Spring
62198671 Whirlpool Refrigerator Screw
7WP8281163 Whirlpool Refrigerator Screw
8CLIP, SHAFT
9WP2198628 Whirlpool Door Seal
10WP2318082 Whirlpool Ice Ejector Bar
11ENCLOSURE, DISPENSER MOTOR
12W10822606 Whirlpool Dishwasher Dispenser Motor
13W11608469 Whirlpool Cover
14WPW10254073 Whirlpool Refrigerator Washer
15W11747578 Whirlpool Ice Container
16WP2315559 Whirlpool Motor Coupling
17W11629953 Whirlpool Switch
18WP488729 Whirlpool Refrigerator Door Screw
19W11626124 Whirlpool Icemaker Assembly
