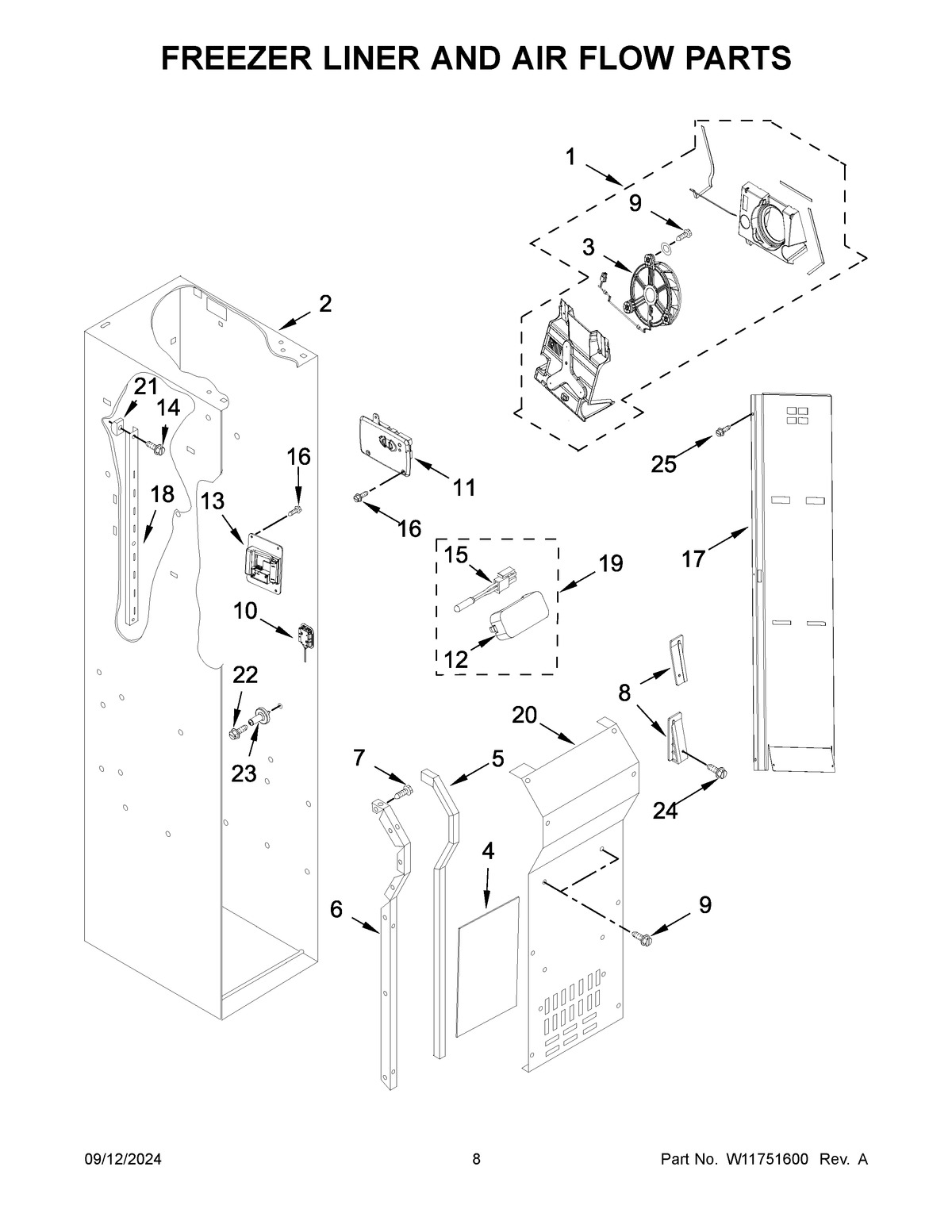

KBSD708MBS01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11631626 Whirlpool Evaporator Motor
2LINER (NOT SERVICED)
3W11618271 Whirlpool Evaporator Motor
4GASKET, FC EVAPORATOR BYPASS
5GASKET, EVAPORATOR COVER
6ARAIL, EVAPORATOR COVER (RIGHT HAND)
6RAIL, EVAPORATOR COVER (LEFT HAND)
7W11624204 Whirlpool Screw
8AWEDGE, AIR DUCT (RIGHT HAND)
8WEDGE, AIR DUCT (LEFT HAND)
9WP488729 Whirlpool Refrigerator Door Screw
10W11484836 Whirlpool Refrigerator Module
12W10609678 Whirlpool Refrigerator Cover
14SCREW
15WP2188820 Whirlpool Refrigerator Thermistor
16SCREW (STAINLESS)
17DUCT, AIR
18LADDER, SHELF
19W11625042 Whirlpool Cover
20COVER, EVAPORATOR
21520965 Whirlpool Refrigerator Support
22WPW10191952 Whirlpool Refrigerator Screw
23ASSEMBLY, SHELF STUD
24WP98008545 Whirlpool Screw
25WP489464 Whirlpool Refrigerator Screw
