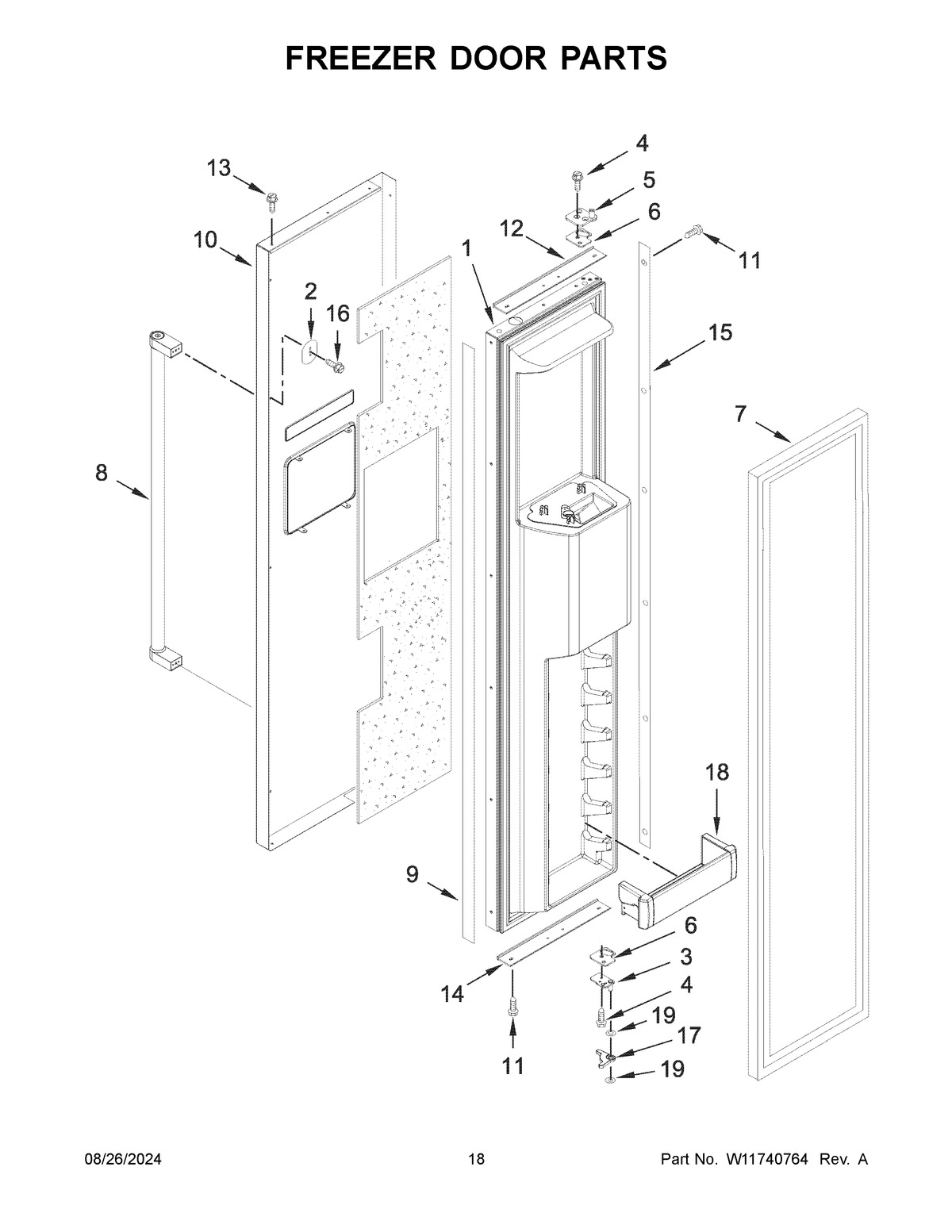

KBSD708MPS01 10 – FREEZER DOOR PARTS

KBSD708MPS01 10 – FREEZER DOOR PARTS

Written by

in

KBSD708MPS01 10 – FREEZER DOOR PARTS

Products

PositionProduct
1W11633382 Whirlpool Door FIP
2W10127710 Whirlpool Refrigerator Plate
3HINGE-DOOR
4W11474472 Whirlpool Screw
6W11673500 Whirlpool Door Hinge
7W11625072 Whirlpool Refrigerator FIP Gasket
8W10783284 Whirlpool Refrigerator Handle
9W10758113 Whirlpool Refrigerator Spacer
10W11633389 Whirlpool Door Skin Assembly
11SCREW (STAINLESS)
12W10758121 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14SPACER, DOOR SKIN BOTTOM
15W10756209 Whirlpool Refrigerator Spacer
16WP308544 Whirlpool Screw
17W11700297 Whirlpool Refrigerator Gap Hinge
18BIN, SHALLOW DOOR
19WP2006346 Whirlpool Refrigerator Washer
