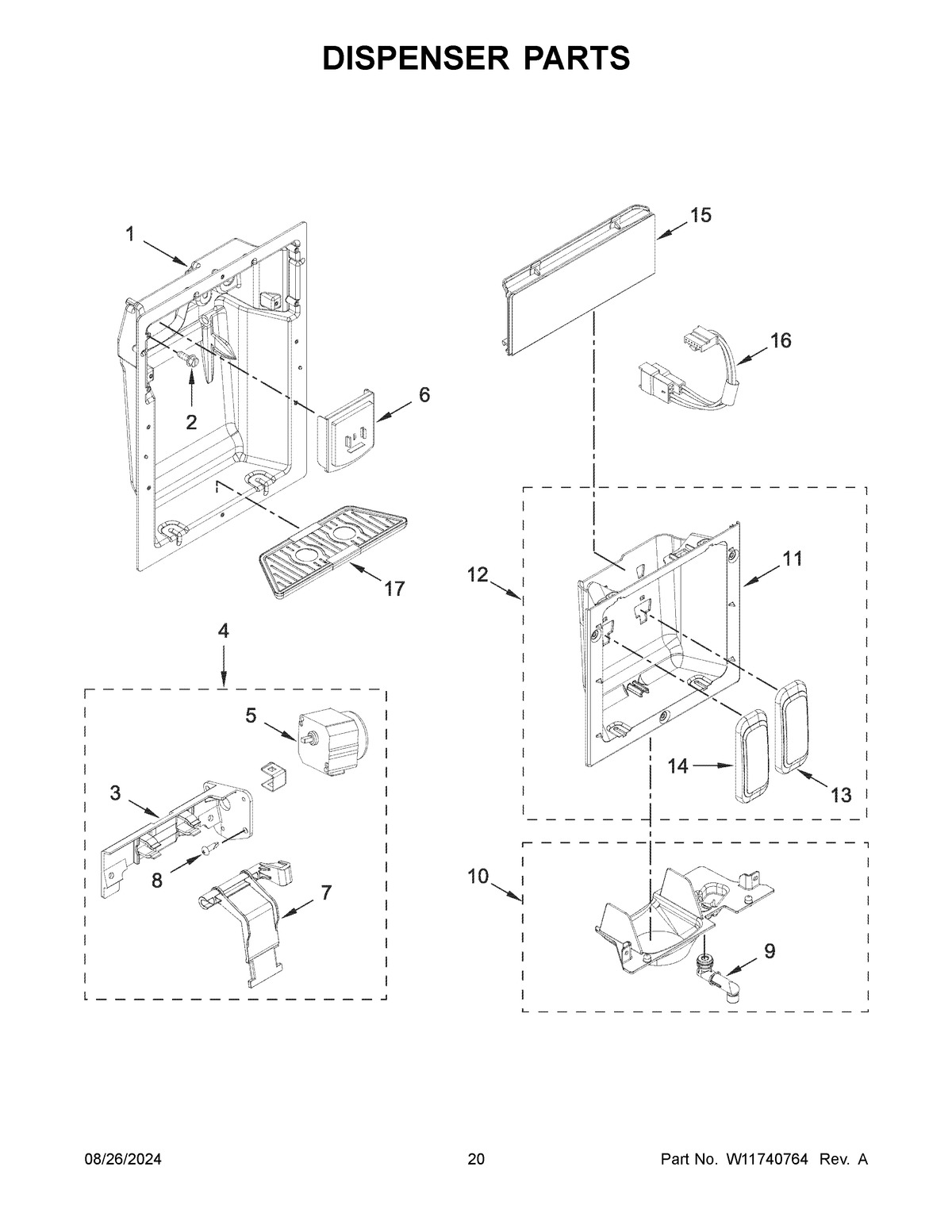

KBSD708MPS01 11 – DISPENSER PARTS

Products

Position	Product
1	HOUSING, DISPENSER (NOT SERVICED)
2	WP8281163 Whirlpool Refrigerator Screw
3	W10542660 Whirlpool Refrigerator Bracket
4	WPW10546285 Whirlpool Refrigerator Motor
5	WPW10205979 Whirlpool Refrigerator Ice Door Motor
6	WPW10504458 Whirlpool Refrigerator Door Chute
7	W10542663 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	WP2305235 Whirlpool Refrigerator Spigot
10	W11649219 Whirlpool Separator
11	HOUSING, MIDDLE (NOT AVAILABLE ORDER ITEM 12)
12	W11625251 Whirlpool Front Cover
13	ASSEMBLY, WATER PADDLE
14	ASSEMBLY, ICE PADDLE
15	W11626104-includeCORE Whirlpool W11626104 Refrigerator Electronic Control Board + Core
16	W11629730 Whirlpool Jumper Wire
17	W11626241 Whirlpool Drip Tray
