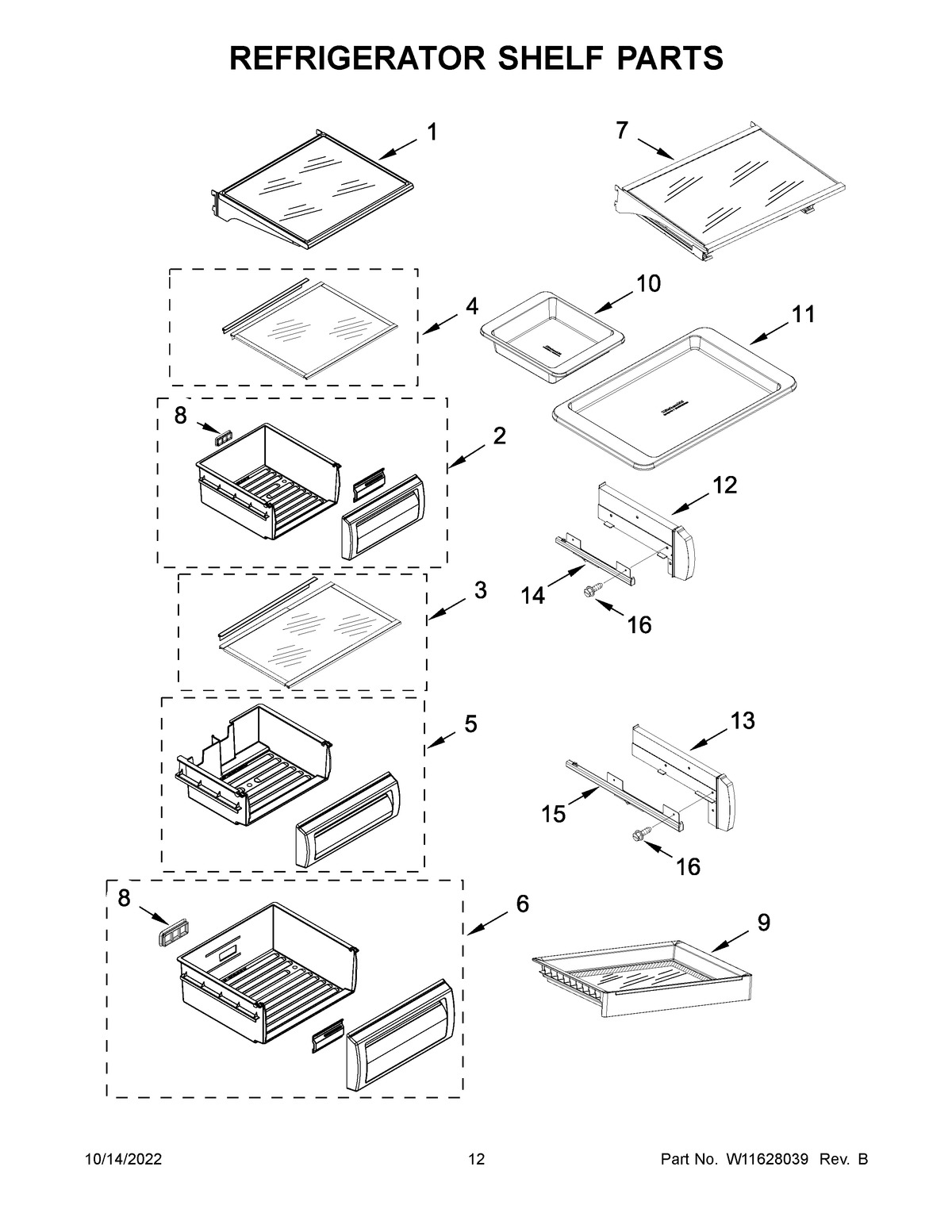

KBSD708MSS00 07 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	W11626834 Whirlpool Shelf Assembly – Cantilever
2	ASSEMBLY, CRISPER PAN
3	PAN COVER ASSEMBLY, MEAT
4	PAN COVER ASSEMBLY, CRISPER
5	PAN ASSEMBLY, MEAT
6	PAN, COOL CONTROL CRISPER
7	SHELF-GLAS
8	2307810 Whirlpool Refrigerator Air Duct
9	SHELF ASSEMBLY, PLATTER
10	W11633366 Whirlpool Utility Pan
11	W11633367 Whirlpool Utility Pan
12	SPACER, CRISPER (LEFT HAND)
12A	SPACER, CRISPER (RIGHT HAND)
13A	SPACER, MEAT PAN (RIGHT HAND)
13	SPACER, MEAT PAN (LEFT HAND)
14	2302956 Whirlpool Refrigerator Slide
14A	2302957 Whirlpool Refrigerator Slide
15	2302954 Whirlpool Refrigerator Slide
15A	2302955 Whirlpool Refrigerator Slide
16A	WP3400886 Whirlpool Refrigerator Screw
16	WP8533928 Whirlpool Refrigerator Screw
