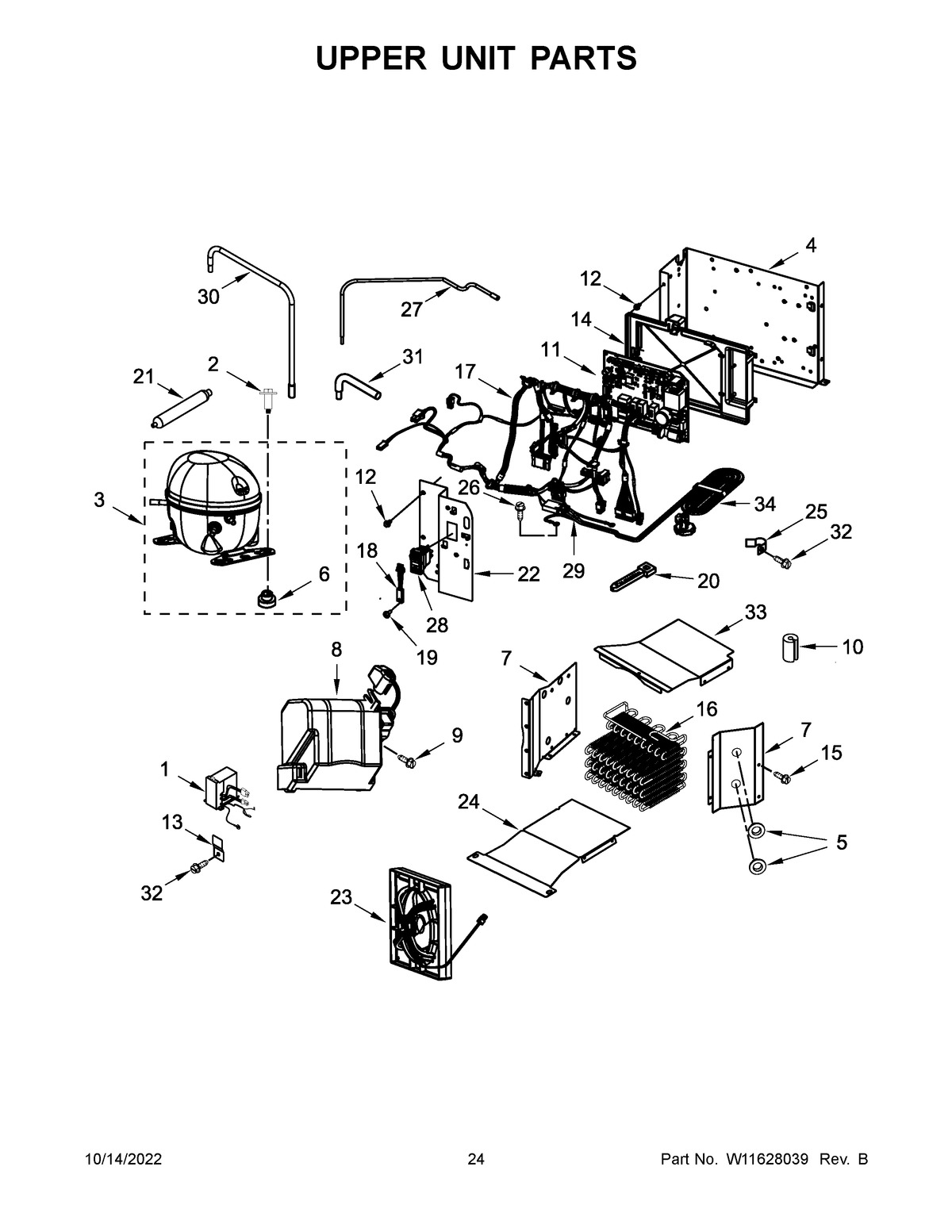

KBSD708MSS00 13 – UPPER UNIT PARTSadmin2025-04-26T12:26:16+00:00KBSD708MSS00 13 – UPPER UNIT PARTS ProductsPositionProductNICABINET (NOT A SERVICEABLE PART)1INVRTR-BOX2SCREW3CW11504416 Whirlpool Refrigerator Coupler3AW11504415 Whirlpool Refrigerator Coupler3W11557671 Whirlpool Refrigerator Compressor3BW11504431 Whirlpool Microwave Coupler4W10550831 Whirlpool Refrigerator Housing5GROMMET6W11661108 Whirlpool Grommet7ASUPPORT, CONDENSER (RIGHT HAND)7SUPPORT, CONDENSER (LEFT HAND)8W11247667 Whirlpool Refrigerator Cover9WP9741232 Whirlpool Dishwasher Screw10W10852725 Whirlpool Refrigerator Grommet11CNTRL-ELEC+CORE12WP965173 Whirlpool Dishwasher Screw132256328 Whirlpool Bracket Assembly14HOUSING, CONTROL BOARD15WP489069 Whirlpool Compactor Screw16CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)17W11421662 Whirlpool Wire Harness18W11627456 Whirlpool Sensor19SCREW20WPW10339879 Whirlpool Wire Tie21W11109499 Whirlpool Refrigerator Tube21BW11504432 Whirlpool Refrigerator Coupler21AW11504445 Whirlpool Refrigerator Coupler22BRACKET, CONTROL ASSEMBLY23W11623099 Whirlpool Condenser Motor24WPL W1144311925W11234470 Whirlpool Refrigerator Clamp26WP489128 Whirlpool Refrigerator Screw27TUBE, HEAT LOOP TRANSITION28SWITCH, POWER DISCONNECT292310195 Whirlpool Refrigerator Wire Jumper30TUBE, DRIER TRANSITION31TUBE, PROCESS32W11624204 Whirlpool Screw33COVER, CONDENSER SUPPORT342310196 Whirlpool Refrigerator Power Cord
