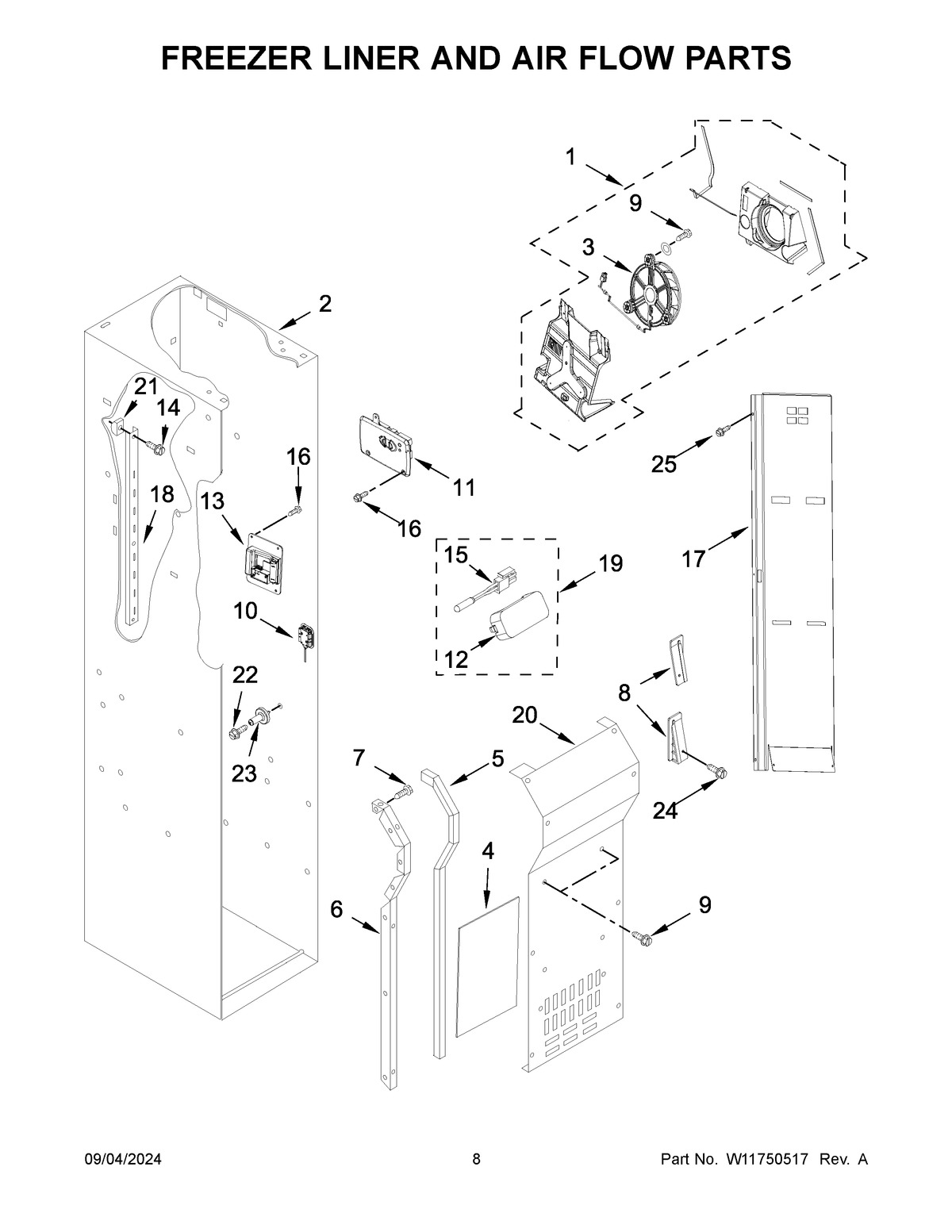

KBSD708MSS01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	W11631626 Whirlpool Evaporator Motor
2	LINER (NOT SERVICED)
3	W11618271 Whirlpool Evaporator Motor
4	GASKET, FC EVAPORATOR BYPASS
5	GASKET, EVAPORATOR COVER
6A	RAIL, EVAPORATOR COVER (RIGHT HAND)
6	RAIL, EVAPORATOR COVER (LEFT HAND)
7	W11624204 Whirlpool Screw
8A	WEDGE, AIR DUCT (RIGHT HAND)
8	WEDGE, AIR DUCT (LEFT HAND)
9	WP488729 Whirlpool Refrigerator Door Screw
10	W11484836 Whirlpool Refrigerator Module
12	W10609678 Whirlpool Refrigerator Cover
14	SCREW
15	WP2188820 Whirlpool Refrigerator Thermistor
16	SCREW (STAINLESS)
17	DUCT, AIR
18	LADDER, SHELF
19	W11625042 Whirlpool Cover
20	COVER, EVAPORATOR
21	520965 Whirlpool Refrigerator Support
22	WPW10191952 Whirlpool Refrigerator Screw
23	ASSEMBLY, SHELF STUD
24	WP98008545 Whirlpool Screw
25	WP489464 Whirlpool Refrigerator Screw
