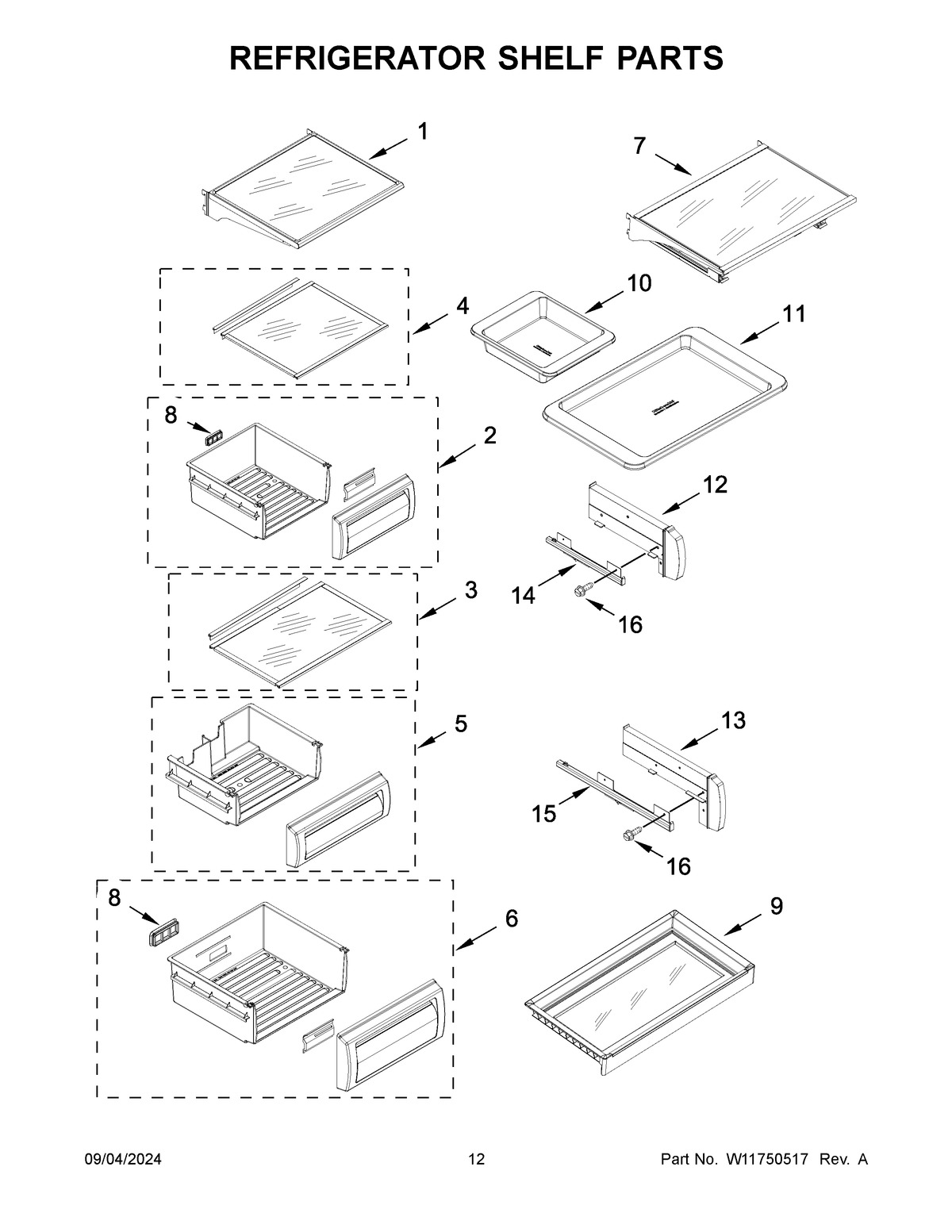

KBSD708MSS01 07 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	W11626834 Whirlpool Shelf Assembly – Cantilever
2	PAN ASSEMBLY, CRISPER
3	PAN COVER ASSEMBLY, MEAT
4	PAN COVER ASSEMBLY, CRISPER
5	PAN ASSEMBLY, MEAT
6	PAN, COOL CONTROL CRISPER
7	SHELF-GLAS
8	2307810 Whirlpool Refrigerator Air Duct
9	SHELF ASSEMBLY, PLATTER
10	W11633366 Whirlpool Utility Pan
11	W11633367 Whirlpool Utility Pan
12	SPACER, CRISPER (LEFT HAND)
12A	SPACER, CRISPER (RIGHT HAND)
13A	SPACER, MEAT PAN (RIGHT HAND)
13	SPACER, MEAT PAN (LEFT HAND)
14	2302956 Whirlpool Refrigerator Slide
14A	2302957 Whirlpool Refrigerator Slide
15	W10844011 Whirlpool Refrigerator Slide
15A	W10732727 Whirlpool Refrigerator Slide
16	WP3400886 Whirlpool Refrigerator Screw
16	WP8533928 Whirlpool Refrigerator Screw
