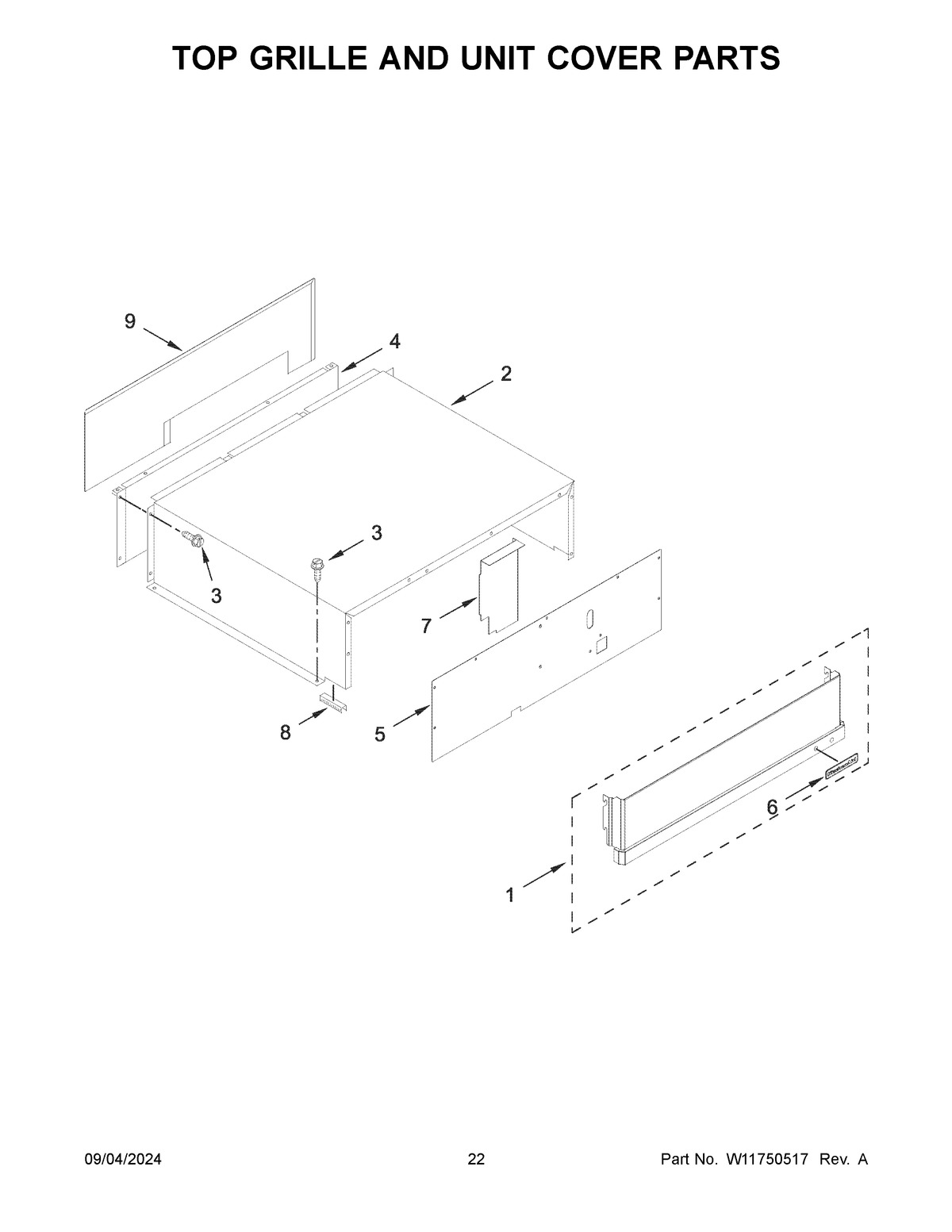

KBSD708MSS01 12 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1ASSEMBLY, TOP GRILLE (STAINLESS)
2COVER, UNIT
3WPL W10784922
4PANEL, UNIT BACK
5COVER, UNIT FRONT
6W10839793 Whirlpool Refrigerator Nameplate
7W10645086 Whirlpool Refrigerator Divider
82215910 Whirlpool Refrigerator Grommet
9INSULATION, UNIT BACK PANEL
