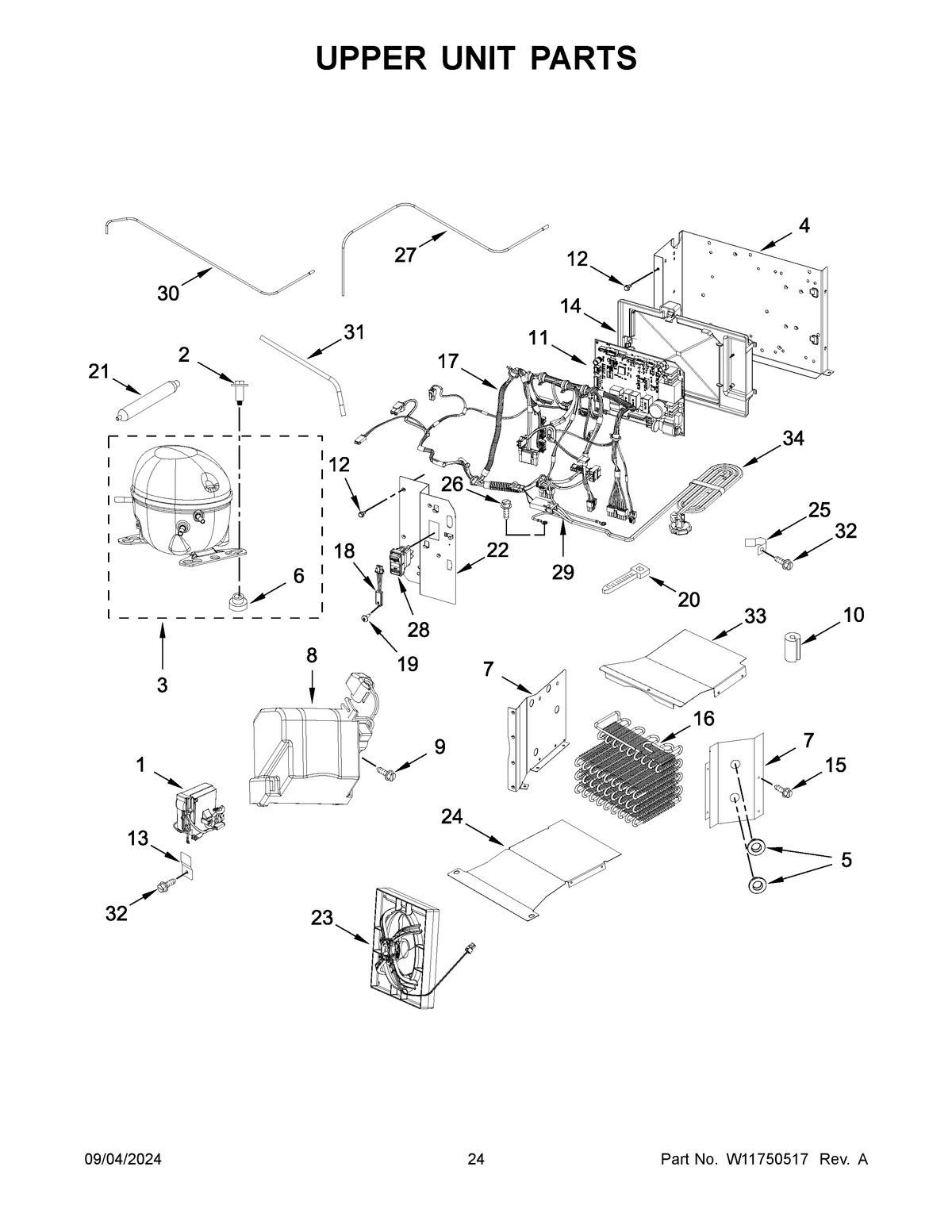

KBSD708MSS01 13 – UPPER UNIT PARTS

Products

Position	Product
NI	WPL ARIC72CB5B276C01BB311A52CEB21CF5406
1	INVRTR-BOX
2	SCREW
3A	W11504415 Whirlpool Refrigerator Coupler
3	W11557671 Whirlpool Refrigerator Compressor
3B	W11504431 Whirlpool Microwave Coupler
3C	W11504416 Whirlpool Refrigerator Coupler
4	W10550831 Whirlpool Refrigerator Housing
5	GROMMET
6	W11661108 Whirlpool Grommet
7	SUPPORT, CONDENSER (LEFT HAND)
7A	SUPPORT, CONDENSER (RIGHT HAND)
8	W11247667 Whirlpool Refrigerator Cover
9	WP9741232 Whirlpool Dishwasher Screw
10	W10852725 Whirlpool Refrigerator Grommet
11	CNTRL-ELEC+CORE
12	WP965173 Whirlpool Dishwasher Screw
13	2256328 Whirlpool Bracket Assembly
14	HOUSING, CONTROL BOARD
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER
17	W11421662 Whirlpool Wire Harness
18	W11627456 Whirlpool Sensor
19	SCREW
20	WPW10339879 Whirlpool Wire Tie
21A	W11504445 Whirlpool Refrigerator Coupler
21B	W11504432 Whirlpool Refrigerator Coupler
21	W11109499 Whirlpool Refrigerator Tube
22	BRACKET, CONTROL ASSEMBLY
23	W11623099 Whirlpool Condenser Motor
24	BRACKET, CONDENSER BOTTOM
25	W11234470 Whirlpool Refrigerator Clamp
26	WP489128 Whirlpool Refrigerator Screw
27	TUBE, HEAT LOOP TRANSITION
28	SWITCH, POWER DISCONNECT
29	2310195 Whirlpool Refrigerator Wire Jumper
30	TUBE, DRIER TRANSITI
31	TUBE, PROCESS
32	W11624204 Whirlpool Screw
33	WPL W11695783
34	2310196 Whirlpool Refrigerator Power Cord
