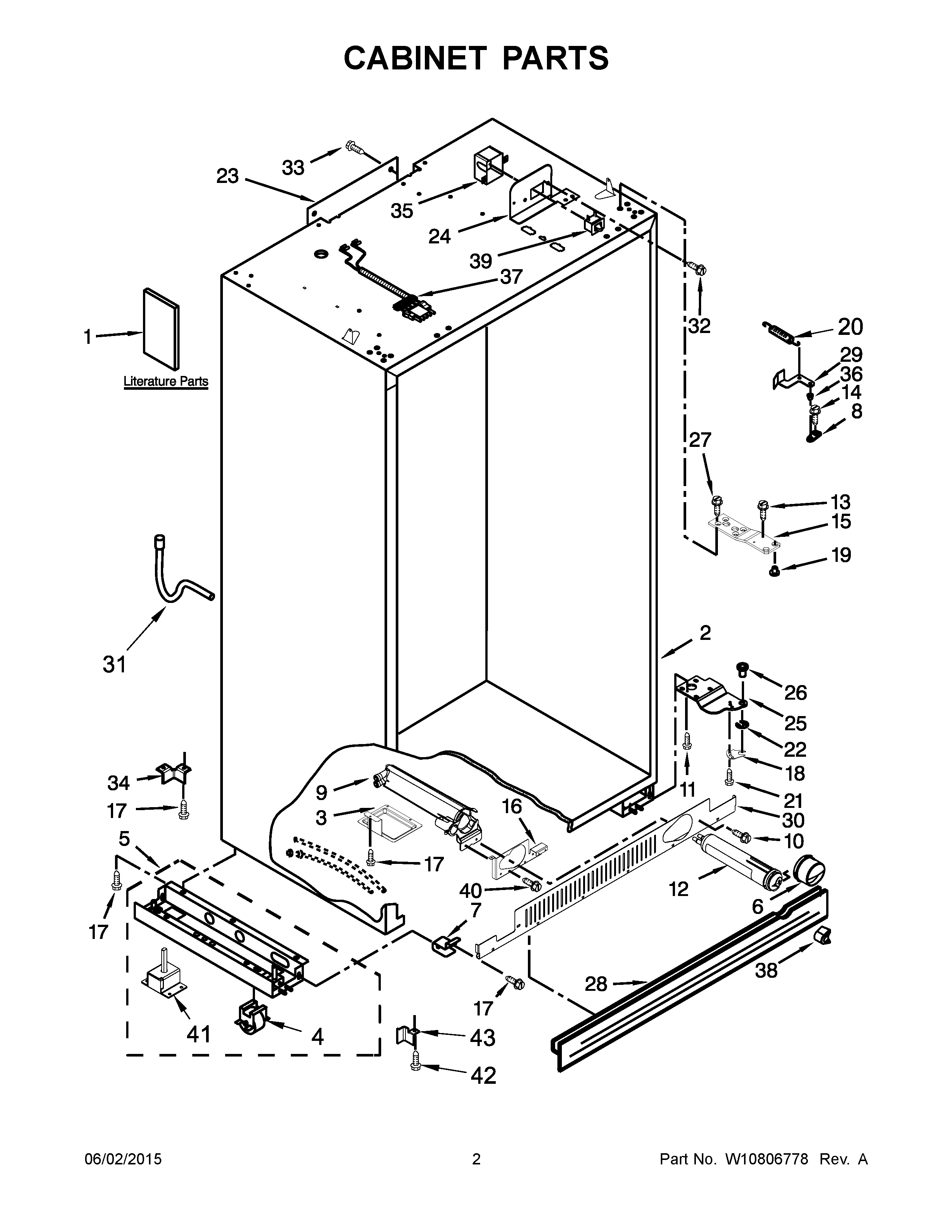

KBSN508ESS00 02 – CABINET PARTS

KBSN508ESS00 02 – CABINET PARTS

Written by

in

KBSN508ESS00 02 – CABINET PARTS

Products

PositionProduct
1CMAIN CONTROL SERVICE SHEET
1AENERGY GUIDE
1DINSTALLATION INSTRUCTIONS
1BIcemaker and Ingredient Care Center Service Sheet
1USE AND CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
32318189 Whirlpool Refrigerator Drip Pan
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5AW10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
6WP2260518B Whirlpool Water Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
8WP2320509 Whirlpool Refrigerator Door Cam
9WPW10121140 Whirlpool Refrigerator Housing
11Screw
12FILTER 3-SINGLE TEAL
13WP8281164 Whirlpool Refrigerator Screw
14W11177574 Whirlpool Refrigerator Screw
152257644 Whirlpool Refrigerator Door Hinge
16W10674648 Whirlpool Refrigerator Bracket
17WP489464 Whirlpool Refrigerator Screw
18WP2004994 Whirlpool Refrigerator Hinge Bushing
19W11500952 Whirlpool Refrigerator Hinge Bushing
20WP2004517 Whirlpool Refrigerator Spring
21SCREW
22WP489236 Whirlpool Refrigerator Ring
232215612 Whirlpool Refrigerator Duct Cover
242221096 Whirlpool Refrigerator Bracket
24A2221097 Whirlpool Refrigerator Bracket
25AWP2006780 Whirlpool Refrigerator Door Hinge
25W10527053 Whirlpool Refrigerator Door Hinge
26WP2302876 Whirlpool Refrigerator Hinge Bushing
27W11189635 Whirlpool Refrigerator Screw
28W10859915 Whirlpool Grille
29AW10847927 Whirlpool Refrigerator Extension
29W11298172 Whirlpool Refrigerator Extension
30GRILLE-FRT
312314064 Whirlpool Refrigerator Drain Tube
32WP965173 Whirlpool Dishwasher Screw
33W11624204 Whirlpool Screw
342006617 Whirlpool Refrigerator Bracket
352215938 Whirlpool Refrigerator Switch Cover
36WP2316859 Whirlpool Refrigerator Bushing
37W10167456 Whirlpool Harness Switch
38WP2260503B Whirlpool Refrigerator Button
39AW11457217 Whirlpool Refrigerator Rocker Switch Combination
39W11384469 Whirlpool Door Switch
40WP8281163 Whirlpool Refrigerator Screw
412005032 Whirlpool Refrigerator Leveler
42WPW10141604 Whirlpool Screw
432006616 Whirlpool Refrigerator Bracket
43A2006556 Whirlpool Refrigerator Bracket
