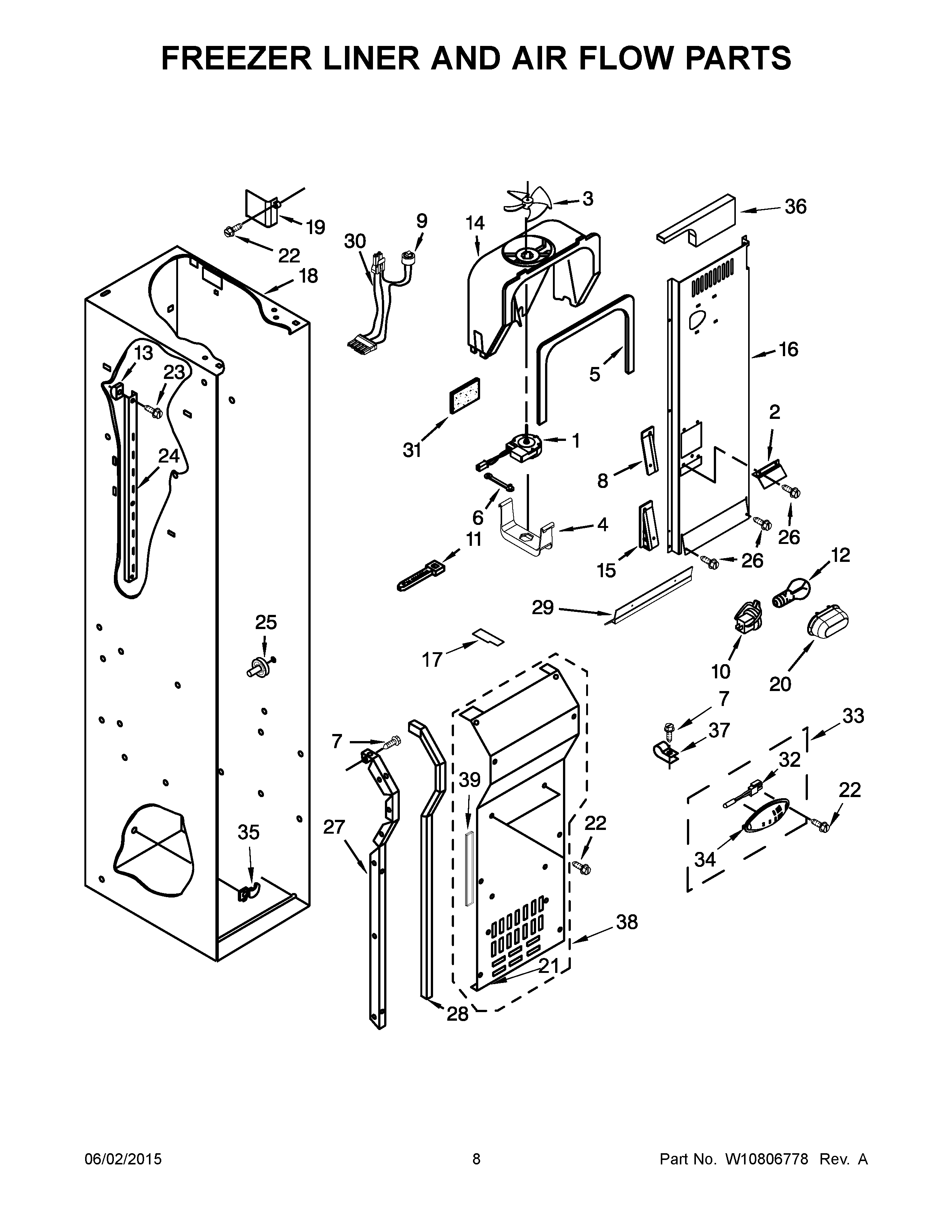

KBSN508ESS00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11671461 Whirlpool Evaporator Motor
22266801 Whirlpool Refrigerator Deflector
3WP2169142 Whirlpool Fan Blade
4W11671527 Whirlpool Retainer Assembly
5WP2302817 Whirlpool Refrigerator Gasket
6GROMMET, MOTOR
7W11624204 Whirlpool Screw
82259464 Whirlpool Refrigerator Wedge
9WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
10WPW10191429 Whirlpool Refrigerator Socket
11WPW10339879 Whirlpool Wire Tie
12WPA3073101 Whirlpool Light Bulb
132259445 Whirlpool Support Assembly
14WP2182120 Whirlpool Refrigerator Scroll Fan
152259465 Whirlpool Refrigerator Wedge
16Air Duct
172209066 Whirlpool Refrigerator Fan Block
17A8201798 Whirlpool Refrigerator Fan Block
18CABINET (NOT A SERVICEABLE PART)
192259025 Whirlpool Refrigerator Air Cover
20Light Shield
21COVER, EVAPORATOR
22WP488729 Whirlpool Refrigerator Door Screw
232006475 Whirlpool Refrigerator Screw
24WP2259032 Whirlpool Ladder
25W11527119 Whirlpool Refrigerator Shelf Stud
26WPW10142283 Whirlpool Refrigerator Screw
27Evaporator, Cover Rail (Left Side)
27A2259355 Whirlpool Refrigerator Evaporator Rail
282220904 Whirlpool Refrigerator Gasket
292302851 Whirlpool Support
30W11676572 Whirlpool Refrigerator Wire Harness
31W11553819 Whirlpool Refrigerator Insulation
32WP2188820 Whirlpool Refrigerator Thermistor
34WP2317844 Whirlpool Refrigerator Cover
351112260 Whirlpool EV Support
36Deflector, Air Duct
37W10833902 Whirlpool Refrigerator Clamp
38ASSEMBLY, EVAPORATOR COVER
39GASKET, EVAPORATOR COVER
