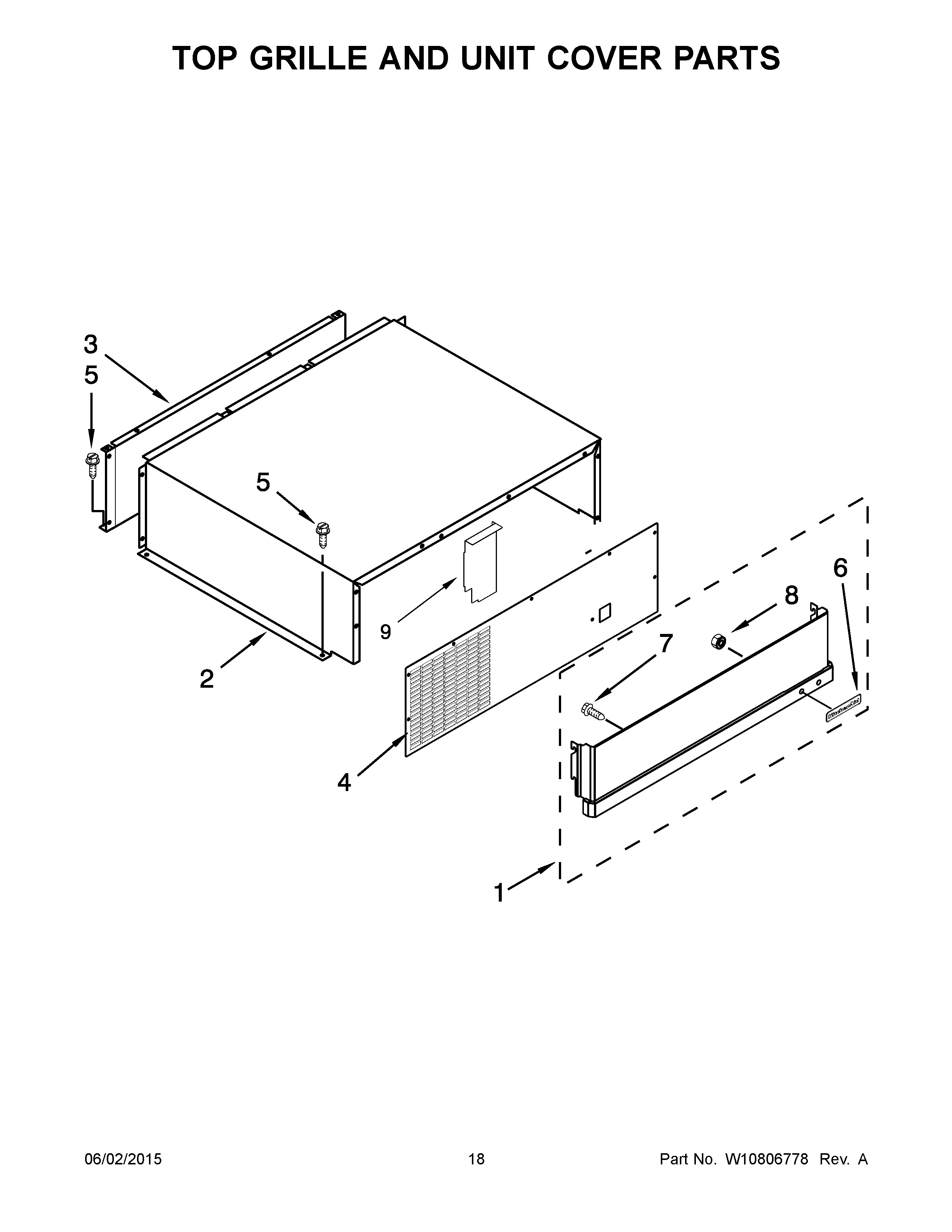

KBSN508ESS00 10 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1W10321107 Whirlpool Refrigerator Upper Grill
2W10545068 Whirlpool Refrigerator Unit Cover
32256466 Whirlpool Refrigerator Unit Cover
4W10694109 Whirlpool Refrigerator Cover Unit
5WP489069 Whirlpool Compactor Screw
6NAMEPLATE
7WP489399 Whirlpool Refrigerator Screw
8WP2004333 Whirlpool Refrigerator Nut
9W10645086 Whirlpool Refrigerator Divider
