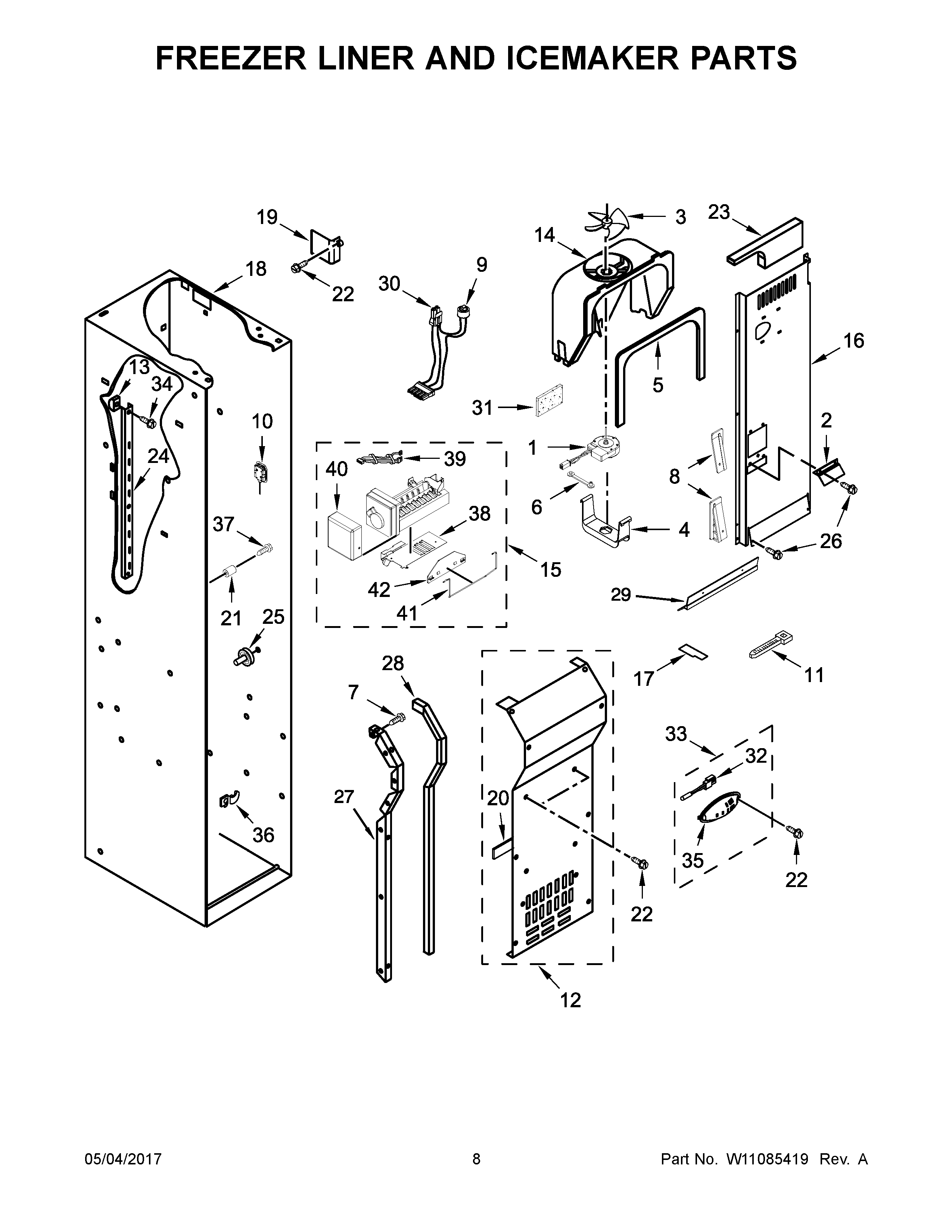

KBSN602EBS01 05 – FREEZER LINER AND ICEMAKER PARTS

KBSN602EBS01 05 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

KBSN602EBS01 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1W11671461 Whirlpool Evaporator Motor
22266801 Whirlpool Refrigerator Deflector
3WP2169142 Whirlpool Fan Blade
4W11671527 Whirlpool Retainer Assembly
5WP2302817 Whirlpool Refrigerator Gasket
6GROMMET, MOTOR
7W11624204 Whirlpool Screw
82259465 Whirlpool Refrigerator Wedge
8A2259464 Whirlpool Refrigerator Wedge
9WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
10W11683242 Whirlpool Refrigerator LED Light Module
11WPW10339879 Whirlpool Wire Tie
12ASSEMBLY, EVAPORATOR COVER
132259445 Whirlpool Support Assembly
14WP2182120 Whirlpool Refrigerator Scroll Fan
15W11082613 Whirlpool Refrigerator Icemaker
16Air Duct
17A8201798 Whirlpool Refrigerator Fan Block
172209066 Whirlpool Refrigerator Fan Block
18CABINET (NOT A SERVICEABLE PART)
192259025 Whirlpool Refrigerator Air Cover
20GASKET, EVAPORATOR COVER
212266955 Whirlpool Spacer
22WP488729 Whirlpool Refrigerator Door Screw
23Deflector, Air Duct
24WP2259032 Whirlpool Ladder
25W11527119 Whirlpool Refrigerator Shelf Stud
26WPW10142283 Whirlpool Refrigerator Screw
27Evaporator, Cover Rail (Left Side)
27A2259355 Whirlpool Refrigerator Evaporator Rail
282220904 Whirlpool Refrigerator Gasket
292302850 Whirlpool Refrigerator Support
30W11676572 Whirlpool Refrigerator Wire Harness
31W11553819 Whirlpool Refrigerator Insulation
32WP2188820 Whirlpool Refrigerator Thermistor
34SCREW
35WP2317844 Whirlpool Refrigerator Cover
361112260 Whirlpool EV Support
37WP3400886 Whirlpool Refrigerator Screw
38WP2221231 Whirlpool Refrigerator Shield
39W10508673 Whirlpool Refrigerator Wire Harness
40WPW10289690 Whirlpool Ice Maker Cover
41W11342242 Whirlpool Refrigerator Ice Level Arm
42W11215550 Whirlpool Ice Level Arm
