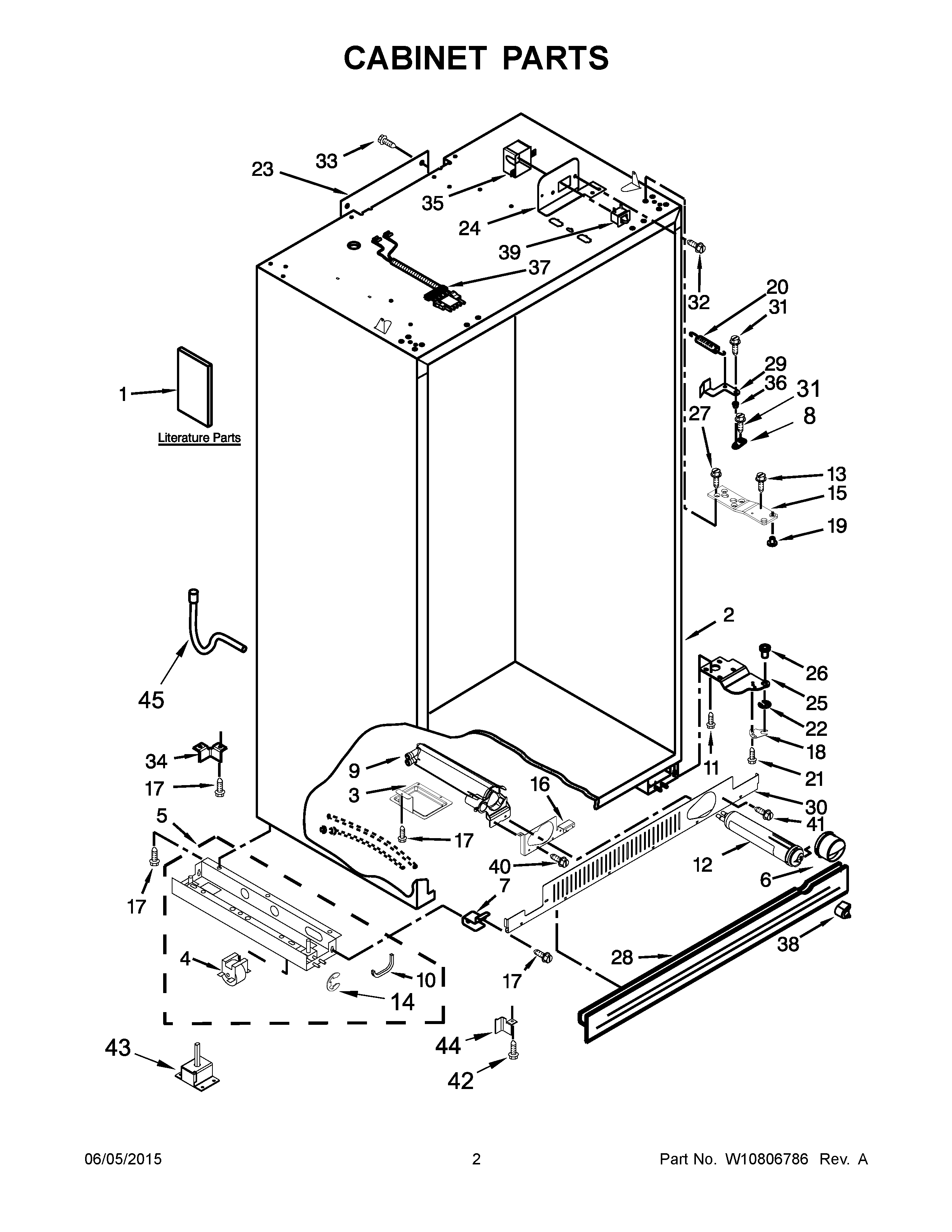

KBSN602EPA00 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
1AENERGY GUIDE (KBSN602ESS*)
1DINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
32318189 Whirlpool Refrigerator Drip Pan
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5AW10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
6WP2260518B Whirlpool Water Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
8WP2320509 Whirlpool Refrigerator Door Cam
9WPW10121140 Whirlpool Refrigerator Housing
102307584 Whirlpool Refrigerator Grommet
11Screw
12FILTER 3-SINGLE TEAL
13WP8281164 Whirlpool Refrigerator Screw
142006841 Whirlpool Ring
152252291 Whirlpool Refrigerator Door Hinge
15A2252292 Whirlpool Refrigerator Door Hinge
16W10674648 Whirlpool Refrigerator Bracket
17WP489464 Whirlpool Refrigerator Screw
18WP2004994 Whirlpool Refrigerator Hinge Bushing
19W11500952 Whirlpool Refrigerator Hinge Bushing
20WP2004517 Whirlpool Refrigerator Spring
21SCREW
22WP489236 Whirlpool Refrigerator Ring
232215612 Whirlpool Refrigerator Duct Cover
24W10741112 Whirlpool Refrigerator Bracket
24AW10741111 Whirlpool Refrigerator Bracket
25A2309471 Whirlpool Refrigerator Door Hinge
252309472 Whirlpool Refrigerator Hinge
26WP2302876 Whirlpool Refrigerator Hinge Bushing
27W11189635 Whirlpool Refrigerator Screw
28WPW10188549 Whirlpool Refrigerator Front Grille
29W11416733 Whirlpool Refrigerator Extension
29AW11418227 Whirlpool Refrigerator Extension
30WPW10182717 Whirlpool Refrigerator Front Grille
31W11177574 Whirlpool Refrigerator Screw
32WP965173 Whirlpool Dishwasher Screw
33W11624204 Whirlpool Screw
342006617 Whirlpool Refrigerator Bracket
352215938 Whirlpool Refrigerator Switch Cover
36WP2316859 Whirlpool Refrigerator Bushing
37W10780213 Whirlpool Harness Switch
38WP2260503B Whirlpool Refrigerator Button
39AW11457217 Whirlpool Refrigerator Rocker Switch Combination
39W11384469 Whirlpool Door Switch
40WP8281163 Whirlpool Refrigerator Screw
42WPW10141604 Whirlpool Screw
432005032 Whirlpool Refrigerator Leveler
44A2006556 Whirlpool Refrigerator Bracket
442006616 Whirlpool Refrigerator Bracket
452314064 Whirlpool Refrigerator Drain Tube
