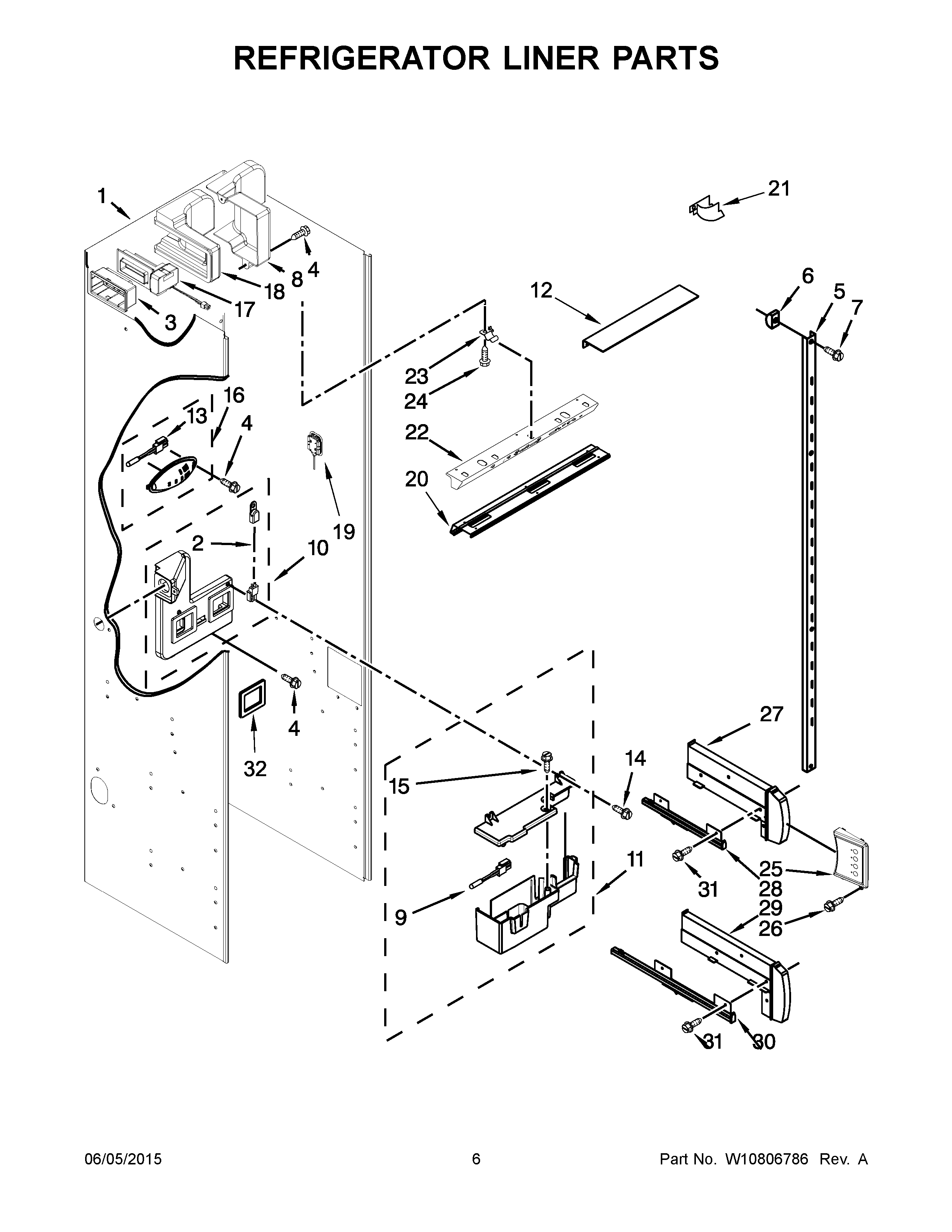

KBSN602EPA00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2306010 Whirlpool Refrigerator Thermistor
32208970 Whirlpool Refrigerator Air Duct
4WP488729 Whirlpool Refrigerator Door Screw
5WP2259077 Whirlpool Ladder Assembly
6520965 Whirlpool Refrigerator Support
72006475 Whirlpool Refrigerator Screw
82309087 Whirlpool Refrigerator Cover
9WP2302937 Whirlpool Refrigerator Thermistor
10W10475010 Whirlpool Refrigerator Spacer
11WPW10169528 Whirlpool Refrigerator Diffuser
12Diverter, Crisper
13WP2188820 Whirlpool Refrigerator Thermistor
15W11624204 Whirlpool Screw
16WP2317844 Whirlpool Refrigerator Cover
17WP2221296 Whirlpool Air Baffle
18WP2309222 Whirlpool Refrigerator Diffuser
19W11683242 Whirlpool Refrigerator LED Light Module
20Bracket, Control Box
212003577 Whirlpool Refrigerator Guard
22W10798006 Whirlpool Refrigerator Control Box
23Clip, Control Box
24WP8281163 Whirlpool Refrigerator Screw
25W10814805-includeCORE Whirlpool W10814805 Refrigerator Electronic Control Board + Core
26WPW10142283 Whirlpool Refrigerator Screw
272256243 Whirlpool Refrigerator Track
27A2256244 Whirlpool Refrigerator Track
28A2302955 Whirlpool Refrigerator Slide
282302954 Whirlpool Refrigerator Slide
29A2256222 Whirlpool Refrigerator Track
292256223 Whirlpool Refrigerator Track
302302956 Whirlpool Refrigerator Slide
30A2302957 Whirlpool Refrigerator Slide
31AWP3400886 Whirlpool Refrigerator Screw
31WP8533928 Whirlpool Refrigerator Screw
322259398 Whirlpool Refrigerator Seal
