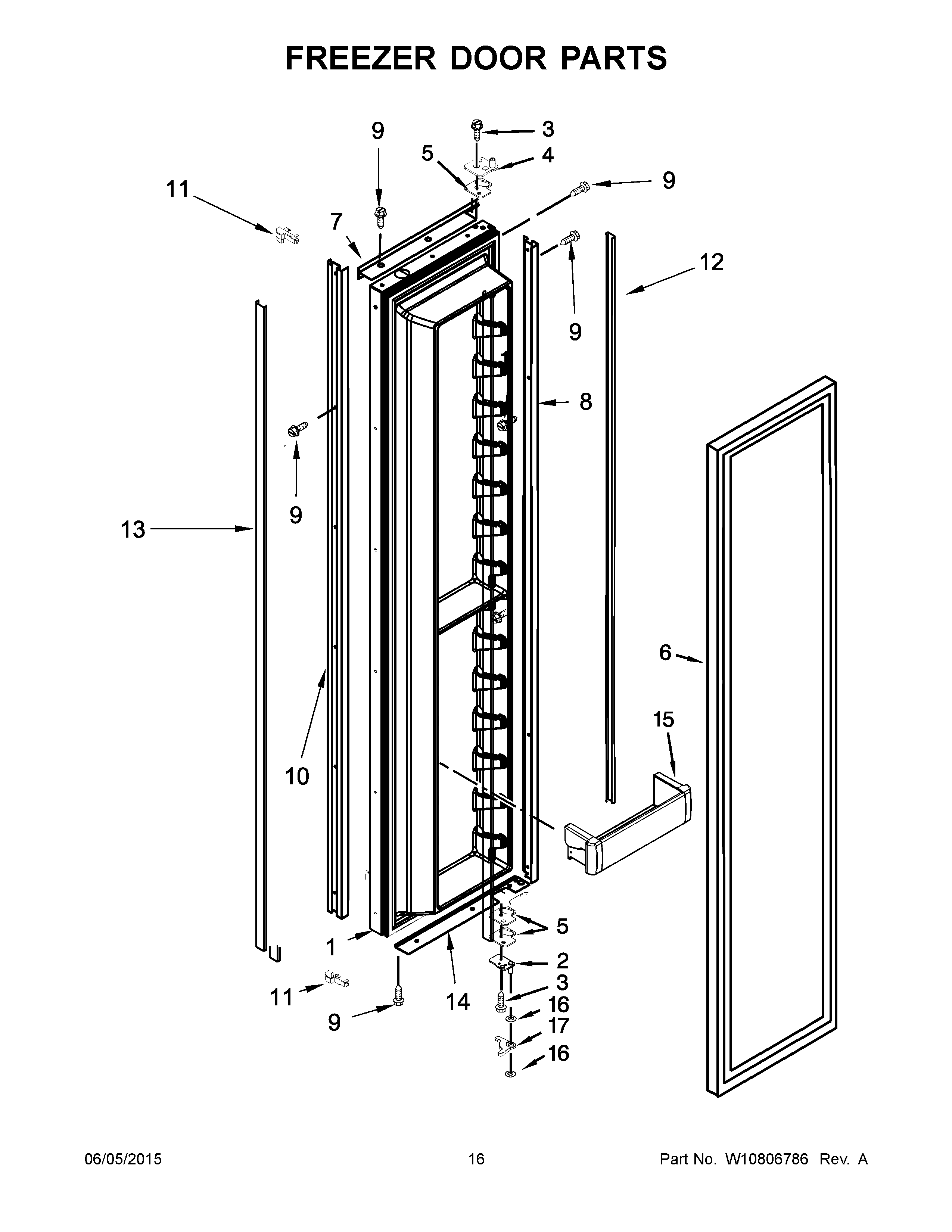

KBSN602EPA00 09 – FREEZER DOOR PARTS

KBSN602EPA00 09 – FREEZER DOOR PARTS

Written by

in

KBSN602EPA00 09 – FREEZER DOOR PARTS

Products

PositionProduct
1W10800794 Whirlpool Refrigerator Stainless Steel Door Assembly
22252294 Whirlpool Refrigerator Door Hinge
3W11474472 Whirlpool Screw
4W10484480 Whirlpool Refrigerator Door Hinge
5W11673500 Whirlpool Door Hinge
6W11625082 Whirlpool Refrigerator FIP Gasket
72309489S Whirlpool Refrigerator Door Trim
82309498S Whirlpool Refrigerator Door Trim
9WP8281250 Whirlpool Refrigerator Screw
102309497S Whirlpool Refrigerator Door Trim
112207457 Whirlpool Refrigerator Door Trim
122259448S Whirlpool Refrigerator Trim Cover
132314003S Whirlpool Refrigerator Trim Cover
142309495S Whirlpool Door Trim
15W10323602 Whirlpool Refrigerator Cantilever Bin
16WP2006346 Whirlpool Refrigerator Washer
17W11700297 Whirlpool Refrigerator Gap Hinge
