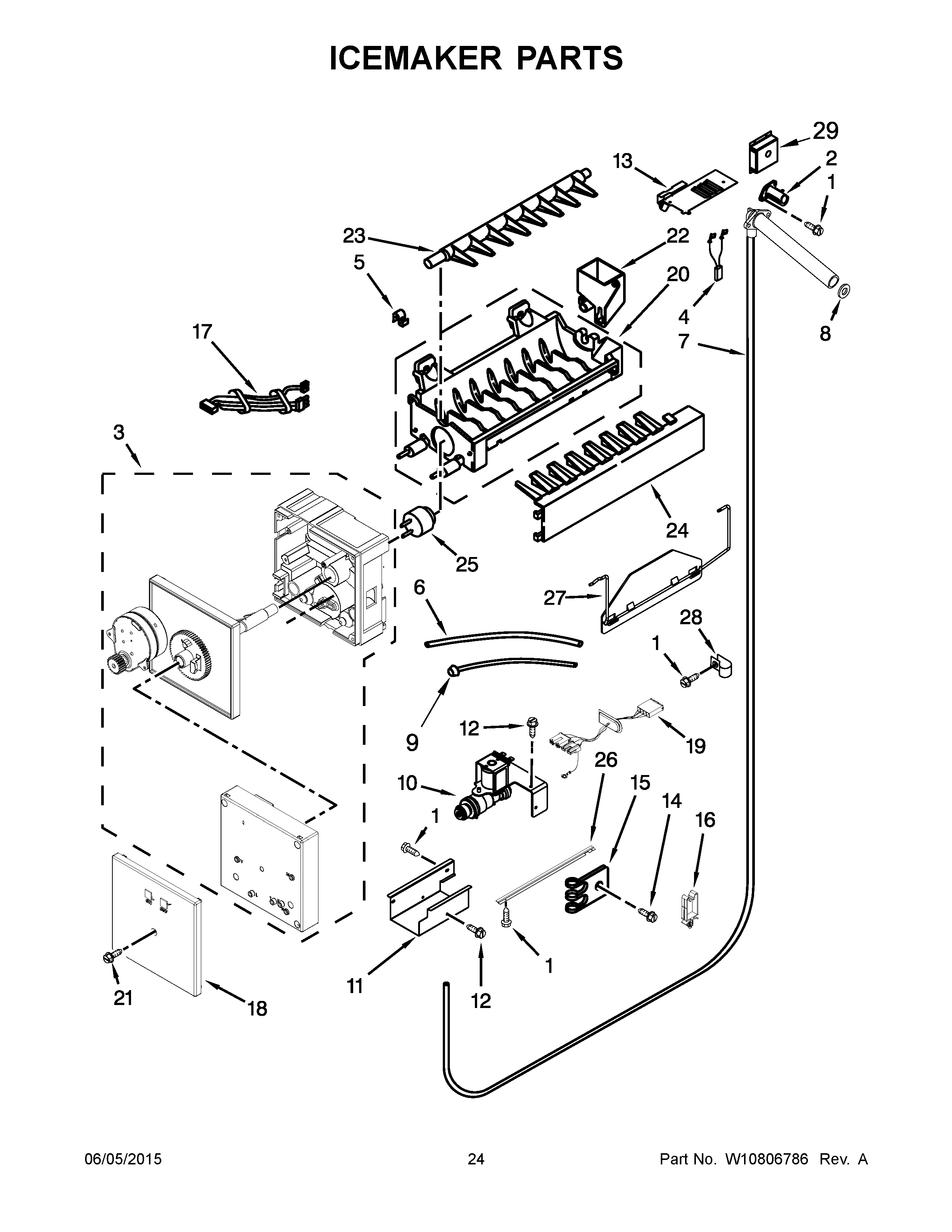

KBSN602EPA00 13 – ICEMAKER PARTS

Products

Position	Product
NI	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
NI	ACCESSORIES, SS CLEANER
NI	ACCESSORIES, KITCHEN & APPLIANCE CLEANER
NI	CABINET (NOT A SERVICEABLE PART)
1	W11624204 Whirlpool Screw
2	WP2221240 Whirlpool Refrigerator Heater
3	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
4	W10482373 Whirlpool Refrigerator Jumper Wire
5	WP628379 Whirlpool Refrigerator Clip
6	W11565275 Whirlpool Refrigerator Water Tube
7	W11662302 Whirlpool Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	VALVE-INLT REFR
11	Shield, Valve
12	WP489128 Whirlpool Refrigerator Screw
13	WP2221231 Whirlpool Refrigerator Shield
14	WP489464 Whirlpool Refrigerator Screw
15	WP488366 Whirlpool Refrigerator Clamp
16	CLIP, TUBE
17	W10508673 Whirlpool Refrigerator Wire Harness
18	WPW10289690 Whirlpool Ice Maker Cover
19	W10279393 Whirlpool Refrigerator Wire Harness
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	WP3395530 Whirlpool Screw
22	W11676540 Whirlpool Refrigerator Cup Fill
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10788834 Whirlpool Strip Arm
25	WP627985 Whirlpool Icemaker Cycling Thermostat
26	Support, Valve
27	W11342242 Whirlpool Refrigerator Ice Level Arm
28	W10833902 Whirlpool Refrigerator Clamp
29	Cover, Fill Tube Heater
100	WPW10277450 Whirlpool Refrigerator Icemaker
