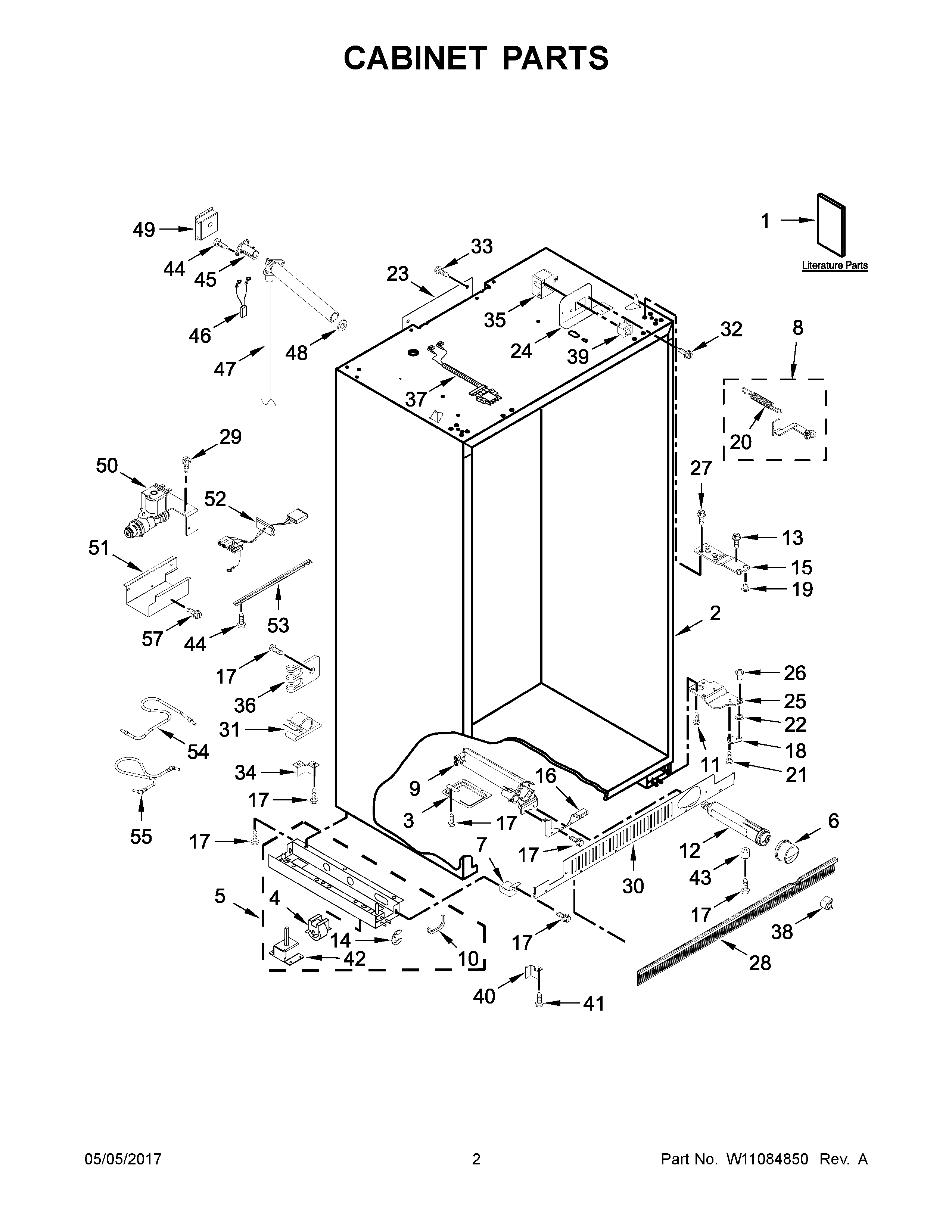

KBSN602EPA01 02 – CABINET PARTS

KBSN602EPA01 02 – CABINET PARTS

Written by

in

KBSN602EPA01 02 – CABINET PARTS

Products

PositionProduct
1ETECH SHEET (FRENCH)
1DTECH SHEET (ENGLISH)
1CWIRING DIAGRAM
1BENERGY GUIDE (KBSN602ESS*)
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
32318189 Whirlpool Refrigerator Drip Pan
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860229 Whirlpool Refrigerator Support
5AW10860448 Whirlpool Refrigerator Support
6W11238395 Whirlpool Refrigerator Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
8A2324874 Whirlpool Refrigerator Extension
8W10121047 Whirlpool Refrigerator Extension
9WPW10121140 Whirlpool Refrigerator Housing
102307584 Whirlpool Refrigerator Grommet
11Screw
12FILTER 3-SINGLE TEAL
13WP8281164 Whirlpool Refrigerator Screw
142006841 Whirlpool Ring
15A2252292 Whirlpool Refrigerator Door Hinge
152252291 Whirlpool Refrigerator Door Hinge
16W10674648 Whirlpool Refrigerator Bracket
17WP489464 Whirlpool Refrigerator Screw
18WP2004994 Whirlpool Refrigerator Hinge Bushing
19W11500952 Whirlpool Refrigerator Hinge Bushing
20WP2004517 Whirlpool Refrigerator Spring
21SCREW
22WP489236 Whirlpool Refrigerator Ring
232215612 Whirlpool Refrigerator Duct Cover
24W10741112 Whirlpool Refrigerator Bracket
24AW10741111 Whirlpool Refrigerator Bracket
25A2309471 Whirlpool Refrigerator Door Hinge
252309472 Whirlpool Refrigerator Hinge
26WP2302876 Whirlpool Refrigerator Hinge Bushing
27W11189635 Whirlpool Refrigerator Screw
28WPW10188549 Whirlpool Refrigerator Front Grille
29WP489128 Whirlpool Refrigerator Screw
30WPW10182717 Whirlpool Refrigerator Front Grille
31CLIP
32WP965173 Whirlpool Dishwasher Screw
33WP1163283 Whirlpool Air Conditioner Screw
342006617 Whirlpool Refrigerator Bracket
352215938 Whirlpool Refrigerator Switch Cover
36WP488366 Whirlpool Refrigerator Clamp
37W10780213 Whirlpool Harness Switch
38WP2260503B Whirlpool Refrigerator Button
39AW11457217 Whirlpool Refrigerator Rocker Switch Combination
39W11384469 Whirlpool Door Switch
40A2006556 Whirlpool Refrigerator Bracket
402006616 Whirlpool Refrigerator Bracket
41WPW10141604 Whirlpool Screw
422005032 Whirlpool Refrigerator Leveler
432005433 Whirlpool Refrigerator Spacer
44W11624204 Whirlpool Screw
45WP2221240 Whirlpool Refrigerator Heater
46W10482373 Whirlpool Refrigerator Jumper Wire
47W11662302 Whirlpool Water Tube
48WP1106508 Whirlpool Refrigerator Gasket
49Cover, Fill Tube Heater
50VALVE-INLT REFR
51Shield, Valve
52W10279393 Whirlpool Refrigerator Wire Harness
53Support, Valve
54W11565275 Whirlpool Refrigerator Water Tube
55W11533506 Whirlpool Refrigerator Water Tube
