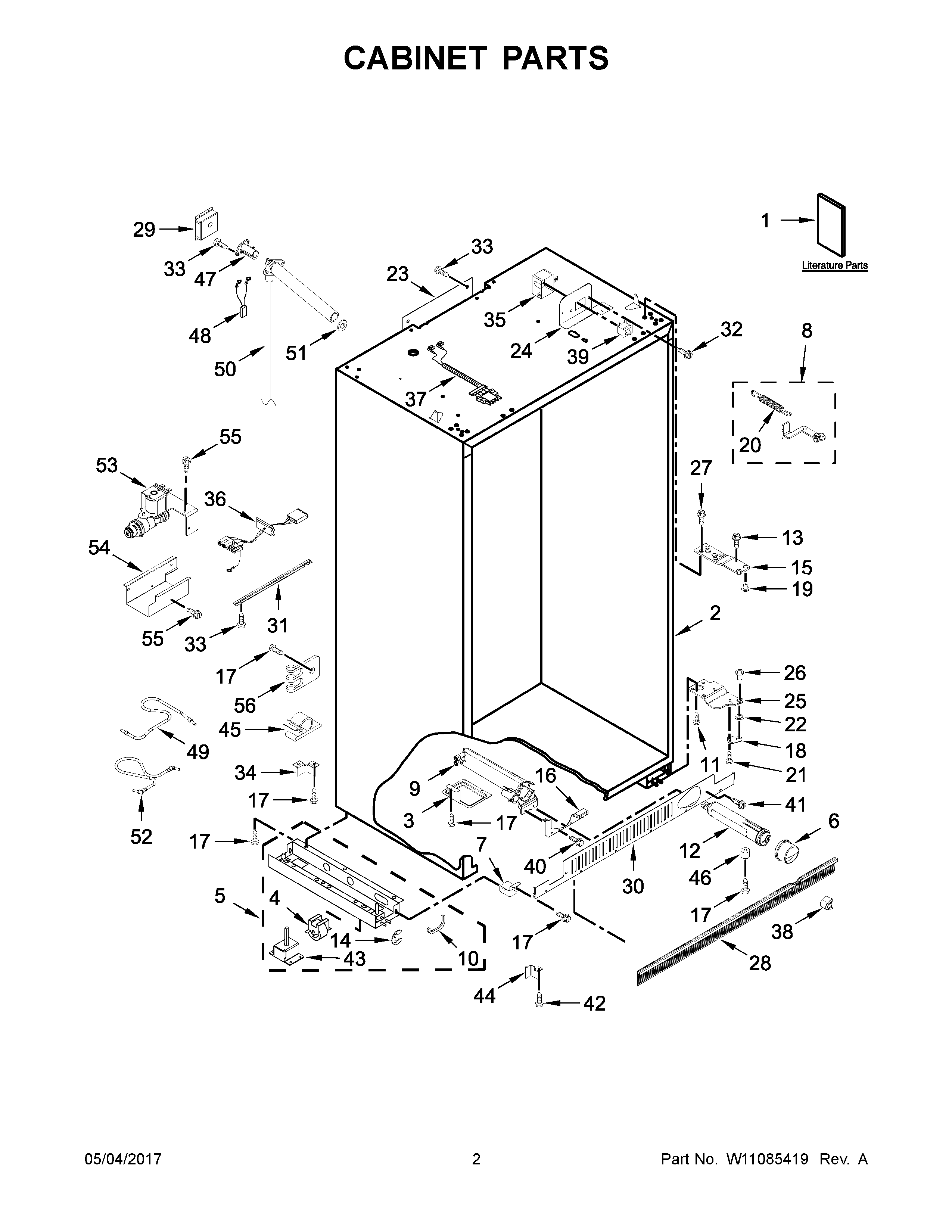

KBSN602ESS01 02 – CABINET PARTS

KBSN602ESS01 02 – CABINET PARTS

Written by

in

KBSN602ESS01 02 – CABINET PARTS

Products

PositionProduct
1DTECH SHEET (FRENCH)
1USE AND CARE GUIDE
1EINSTALLATION INSTRUCTIONS
1AENERGY GUIDE (KBSN602EBS*)
1BENERGY GUIDE (KBSN602ESS*)
1FWIRING DIAGRAM
1CTECH SHEET (ENGLISH)
2CABINET (NOT A SERVICEABLE PART)
32318189 Whirlpool Refrigerator Drip Pan
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5AW10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
6W11238395 Whirlpool Refrigerator Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
8AWP2307857 Whirlpool Refrigerator Extension
8WPW10121046 Whirlpool Refrigerator Extension
9WPW10121140 Whirlpool Refrigerator Housing
102307584 Whirlpool Refrigerator Grommet
11Screw
12FILTER 3-SINGLE TEAL
13WP8281164 Whirlpool Refrigerator Screw
142006841 Whirlpool Ring
152257644 Whirlpool Refrigerator Door Hinge
16W10674648 Whirlpool Refrigerator Bracket
17WP489464 Whirlpool Refrigerator Screw
18WP2004994 Whirlpool Refrigerator Hinge Bushing
19W11500952 Whirlpool Refrigerator Hinge Bushing
20WP2004517 Whirlpool Refrigerator Spring
21SCREW
22WP489236 Whirlpool Refrigerator Ring
232215612 Whirlpool Refrigerator Duct Cover
24W10741112 Whirlpool Refrigerator Bracket
24AW10741111 Whirlpool Refrigerator Bracket
25AWP2006780 Whirlpool Refrigerator Door Hinge
25W10527053 Whirlpool Refrigerator Door Hinge
26WP2302876 Whirlpool Refrigerator Hinge Bushing
27W11189635 Whirlpool Refrigerator Screw
28WPW10188549 Whirlpool Refrigerator Front Grille
29Cover, Fill Tube Heater
30WPW10182717 Whirlpool Refrigerator Front Grille
31Support, Valve
32WP965173 Whirlpool Dishwasher Screw
33W11624204 Whirlpool Screw
342006617 Whirlpool Refrigerator Bracket
352215938 Whirlpool Refrigerator Switch Cover
36W10279393 Whirlpool Refrigerator Wire Harness
37W10780213 Whirlpool Harness Switch
38WP2260503B Whirlpool Refrigerator Button
39W11384469 Whirlpool Door Switch
39AW11457217 Whirlpool Refrigerator Rocker Switch Combination
40WP8281163 Whirlpool Refrigerator Screw
42WPW10141604 Whirlpool Screw
432005032 Whirlpool Refrigerator Leveler
442006616 Whirlpool Refrigerator Bracket
44A2006556 Whirlpool Refrigerator Bracket
45CLIP
462005433 Whirlpool Refrigerator Spacer
47WP2221240 Whirlpool Refrigerator Heater
48W10482373 Whirlpool Refrigerator Jumper Wire
49W11565275 Whirlpool Refrigerator Water Tube
50W11662302 Whirlpool Water Tube
51WP1106508 Whirlpool Refrigerator Gasket
52W11533506 Whirlpool Refrigerator Water Tube
53VALVE-INLT REFR
54Shield, Valve
55WP489128 Whirlpool Refrigerator Screw
56WP488366 Whirlpool Refrigerator Clamp
