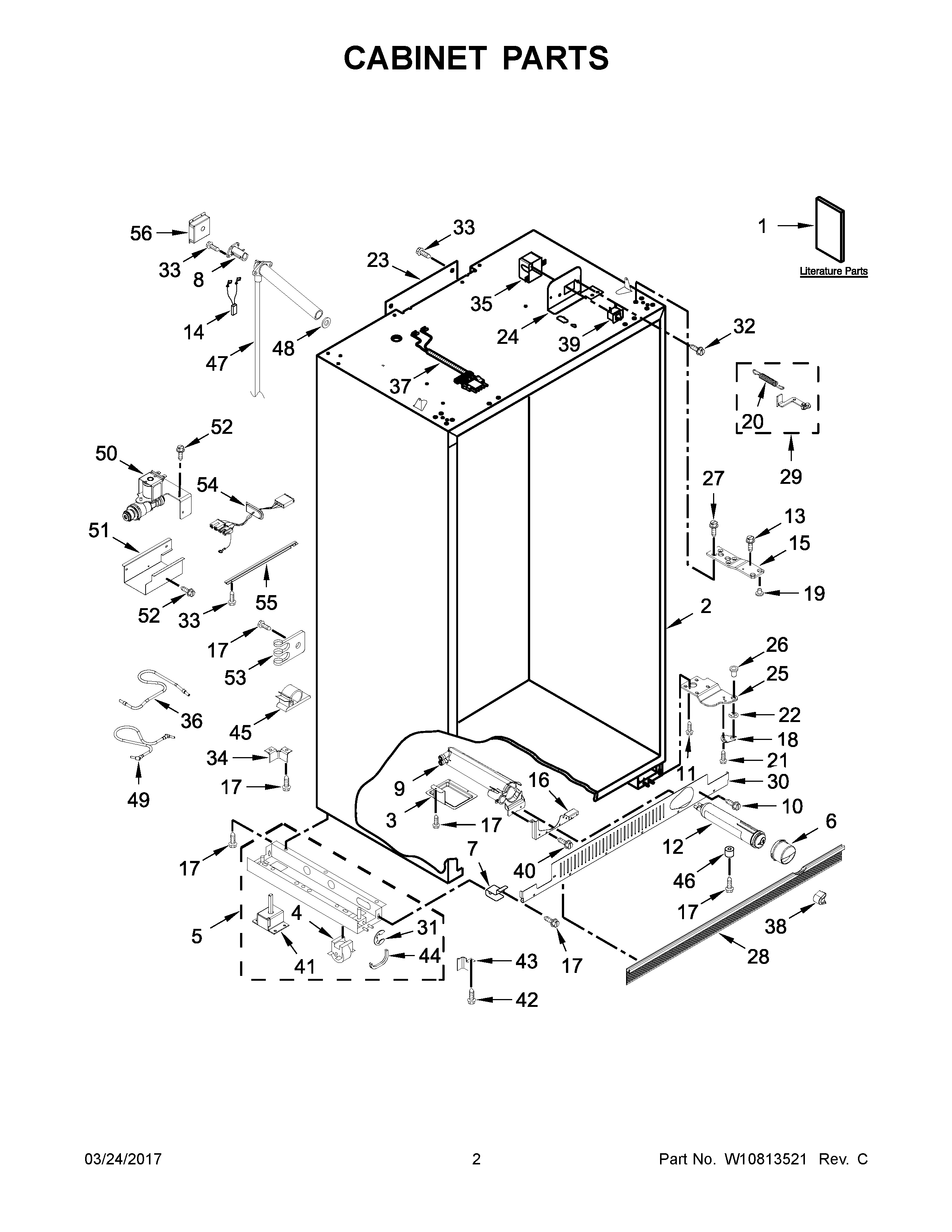

KBSN608EBS00 02 – CABINET PARTS

KBSN608EBS00 02 – CABINET PARTS

Written by

in

KBSN608EBS00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE KBSN608EBS01
1BENERGY GUIDE
1EWIRING DIAGRAM
1DTECH SHEET (FRENCH)
1CTECH SHEET (ENGLISH)
1FINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
32318189 Whirlpool Refrigerator Drip Pan
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5AW10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
6W11238395 Whirlpool Refrigerator Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
8WP2221240 Whirlpool Refrigerator Heater
9WPW10121140 Whirlpool Refrigerator Housing
11Screw
12FILTER 3-SINGLE TEAL
13WP8281164 Whirlpool Refrigerator Screw
14W10482373 Whirlpool Refrigerator Jumper Wire
152257644 Whirlpool Refrigerator Door Hinge
16W10674648 Whirlpool Refrigerator Bracket
17WP489464 Whirlpool Refrigerator Screw
18WP2004994 Whirlpool Refrigerator Hinge Bushing
19W11500952 Whirlpool Refrigerator Hinge Bushing
20WP2004517 Whirlpool Refrigerator Spring
21SCREW
22WP489236 Whirlpool Refrigerator Ring
232215612 Whirlpool Refrigerator Duct Cover
24W10741112 Whirlpool Refrigerator Bracket
24AW10741111 Whirlpool Refrigerator Bracket
24WPW10686115 Whirlpool Refrigerator Gasket
25AWP2006780 Whirlpool Refrigerator Door Hinge
25W10527053 Whirlpool Refrigerator Door Hinge
26WP2302876 Whirlpool Refrigerator Hinge Bushing
27W11189635 Whirlpool Refrigerator Screw
28W10859915 Whirlpool Grille
29WPW10121046 Whirlpool Refrigerator Extension
29AWP2307857 Whirlpool Refrigerator Extension
30GRILLE-FRT
312006841 Whirlpool Ring
32WP965173 Whirlpool Dishwasher Screw
33W11624204 Whirlpool Screw
342006617 Whirlpool Refrigerator Bracket
352215938 Whirlpool Refrigerator Switch Cover
36W11565275 Whirlpool Refrigerator Water Tube
37W10780213 Whirlpool Harness Switch
38WP2260503B Whirlpool Refrigerator Button
39W11384469 Whirlpool Door Switch
39AW11457217 Whirlpool Refrigerator Rocker Switch Combination
40WP8281163 Whirlpool Refrigerator Screw
412005032 Whirlpool Refrigerator Leveler
42WPW10141604 Whirlpool Screw
432006616 Whirlpool Refrigerator Bracket
43A2006556 Whirlpool Refrigerator Bracket
442307584 Whirlpool Refrigerator Grommet
45CLIP
462005433 Whirlpool Refrigerator Spacer
47W11662302 Whirlpool Water Tube
48WP1106508 Whirlpool Refrigerator Gasket
49W11533506 Whirlpool Refrigerator Water Tube
50VALVE-INLT REFR
51Shield, Valve
52WP489128 Whirlpool Refrigerator Screw
53WP488366 Whirlpool Refrigerator Clamp
54W10279393 Whirlpool Refrigerator Wire Harness
55Support, Valve
56Cover, Fill Tube Heater
