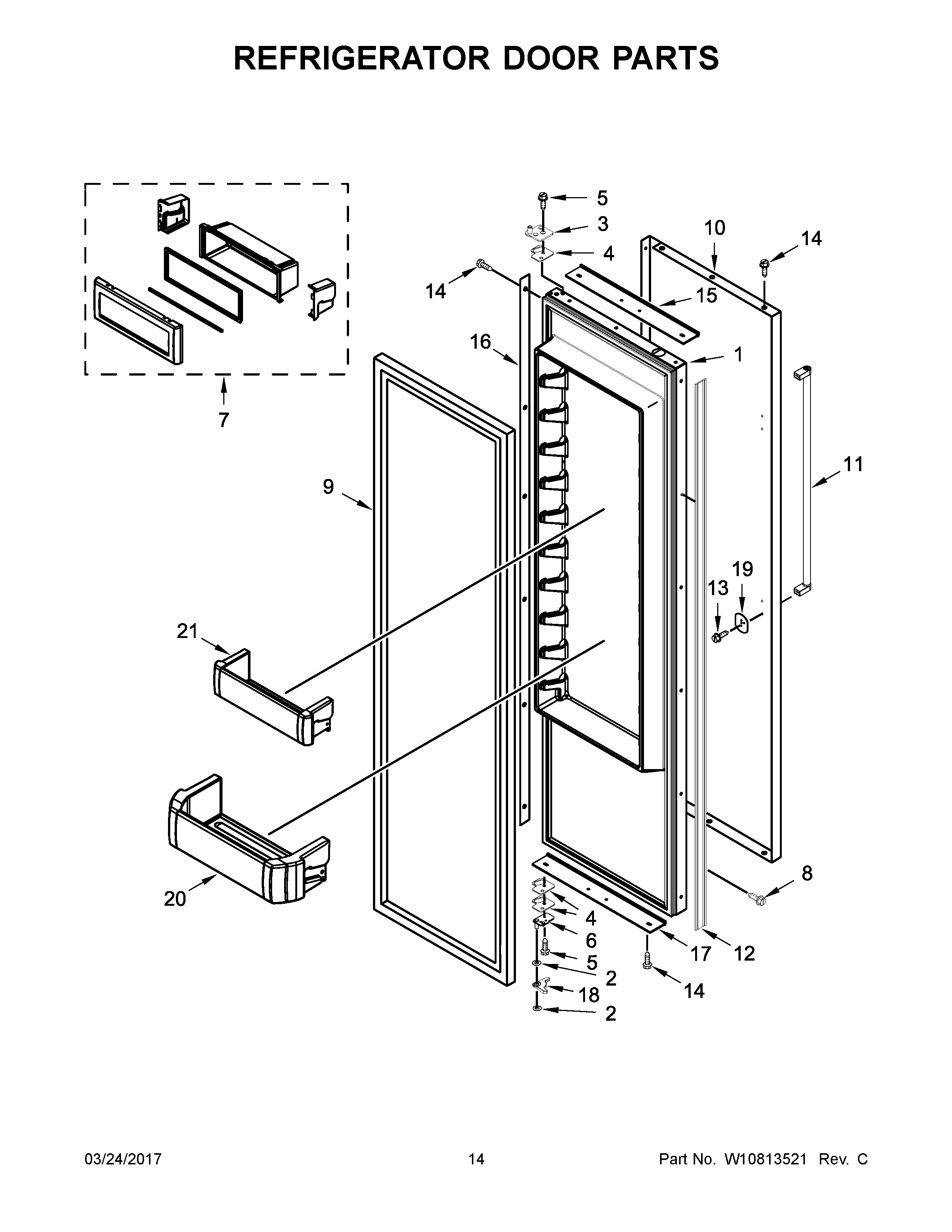

KBSN608EBS00 08 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W10800783 Whirlpool Refrigerator Stainless Steel Door Assembly
2	WP2006346 Whirlpool Refrigerator Washer
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
8	W10759522 Whirlpool Screw
9	W11625077 Whirlpool Refrigerator FIP Gasket
10A	W10800786 Whirlpool Door Assembly
10	W10800787 Whirlpool Refrigerator Door Skin
11	W10783284 Whirlpool Refrigerator Handle
12	W10758113 Whirlpool Refrigerator Spacer
13	WP308544 Whirlpool Screw
14	W10851443 Whirlpool Refrigerator Screw
14A	WP8281250 Whirlpool Refrigerator Screw
15	W10761897 Whirlpool Refrigerator Spacer
16	W10756209 Whirlpool Refrigerator Spacer
17	W10761937 Whirlpool Refrigerator Spacer
18	W11700297 Whirlpool Refrigerator Gap Hinge
19	W10127710 Whirlpool Refrigerator Plate
20	W10323748 Whirlpool Refrigerator Cantilever Bin
21	BIN-CNTLVR
