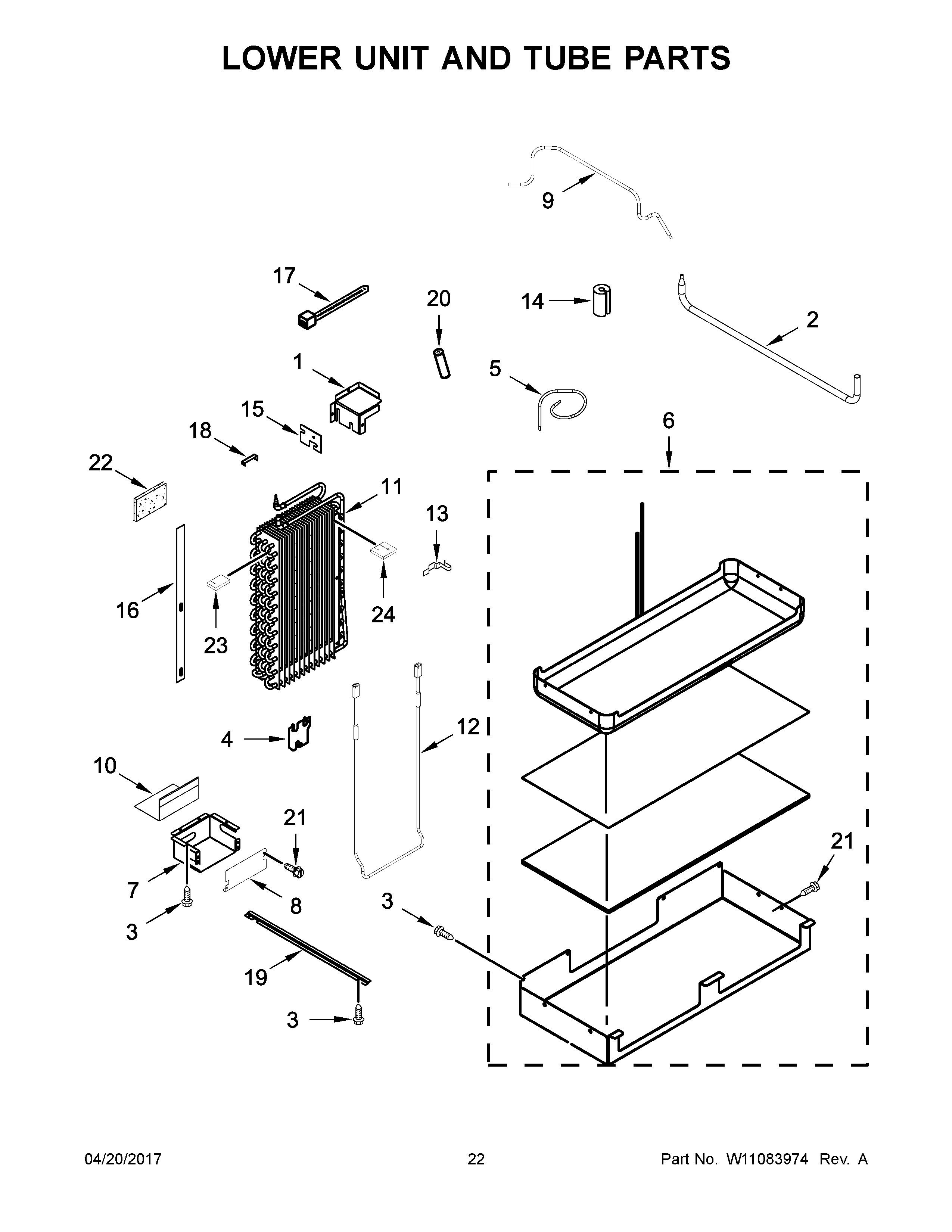

KBSN608EBS01 12 – LOWER UNIT AND TUBE PARTS

KBSN608EBS01 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KBSN608EBS01 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Bracket Assembly, Return Air
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
4W10157752 Whirlpool Bracket
5W10648568 Whirlpool Refrigerator Tube
6WPW10281063 Whirlpool Refrigerator Heater Pan
7WPW10309012 Whirlpool Wire Cover
8WIRE BOX COVER
9W10499597 Whirlpool Refrigerator Tube
10W10321050 Whirlpool Refrigerator Shield
11WPW10427993 Whirlpool Refrigerator Evaporator
12WPW10140162 Whirlpool Refrigerator Heater
131113048 Whirlpool Refrigerator Clamp
14W11715935 Whirlpool Dampener
15W10139908 Whirlpool Seal
16W10432308 Whirlpool Gasket
17WPW10339879 Whirlpool Wire Tie
18W10169509 Whirlpool Refrigerator Clip
192320554 Whirlpool Bracket
202215648 Whirlpool Refrigerator Dampener
21WP489069 Whirlpool Compactor Screw
22W11553819 Whirlpool Refrigerator Insulation
23W10580754 Whirlpool Refrigerator Evaporator Block
24WPW10686115 Whirlpool Refrigerator Gasket
