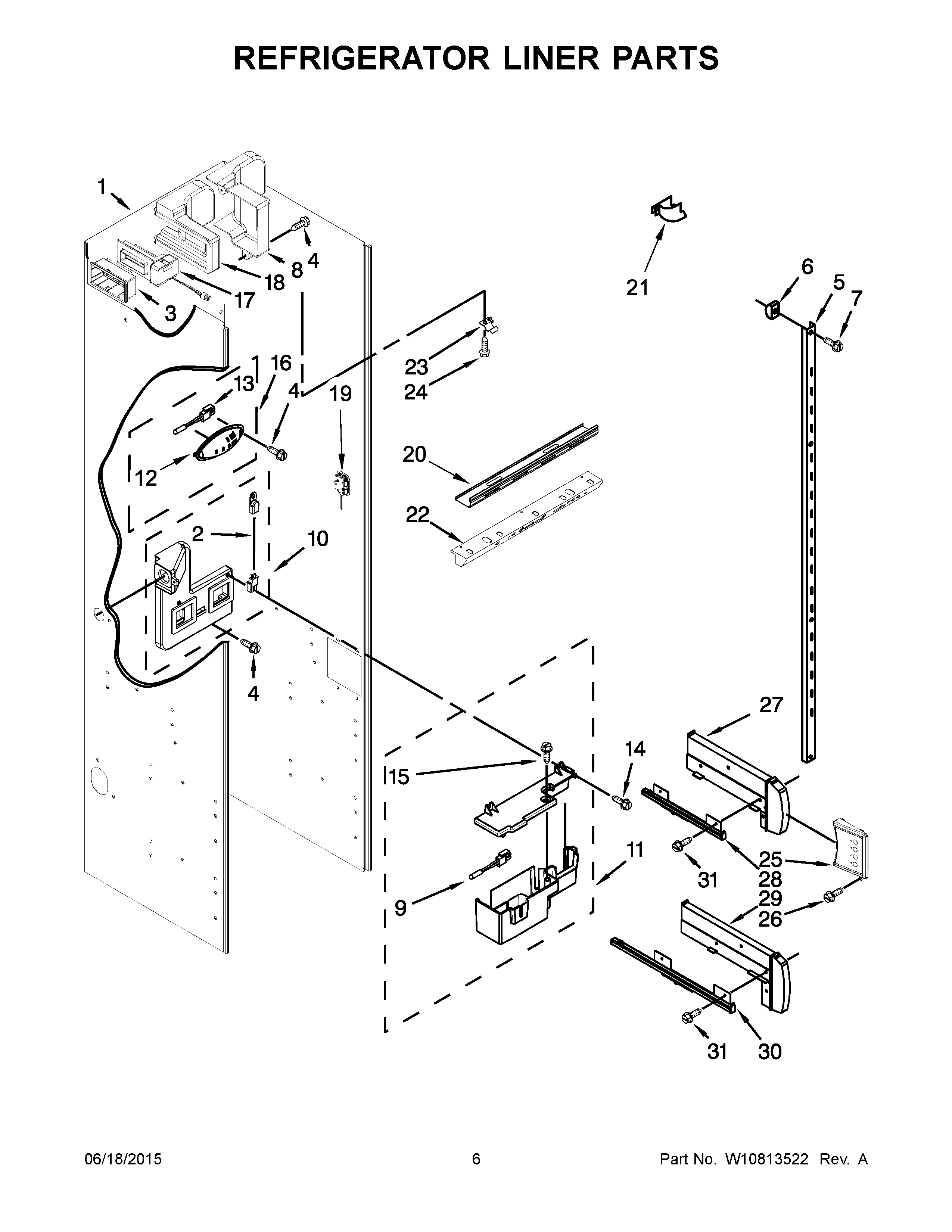

KBSN608EPA00 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2306010 Whirlpool Refrigerator Thermistor
3	2208970 Whirlpool Refrigerator Air Duct
4	WP488729 Whirlpool Refrigerator Door Screw
5	WP2259077 Whirlpool Ladder Assembly
6	520965 Whirlpool Refrigerator Support
7	2006475 Whirlpool Refrigerator Screw
8	2309087 Whirlpool Refrigerator Cover
9	WP2302937 Whirlpool Refrigerator Thermistor
10	W10475010 Whirlpool Refrigerator Spacer
11	WPW10169528 Whirlpool Refrigerator Diffuser
12	WP2317844 Whirlpool Refrigerator Cover
13	WP2188820 Whirlpool Refrigerator Thermistor
15	W11624204 Whirlpool Screw
17	WP2221296 Whirlpool Air Baffle
18	WP2309222 Whirlpool Refrigerator Diffuser
19	W11683242 Whirlpool Refrigerator LED Light Module
20	Bracket, Control Box
21	2003577 Whirlpool Refrigerator Guard
22	W10798007 Whirlpool Refrigerator Control Box
23	Clip, Control Box
24	WP8281163 Whirlpool Refrigerator Screw
25	W10814805-includeCORE Whirlpool W10814805 Refrigerator Electronic Control Board + Core
26	WPW10142283 Whirlpool Refrigerator Screw
27A	2256244 Whirlpool Refrigerator Track
27	2256243 Whirlpool Refrigerator Track
28	2302954 Whirlpool Refrigerator Slide
28A	2302955 Whirlpool Refrigerator Slide
29	2256223 Whirlpool Refrigerator Track
29A	2256222 Whirlpool Refrigerator Track
30	2302956 Whirlpool Refrigerator Slide
30A	2302957 Whirlpool Refrigerator Slide
31	WP8533928 Whirlpool Refrigerator Screw
31A	WP3400886 Whirlpool Refrigerator Screw
