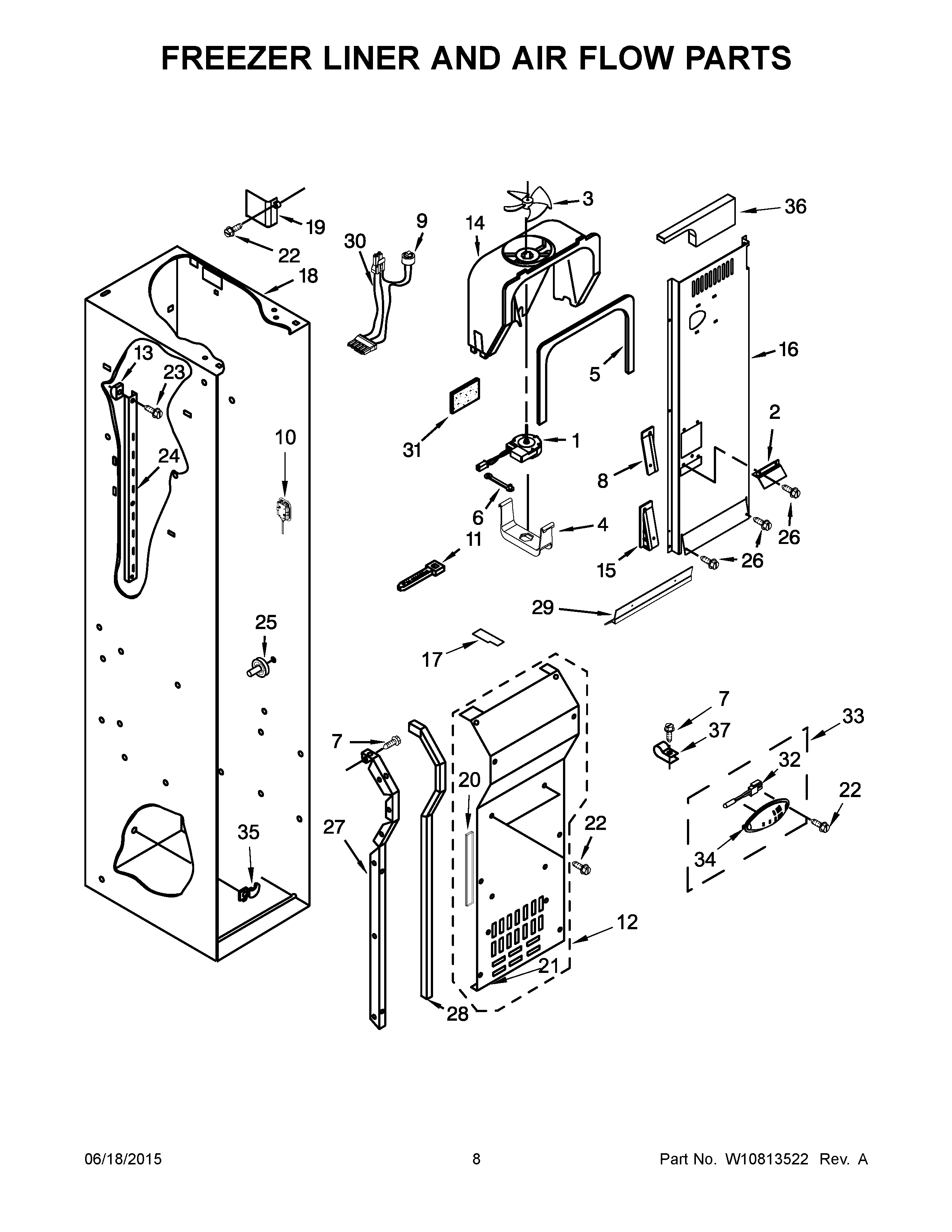

KBSN608EPA00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	W11671461 Whirlpool Evaporator Motor
2	2266801 Whirlpool Refrigerator Deflector
3	WP2169142 Whirlpool Fan Blade
4	W11671527 Whirlpool Retainer Assembly
5	WP2302817 Whirlpool Refrigerator Gasket
6	GROMMET, MOTOR
7	W11624204 Whirlpool Screw
8	2259464 Whirlpool Refrigerator Wedge
9	WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
10	W11683242 Whirlpool Refrigerator LED Light Module
11	WPW10339879 Whirlpool Wire Tie
12	ASSEMBLY, EVAPORATOR COVER
13	2259445 Whirlpool Support Assembly
14	WP2182120 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
16	Air Duct
17	2209066 Whirlpool Refrigerator Fan Block
17A	8201798 Whirlpool Refrigerator Fan Block
18	CABINET (NOT A SERVICEABLE PART)
19	2259025 Whirlpool Refrigerator Air Cover
20	GASKET, EVAPORATOR COVER
21	COVER, EVAPORATOR
22	WP488729 Whirlpool Refrigerator Door Screw
23	2006475 Whirlpool Refrigerator Screw
24	WP2259032 Whirlpool Ladder
25	W11527119 Whirlpool Refrigerator Shelf Stud
26	WPW10142283 Whirlpool Refrigerator Screw
27A	2259355 Whirlpool Refrigerator Evaporator Rail
27	Evaporator, Cover Rail (Left Side)
28	2220904 Whirlpool Refrigerator Gasket
29	2302851 Whirlpool Support
30	W11676572 Whirlpool Refrigerator Wire Harness
31	W11553819 Whirlpool Refrigerator Insulation
32	WP2188820 Whirlpool Refrigerator Thermistor
34	WP2317844 Whirlpool Refrigerator Cover
35	1112260 Whirlpool EV Support
36	Deflector, Air Duct
37	W10833902 Whirlpool Refrigerator Clamp
