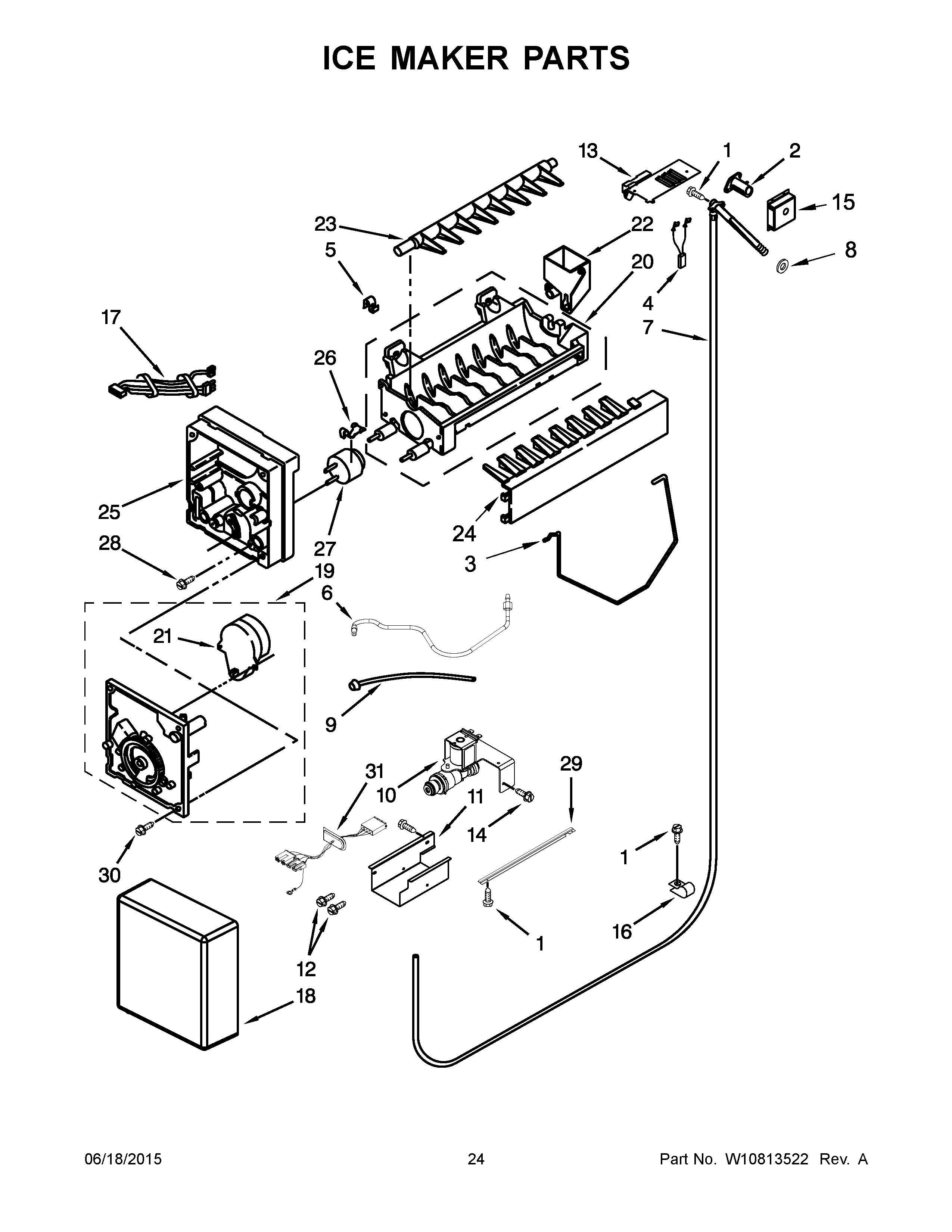

KBSN608EPA00 13 – ICE MAKER PARTS

KBSN608EPA00 13 – ICE MAKER PARTS

Written by

in

KBSN608EPA00 13 – ICE MAKER PARTS

Products

Position	Product
NI	W10489178 Whirlpool Installation Kit
NI	W10488118 Whirlpool Refrigerator Installation Kit
NI	W11175806 Whirlpool Refrigerator Installation Kit
NI	W10234156 Whirlpool Refrigerator Installation Kit
NI	DEODORIZER PACK
NI	ACCESSORIES, SS CLEANER
NI	ACCESSORIES, KITCHEN & APPLIANCE CLEANER
NI	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
NI	CABINET (NOT A SERVICEABLE PART)
1	W11624204 Whirlpool Screw
2	WP2221240 Whirlpool Refrigerator Heater
3	W11342242 Whirlpool Refrigerator Ice Level Arm
4	W10482373 Whirlpool Refrigerator Jumper Wire
5	WP628379 Whirlpool Refrigerator Clip
6	W11565275 Whirlpool Refrigerator Water Tube
7	W11662302 Whirlpool Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	VALVE-INLT REFR
11	Shield, Valve
12	WP489464 Whirlpool Refrigerator Screw
13	WP2221231 Whirlpool Refrigerator Shield
14	WP489069 Whirlpool Compactor Screw
15	Cover, Fill Tube Heater
16	WP488366 Whirlpool Refrigerator Clamp
17	W10508673 Whirlpool Refrigerator Wire Harness
18	WPW10289690 Whirlpool Ice Maker Cover
19	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	W11676540 Whirlpool Refrigerator Cup Fill
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10788834 Whirlpool Strip Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	W10001280 Whirlpool Refrigerator Screw
29	Support, Valve
30	WP681249 Whirlpool Screw Assembly
31	W10279393 Whirlpool Refrigerator Wire Harness
100	WPW10277450 Whirlpool Refrigerator Icemaker
