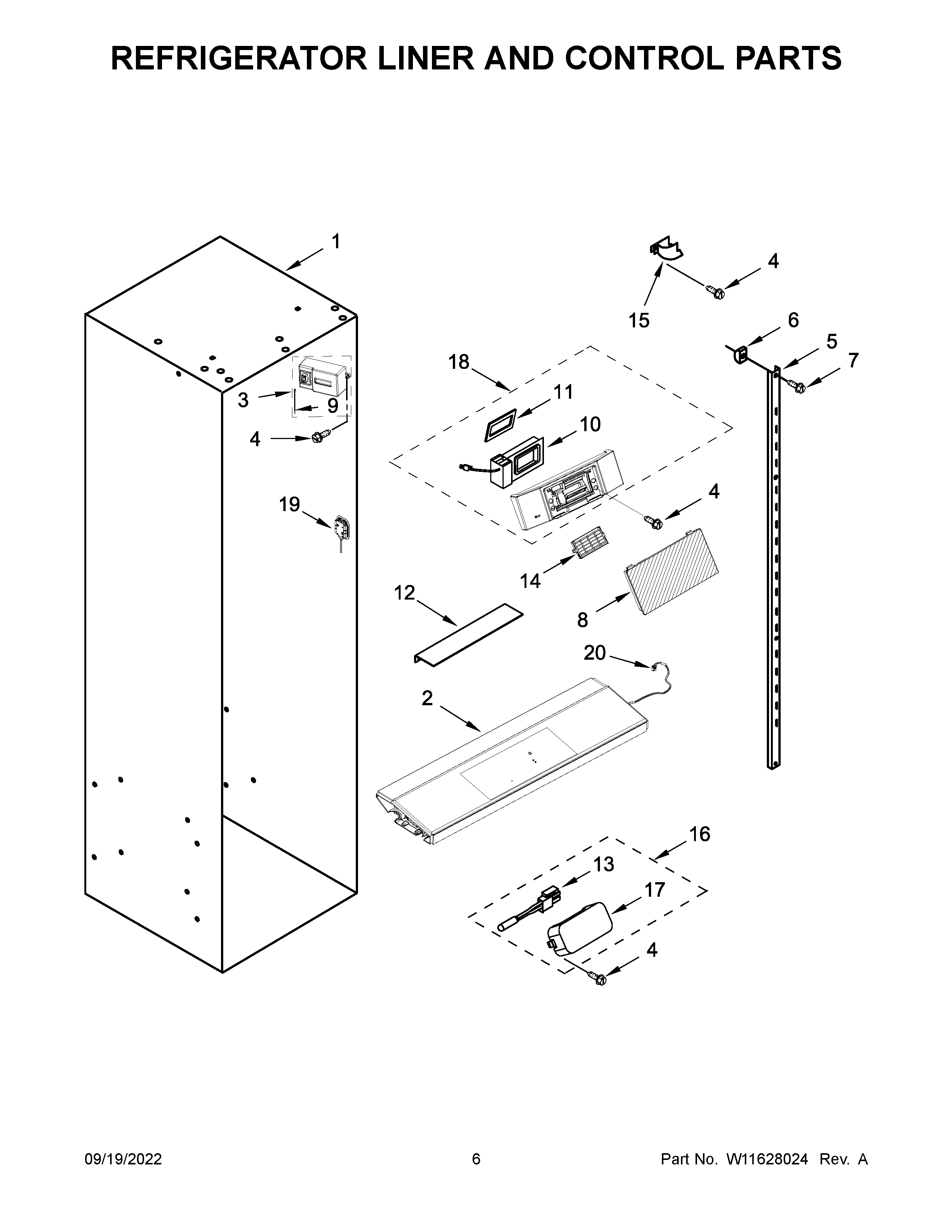

KBSN702MBS00 04 – REFRIGERATOR LINER AND CONTROL PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11626110-includeCORE Whirlpool W11626110 Refrigerator Electronic Control Board + Core
3	W11447198 Whirlpool Cover
4	WP488729 Whirlpool Refrigerator Door Screw
5	LADDER, SHELF
6	520965 Whirlpool Refrigerator Support
7	SCREW
8	COVER, AIR DIFFUSER
9	WP2302937 Whirlpool Refrigerator Thermistor
10	WP2220377 Whirlpool Refrigerator Air Baffle
11	GASKET, AIR BAFFLE
12	COVER
13	WP2188820 Whirlpool Refrigerator Thermistor
14	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
15	GUARD, AIR RETURN
16	W11625042 Whirlpool Cover
17	W10609678 Whirlpool Refrigerator Cover
18	W11630597 Whirlpool Appliance Diffuser
19	W11484836 Whirlpool Refrigerator Module
20	WIRE, USER INTERFACE JUMPER
