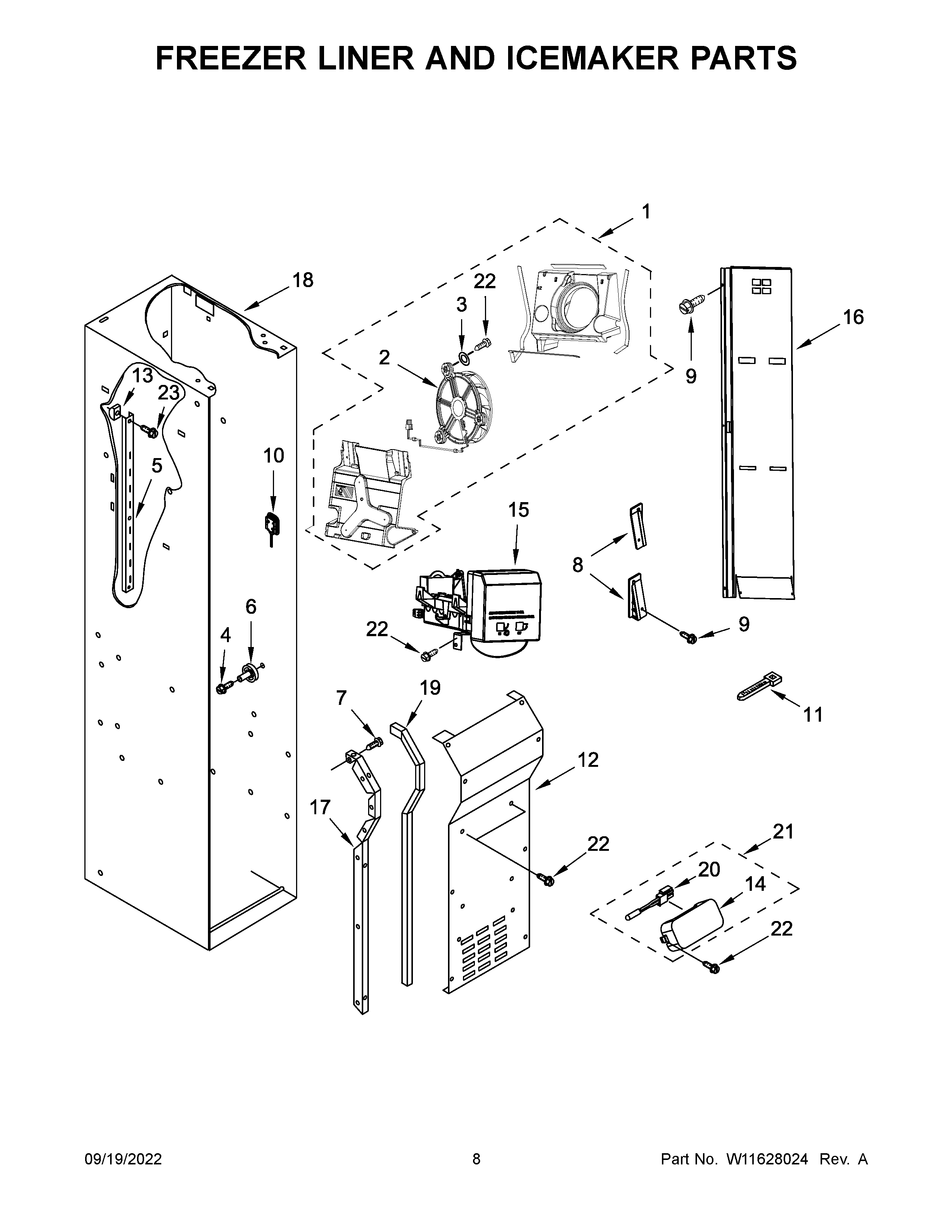

KBSN702MBS00 05 – FREEZER LINER AND ICEMAKER PARTS

KBSN702MBS00 05 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

KBSN702MBS00 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1W11631623 Whirlpool Evaporator Motor
2W11618271 Whirlpool Evaporator Motor
3WASHER
4WPW10191952 Whirlpool Refrigerator Screw
5LADDER, SHELF
6ASSEMBLY, SHELF STUD
7W11624204 Whirlpool Screw
8WEDGE, AIR DUCT (LEFT HAND)
8AWEDGE, AIR DUCT (RIGHT HAND)
9WP98008545 Whirlpool Screw
10W11484836 Whirlpool Refrigerator Module
11WPW10339879 Whirlpool Wire Tie
12COVER, EVAPORATOR
13520965 Whirlpool Refrigerator Support
14W10609678 Whirlpool Refrigerator Cover
15W11744512 Whirlpool Ice Maker Assembly
16DUCT, AIR
17ARAIL, EVAPORATOR COVER (RIGHT HAND)
17RAIL, EVAPORATOR COVER (LEFT HAND)
18CABINET (NOT A SERVICEABLE PART)
19GASKET, EVAPORATOR COVER
20WP2188820 Whirlpool Refrigerator Thermistor
21W11625042 Whirlpool Cover
22WP488729 Whirlpool Refrigerator Door Screw
23SCREW
