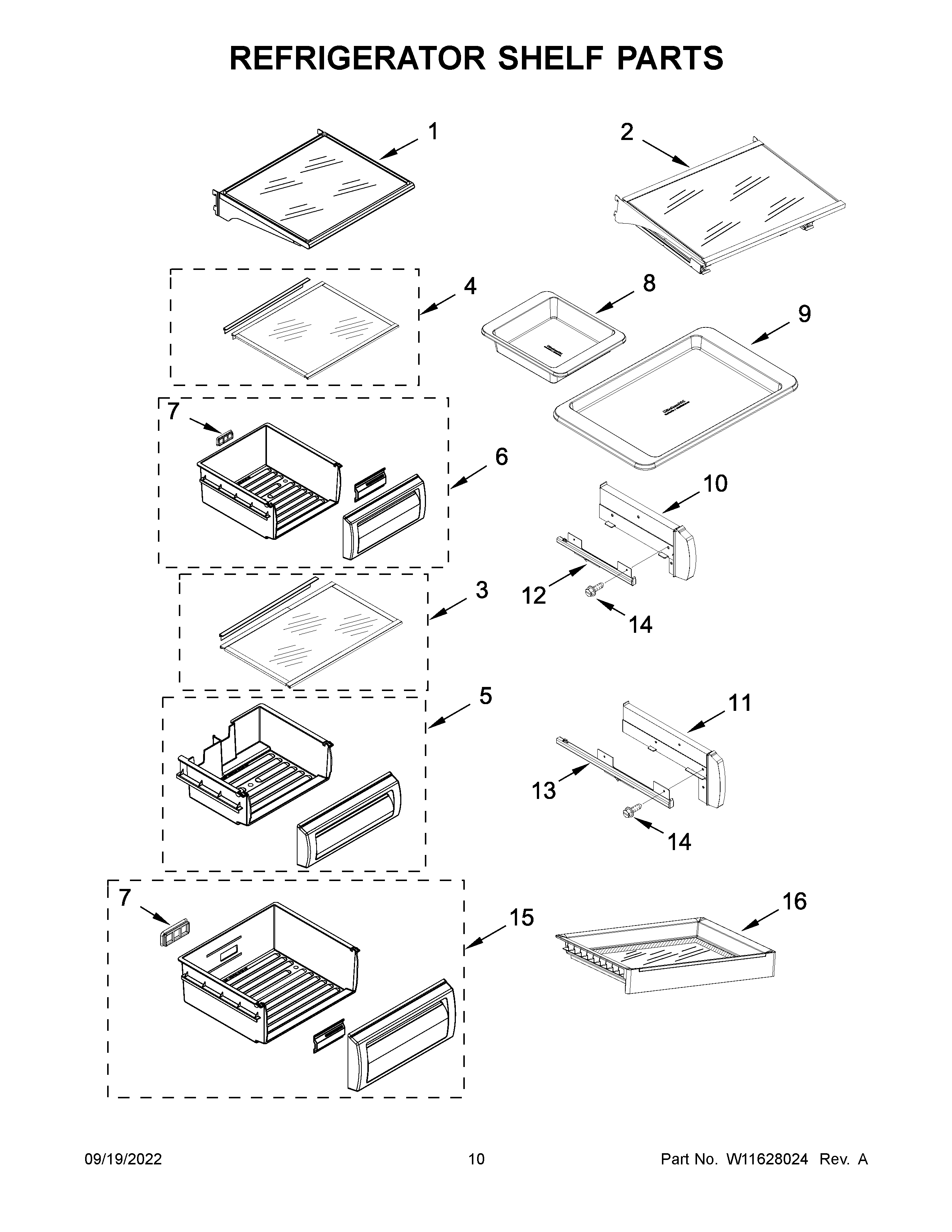

KBSN702MBS00 06 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	ASSEMBLY, SHELF
2	SHELF-GLAS
3	ASSEMBLY, MEAT PAN COVER
4	ASSEMBLY, CRISPER COVER
5	ASSEMBLY, MEAT PAN
6	ASSEMBLY, CRISPER PAN
7	2307810 Whirlpool Refrigerator Air Duct
8	W11633366 Whirlpool Utility Pan
9	W11633367 Whirlpool Utility Pan
10A	SPACER, CRISPER (RIGHT HAND)
10	SPACER, CRISPER (LEFT HAND)
11A	SPACER, MEAT PAN (RIGHT HAND)
11	SPACER, MEAT PAN (LEFT HAND)
12A	2302957 Whirlpool Refrigerator Slide
12	2302956 Whirlpool Refrigerator Slide
13A	2302955 Whirlpool Refrigerator Slide
13	2302954 Whirlpool Refrigerator Slide
14	WP8533928 Whirlpool Refrigerator Screw
14A	WP3400886 Whirlpool Refrigerator Screw
15	PAN, COOL CONTROL CRISPER
16	W11631250 Whirlpool Frame
