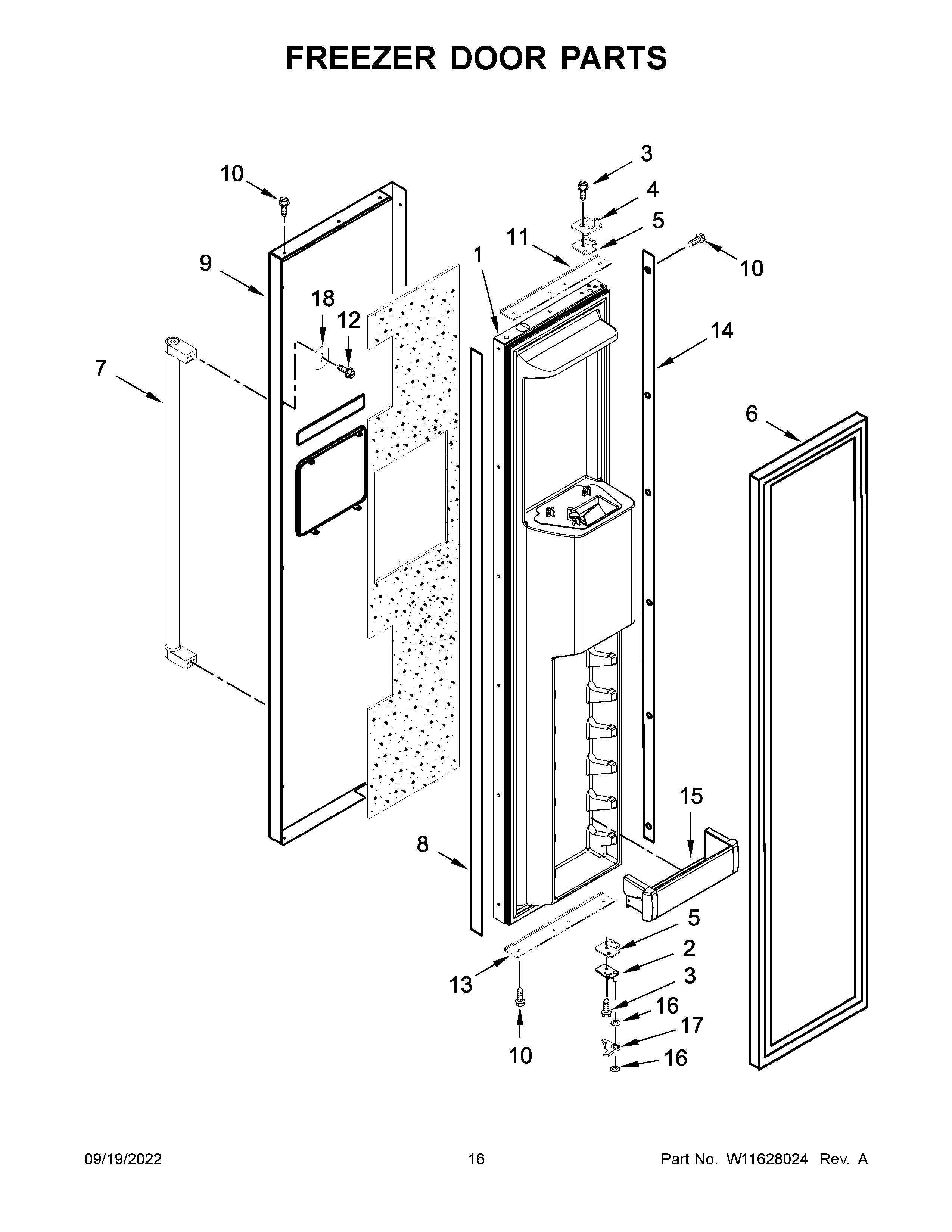

KBSN702MBS00 09 – FREEZER DOOR PARTS

KBSN702MBS00 09 – FREEZER DOOR PARTS

Written by

in

KBSN702MBS00 09 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER
2HINGE-DOOR
3W11474472 Whirlpool Screw
5W11673500 Whirlpool Door Hinge
6W11625082 Whirlpool Refrigerator FIP Gasket
7W10783284 Whirlpool Refrigerator Handle
8W10758113 Whirlpool Refrigerator Spacer
9AW10800800 Whirlpool Refrigerator Door Skin
9W11109254 Whirlpool Refrigerator Door Skin
10AWP8281250 Whirlpool Refrigerator Screw
10W10851443 Whirlpool Refrigerator Screw
11W10758117 Whirlpool Spacer
12WP308544 Whirlpool Screw
13SPACER, DOOR SKIN (BOTTOM)
14W10756209 Whirlpool Refrigerator Spacer
15W11408939 Whirlpool Bin Controller
16WP2006346 Whirlpool Refrigerator Washer
17W11700297 Whirlpool Refrigerator Gap Hinge
18W10127710 Whirlpool Refrigerator Plate
