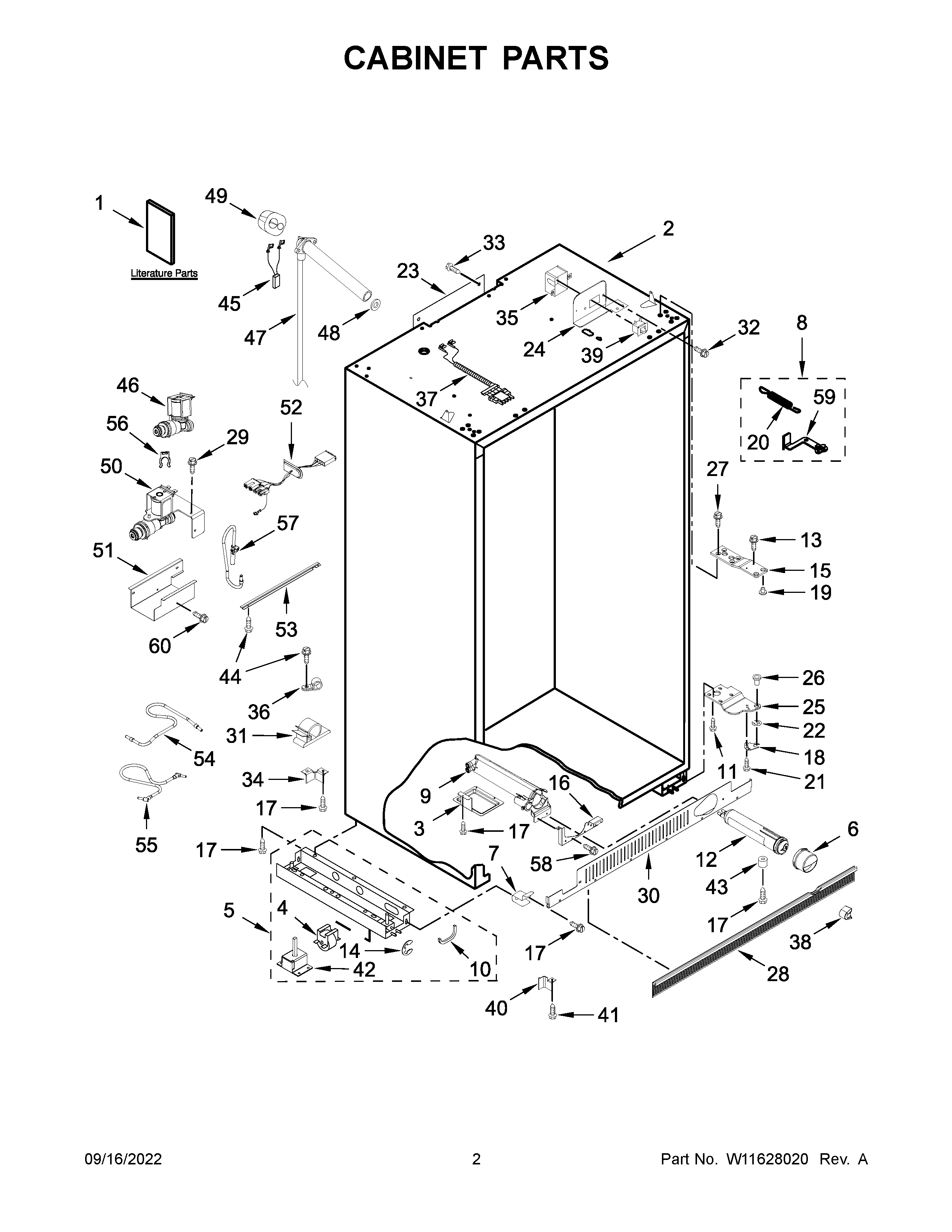

KBSN702MPA00 02 – CABINET PARTS

KBSN702MPA00 02 – CABINET PARTS

Written by

in

KBSN702MPA00 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1B	TECH SHEET
1	OWNER'S MANUAL
2	CABINET (NOT A SERVICEABLE PART)
3	2318189 Whirlpool Refrigerator Drip Pan
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5A	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	W11238395 Whirlpool Refrigerator Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
8	W10121047 Whirlpool Refrigerator Extension
8A	2324874 Whirlpool Refrigerator Extension
9	WPW10121140 Whirlpool Refrigerator Housing
10	2307584 Whirlpool Refrigerator Grommet
11	Screw
12	FILTER 3-SINGLE TEAL
13	WP8281164 Whirlpool Refrigerator Screw
14	2006841 Whirlpool Ring
15A	2252292 Whirlpool Refrigerator Door Hinge
15	2252291 Whirlpool Refrigerator Door Hinge
16	W10674648 Whirlpool Refrigerator Bracket
17	WP489464 Whirlpool Refrigerator Screw
18	WP2004994 Whirlpool Refrigerator Hinge Bushing
19	W11500952 Whirlpool Refrigerator Hinge Bushing
20	WP2004517 Whirlpool Refrigerator Spring
21	SCREW
22	WP489236 Whirlpool Refrigerator Ring
23	2215612 Whirlpool Refrigerator Duct Cover
24	BRACKET, SWITCH (LEFT HAND)
24A	BRACKET, SWITCH (RIGHT HAND)
25	2309472 Whirlpool Refrigerator Hinge
25A	2309471 Whirlpool Refrigerator Door Hinge
26	WP2302876 Whirlpool Refrigerator Hinge Bushing
27	W11721628 Whirlpool Screw Assembly
28	WPW10188549 Whirlpool Refrigerator Front Grille
29	WP489128 Whirlpool Refrigerator Screw
30	WPW10182717 Whirlpool Refrigerator Front Grille
31	CLIP
32	WP965173 Whirlpool Dishwasher Screw
33	WP1163283 Whirlpool Air Conditioner Screw
34	2006617 Whirlpool Refrigerator Bracket
35	COVER, SWITCH
36	W11456069 Whirlpool Refrigerator Clamp
37	W10780213 Whirlpool Harness Switch
38	WP2260503B Whirlpool Refrigerator Button
39A	W11291138 Whirlpool Refrigerator Door Switch
39	W11396033 Whirlpool Refrigerator Rocker Switch
40A	2006556 Whirlpool Refrigerator Bracket
40	2006616 Whirlpool Refrigerator Bracket
41	WPW10141604 Whirlpool Screw
42	2005032 Whirlpool Refrigerator Leveler
43	2005433 Whirlpool Refrigerator Spacer
44	W11624204 Whirlpool Screw
45	HEATER
46	W11246413 Whirlpool Refrigerator Inlet Valve
47	W11662302 Whirlpool Water Tube
48	WP1106508 Whirlpool Refrigerator Gasket
49	COVER, FILL TUBE
50	W11225845 Whirlpool Refrigerator Inlet Valve
51	W10619291 Whirlpool Refrigerator Shield
52	WPL W11479397
53	Support, Valve
54	W10619899 Whirlpool Refrigerator Water Tube
55	W10635851 Whirlpool Refrigerator Water Tube
56A	W10782424 Whirlpool Refrigerator Ring
56	W10782423 Whirlpool Refrigerator Ring
57	WPL W10577944
58	WP8281163 Whirlpool Refrigerator Screw
59A	W11418227 Whirlpool Refrigerator Extension
59	W11416733 Whirlpool Refrigerator Extension
60	WP489069 Whirlpool Compactor Screw
