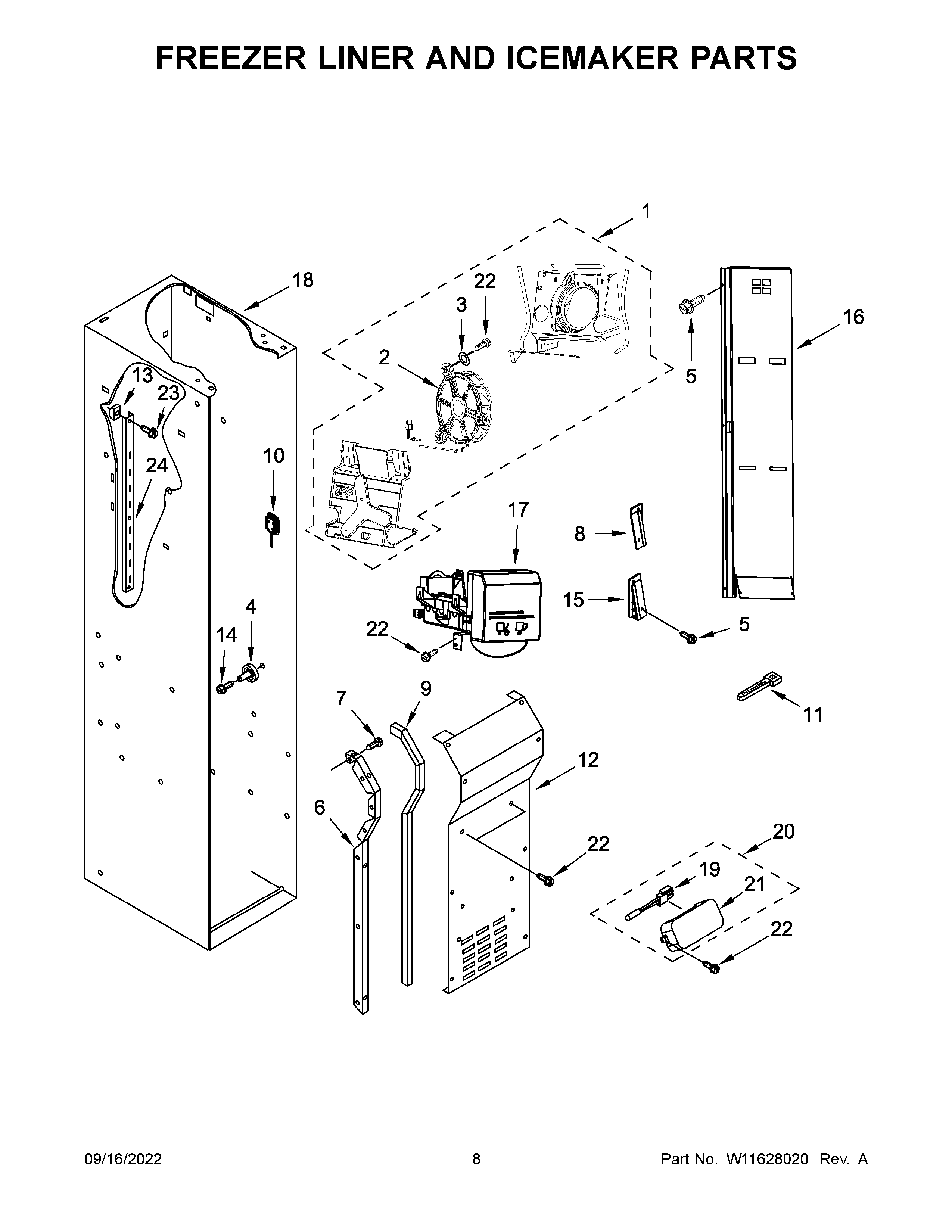

KBSN702MPA00 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1W11631623 Whirlpool Evaporator Motor
2W11618271 Whirlpool Evaporator Motor
3WASHER
4ASSEMBLY, SHELF STUD
5WP98008545 Whirlpool Screw
6ARAIL, EVAPORATOR COVER (RIGHT HAND)
6RAIL, EVAPORATOR COVER (LEFT HAND)
7W11624204 Whirlpool Screw
8WEDGE, AIR DUCT (RIGHT HAND)
9GASKET, EVAPORATOR COVER
10W11484836 Whirlpool Refrigerator Module
11WPW10339879 Whirlpool Wire Tie
12COVER, EVAPORATOR
13520965 Whirlpool Refrigerator Support
14WPW10191952 Whirlpool Refrigerator Screw
15WEDGE, AIR DUCT (LEFT HAND)
16DUCT, AIR
17W11744512 Whirlpool Ice Maker Assembly
18CABINET (NOT A SERVICEABLE PART)
19WP2188820 Whirlpool Refrigerator Thermistor
20W11625042 Whirlpool Cover
21W10609678 Whirlpool Refrigerator Cover
22WP488729 Whirlpool Refrigerator Door Screw
23SCREW
24LADDER, SHELF
