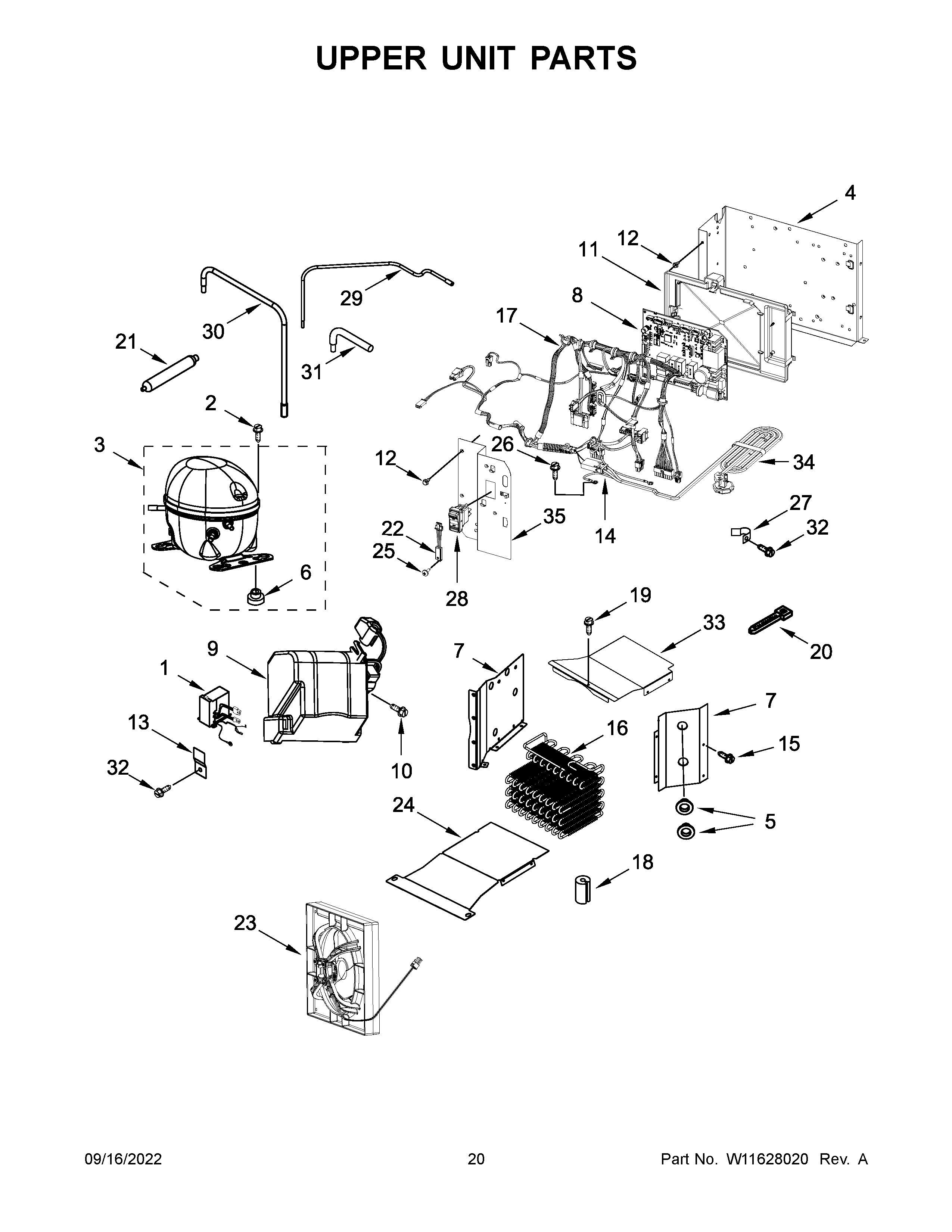

KBSN702MPA00 11 – UPPER UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	INVRTR-BOX
2	876811 Whirlpool Grommet
3A	W11504415 Whirlpool Refrigerator Coupler
3	W11557671 Whirlpool Refrigerator Compressor
3C	W11504416 Whirlpool Refrigerator Coupler
3B	W11504431 Whirlpool Microwave Coupler
4	W10550831 Whirlpool Refrigerator Housing
5	GROMMET
6	W11661108 Whirlpool Grommet
7A	SUPPORT, CONDENSER (RIGHT HAND)
7	SUPPORT, CONDENSER (LEFT HAND)
8	CNTRL-ELEC
9	W11247667 Whirlpool Refrigerator Cover
10	WP9741232 Whirlpool Dishwasher Screw
11	HOUSING, CONTROL BOARD
12	WP965173 Whirlpool Dishwasher Screw
13	2256328 Whirlpool Bracket Assembly
14	2310195 Whirlpool Refrigerator Wire Jumper
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
17	W11585870 Whirlpool Wire Harness
18	W10852725 Whirlpool Refrigerator Grommet
19	WP489399 Whirlpool Refrigerator Screw
20	WPW10339879 Whirlpool Wire Tie
21	W11109499 Whirlpool Refrigerator Tube
21B	W11504432 Whirlpool Refrigerator Coupler
21A	W11504445 Whirlpool Refrigerator Coupler
22	W11627456 Whirlpool Sensor
23	W11623099 Whirlpool Condenser Motor
24	WPL W11443119
25	SCREW
26	WP489128 Whirlpool Refrigerator Screw
27	W11234470 Whirlpool Refrigerator Clamp
28	SWITCH, POWER DISCONNECT
29	TUBE, HEAT LOOP TRANSITION
30	TUBE, DRIER TRANSITION
31	TUBE, PROCESS
32	W11624204 Whirlpool Screw
33	COVER, CONDENSER SUPPORT
34	2310196 Whirlpool Refrigerator Power Cord
35	BRACKET, CONTROL ASSEMBLY
