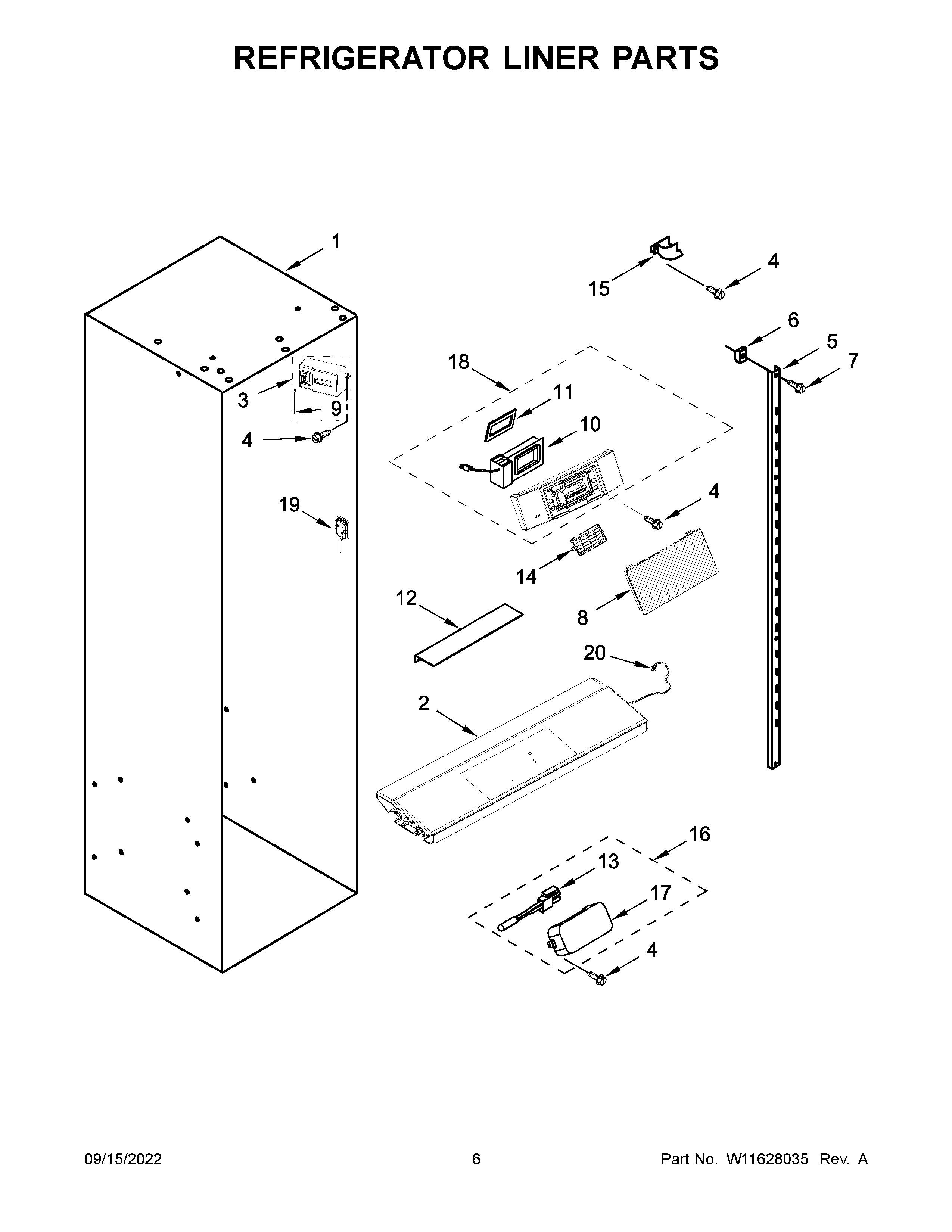

KBSN708MBS00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11626126 Whirlpool Refrigerator Electronic Control Board + Core
3W11447198 Whirlpool Cover
4WP488729 Whirlpool Refrigerator Door Screw
5LADDER, SHELF
6520965 Whirlpool Refrigerator Support
7SCREW
8COVER, AIR DIFFUSER
9WP2302937 Whirlpool Refrigerator Thermistor
10WP2220377 Whirlpool Refrigerator Air Baffle
11GASKET, AIR BAFFLE
12DIVERTER, CRISPER COVER
13WP2188820 Whirlpool Refrigerator Thermistor
14W10311524 Whirlpool FreshFlow Refrigerator Air Filter
15GUARD, AIR RETURN
16W11625042 Whirlpool Cover
17W10609678 Whirlpool Refrigerator Cover
18W11630597 Whirlpool Appliance Diffuser
19W11484836 Whirlpool Refrigerator Module
20WIRE, USER INTERFACE JUMPER
