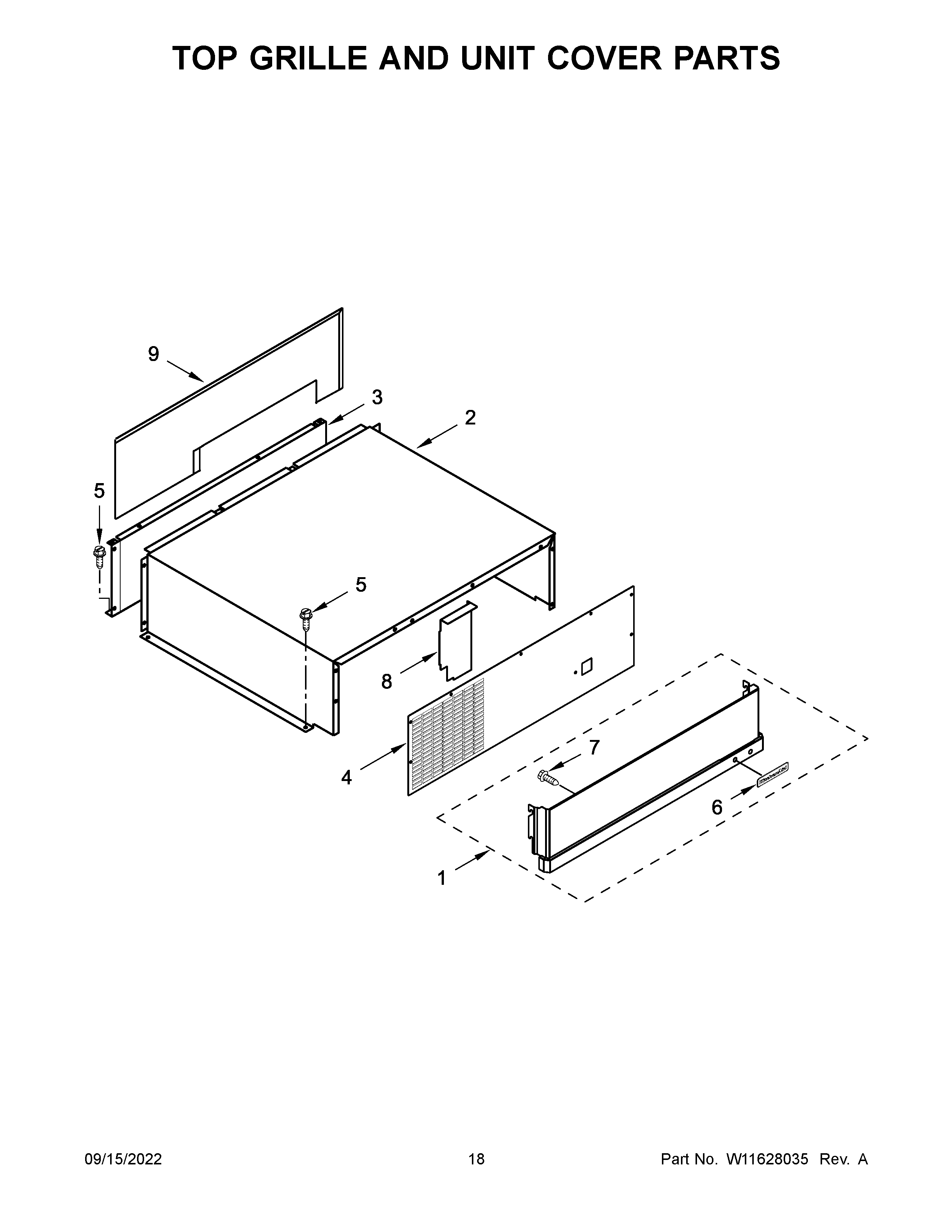

KBSN708MBS00 10 – TOP GRILLE AND UNIT COVER PARTS

KBSN708MBS00 10 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBSN708MBS00 10 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1W11449385 Whirlpool Refrigerator Upper Grille
1AGRILL-UPPR
2W10545068 Whirlpool Refrigerator Unit Cover
32256466 Whirlpool Refrigerator Unit Cover
4COVER, UNIT FRONT
5WPL W10784922
6W10839793 Whirlpool Refrigerator Nameplate
7WP489399 Whirlpool Refrigerator Screw
8W10645086 Whirlpool Refrigerator Divider
9INSULATION, UNIT BACK PANEL
