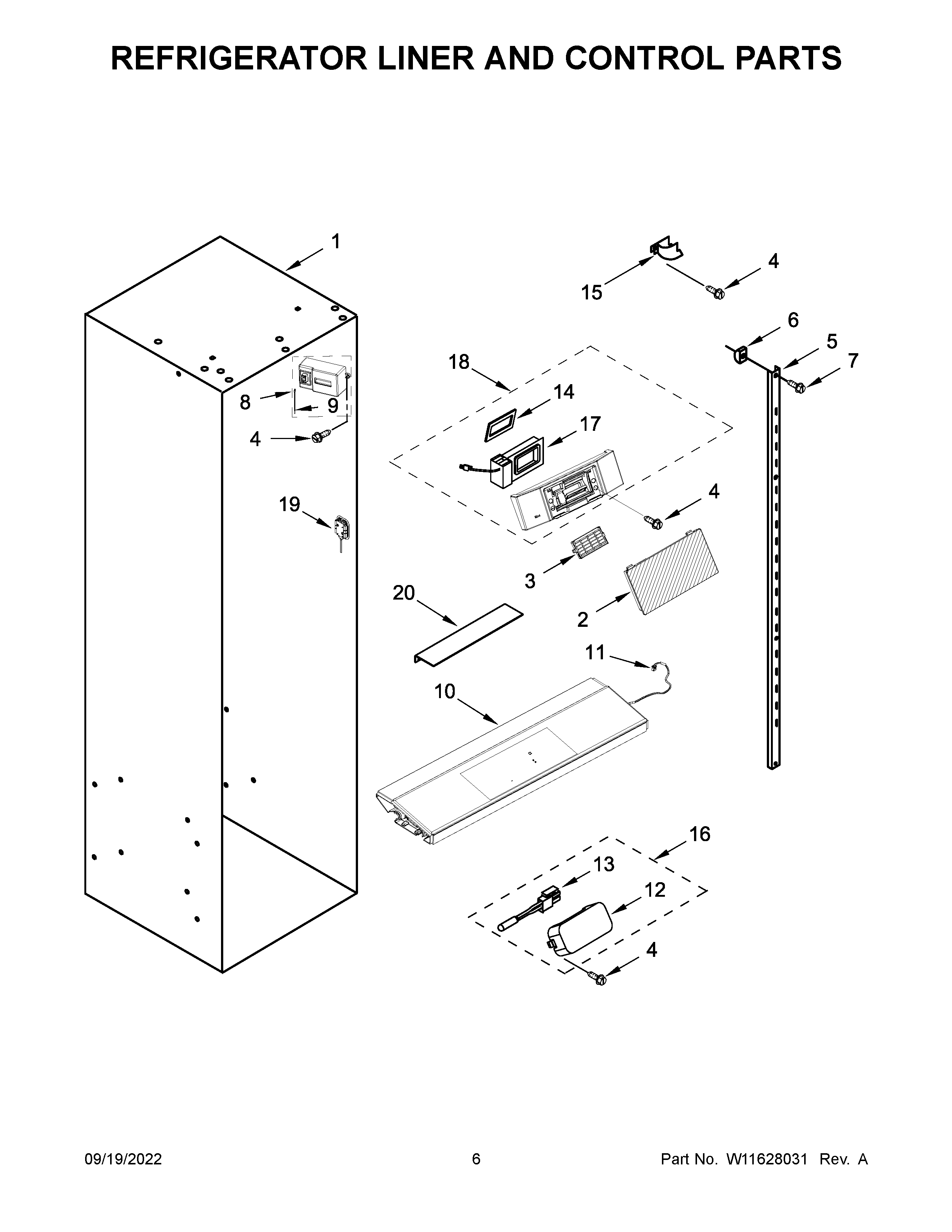

KBSN708MPA00 04 – REFRIGERATOR LINER AND CONTROL PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER, AIR DIFFUSER
3W10311524 Whirlpool FreshFlow Refrigerator Air Filter
4WP488729 Whirlpool Refrigerator Door Screw
5LADDER, SHELF
6520965 Whirlpool Refrigerator Support
7SCREW
8W11447198 Whirlpool Cover
9WP2302937 Whirlpool Refrigerator Thermistor
10W11626126 Whirlpool Refrigerator Electronic Control Board + Core
11WIRE, USER INTERFACE JUMPER
12W10609678 Whirlpool Refrigerator Cover
13WP2188820 Whirlpool Refrigerator Thermistor
14GASKET, AIR BAFFLE
15GUARD, AIR RETURN
16W11625042 Whirlpool Cover
17WP2220377 Whirlpool Refrigerator Air Baffle
18W11630597 Whirlpool Appliance Diffuser
19W11484836 Whirlpool Refrigerator Module
20DIVERTER, CRISPER COVER
