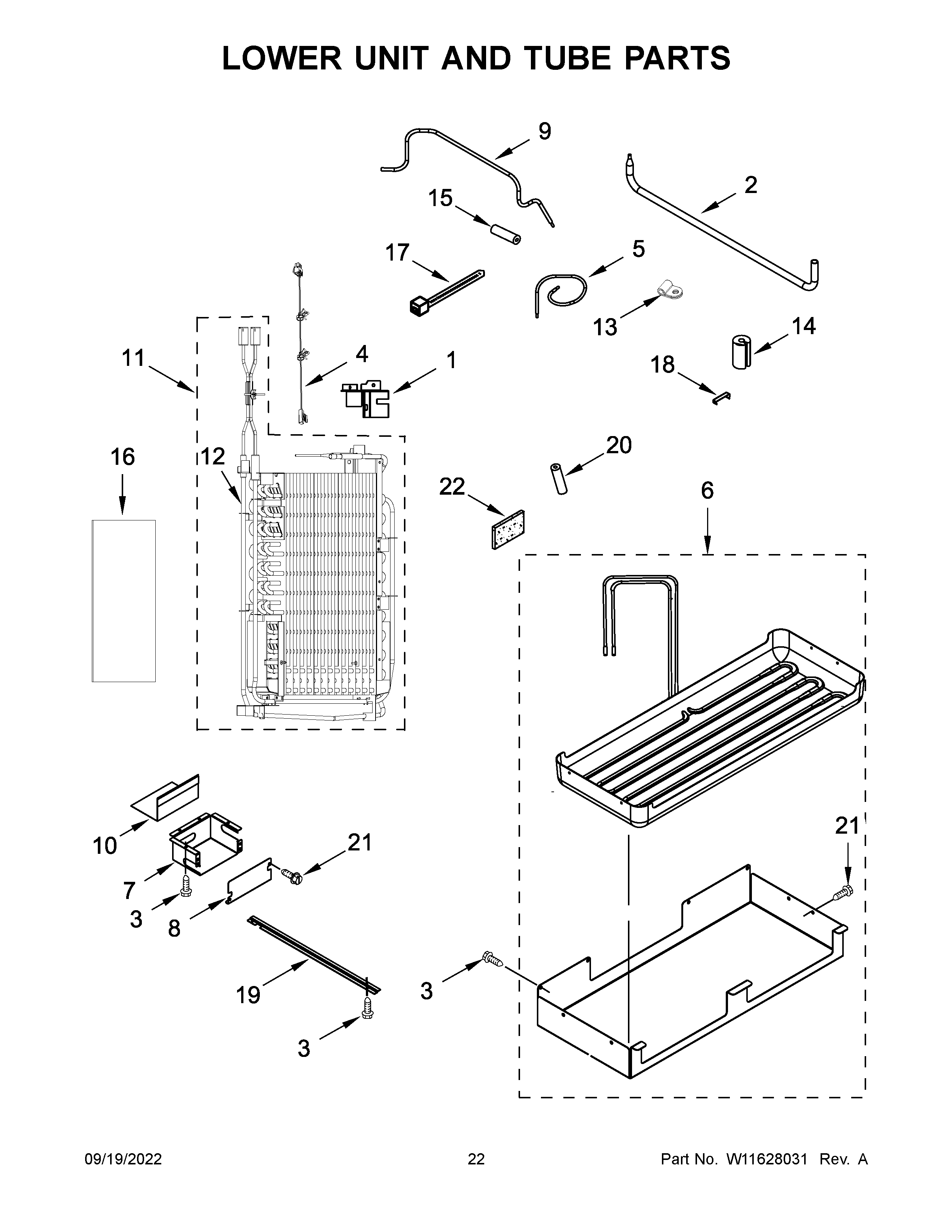

KBSN708MPA00 12 – LOWER UNIT AND TUBE PARTS

KBSN708MPA00 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KBSN708MPA00 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1BRACKET, EVAPORATOR RIGHT TOP
2TUBE
3W11624204 Whirlpool Screw
4W11629268 Whirlpool Thermistor
5TUBE
6ASSEMBLY, DRAIN PAN
7WPW10309012 Whirlpool Wire Cover
8WIRE BOX COVER
9TUBE, DISCHARGE
10W10321050 Whirlpool Refrigerator Shield
11BW11506620 Whirlpool Refrigerator Coupler
11AW11504450 Whirlpool Refrigerator Coupler
11W11629714 Whirlpool Evaporator
12W11626107 Whirlpool Heater Assembly
13W10833902 Whirlpool Refrigerator Clamp
14W11715935 Whirlpool Dampener
15SLEEVE
16GASKET, EVAPORATOR BYPASS
17WPW10339879 Whirlpool Wire Tie
18W10169509 Whirlpool Refrigerator Clip
192320554 Whirlpool Bracket
202215648 Whirlpool Refrigerator Dampener
21WP489069 Whirlpool Compactor Screw
22W11553819 Whirlpool Refrigerator Insulation
