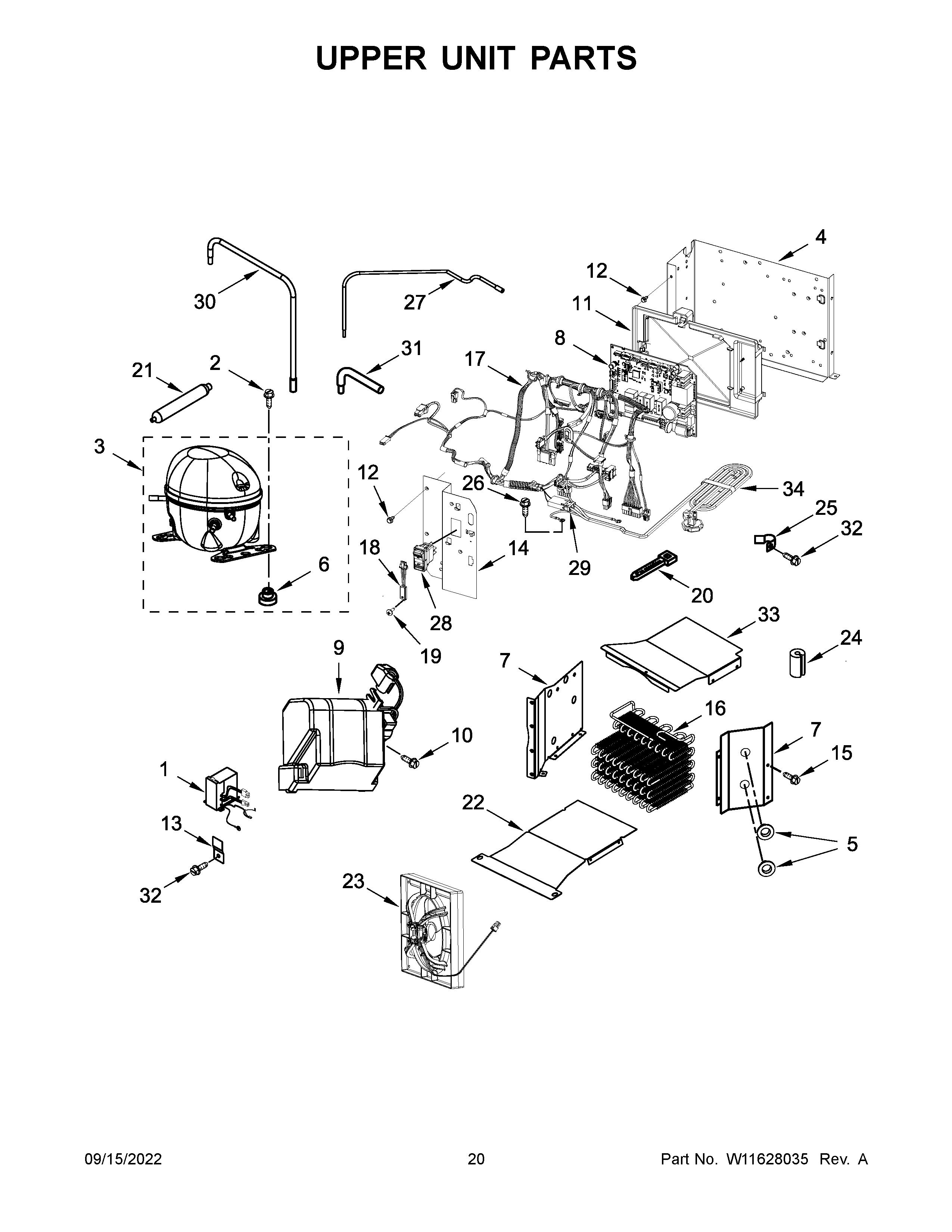

KBSN708MPS00 11 – UPPER UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1INVRTR-BOX
2876811 Whirlpool Grommet
3CW11504416 Whirlpool Refrigerator Coupler
3AW11504415 Whirlpool Refrigerator Coupler
3W11557671 Whirlpool Refrigerator Compressor
3BW11504431 Whirlpool Microwave Coupler
4W10550831 Whirlpool Refrigerator Housing
5GROMMET
6W11661108 Whirlpool Grommet
7SUPPORT, CONDENSER (LEFT HAND)
7ASUPPORT, CONDENSER (RIGHT HAND)
8CNTRL-ELEC
9W11247667 Whirlpool Refrigerator Cover
10WP9741232 Whirlpool Dishwasher Screw
11HOUSING, CONTROL BOARD
12WP965173 Whirlpool Dishwasher Screw
132256328 Whirlpool Bracket Assembly
14BRACKET, CONTROL ASSEMBLY
15WP489069 Whirlpool Compactor Screw
16CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
17W11585870 Whirlpool Wire Harness
18W11627456 Whirlpool Sensor
19SCREW
20WPW10339879 Whirlpool Wire Tie
21BW11504432 Whirlpool Refrigerator Coupler
21W11109499 Whirlpool Refrigerator Tube
21AW11504445 Whirlpool Refrigerator Coupler
22WPL W11443119
23W11623099 Whirlpool Condenser Motor
24W10852725 Whirlpool Refrigerator Grommet
25W11234470 Whirlpool Refrigerator Clamp
26WP489128 Whirlpool Refrigerator Screw
27TUBE, HEAT LOOP TRANSITION
28SWITCH, POWER DISCONNECT
292310195 Whirlpool Refrigerator Wire Jumper
30TUBE, DRIER TRANSITION
31TUBE, PROCESS
32W11624204 Whirlpool Screw
33COVER, CONDENSER SUPPORT
342310196 Whirlpool Refrigerator Power Cord
