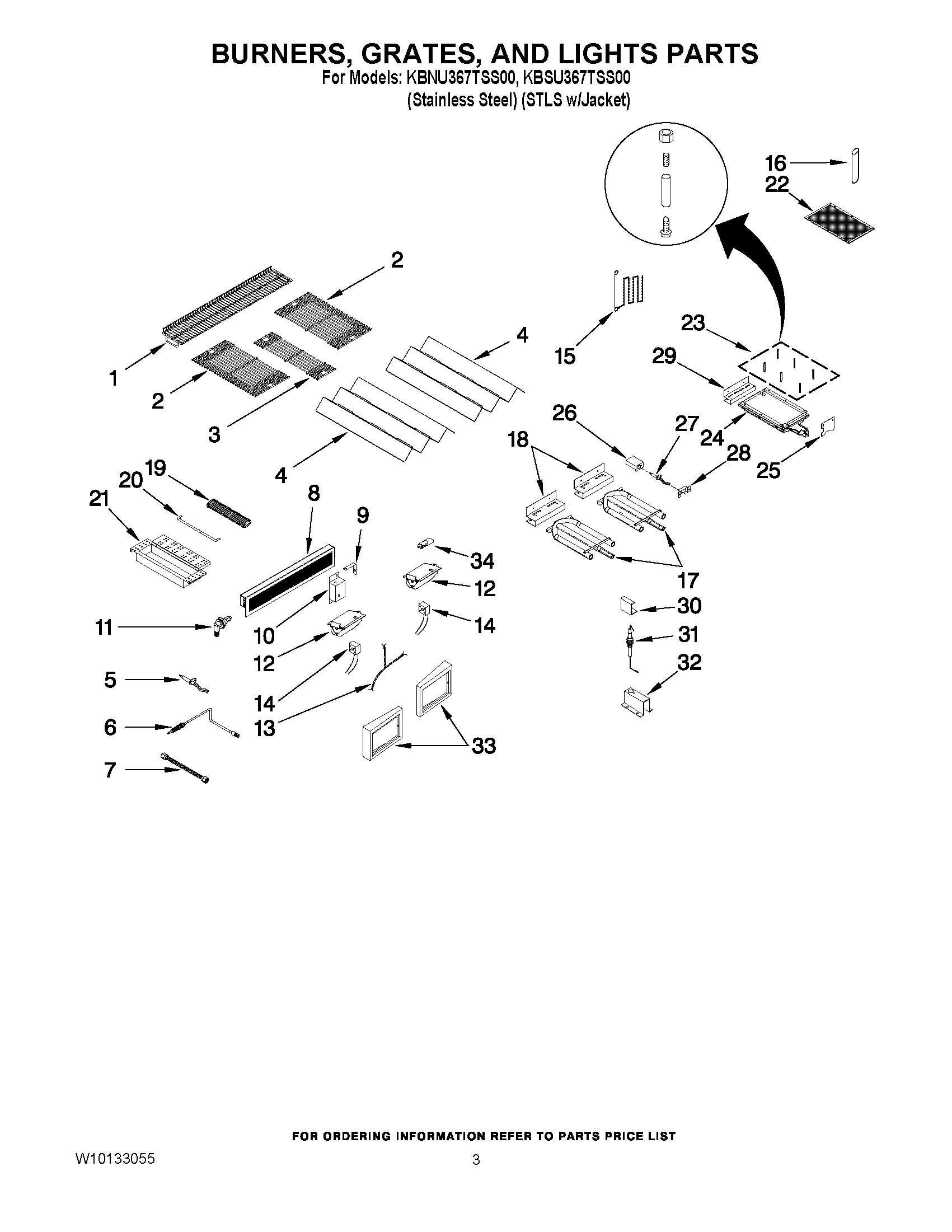

KBSU367TSS00 02 – BURNERS, GRATES, AND LIGHTS PARTS

KBSU367TSS00 02 – BURNERS, GRATES, AND LIGHTS PARTS

Written by

in

KBSU367TSS00 02 – BURNERS, GRATES, AND LIGHTS PARTS

Products

PositionProduct
1Rack, Warming
2Rack, Large
3Rack, Small
4Plate, Sear
5Electrode Kit, Rotisserie
6Thermocouple, Rear Burner
7Flex Tube, Rear Burner
8Burner, Rear
9Bracket, Rear Thermocouple
10Cover, Rear Thermocouple
11Orifice, Rear Burner
12Light, Grill
13HARNESS, WIRE LIGHTS
14Socket, Light
15Rod, Lighting
16Bag, Lighting Rod
17Burner, Main
18Bracket, Main Brnr
19GRATE, SMOKER
20HANDLE, SMOKER
21Box, Smoke
22Screen, Sear Brnr
23ROD, KIT
24WPW10134795 Whirlpool Burner
25Panel, Sear Brnr
26Ignitor, Gas Coll.
27IGNITER, HOT SURFACE
28Bracket, Sear Ign.
29Bracket, Sear Brnr
30IGNITOR, GAS COLL.
31IGNITOR,HOT SURFCE
32Bracket, Main Brnr
33Light Set
348204670 Whirlpool Microwave Halogen Lamp 10W 12V
