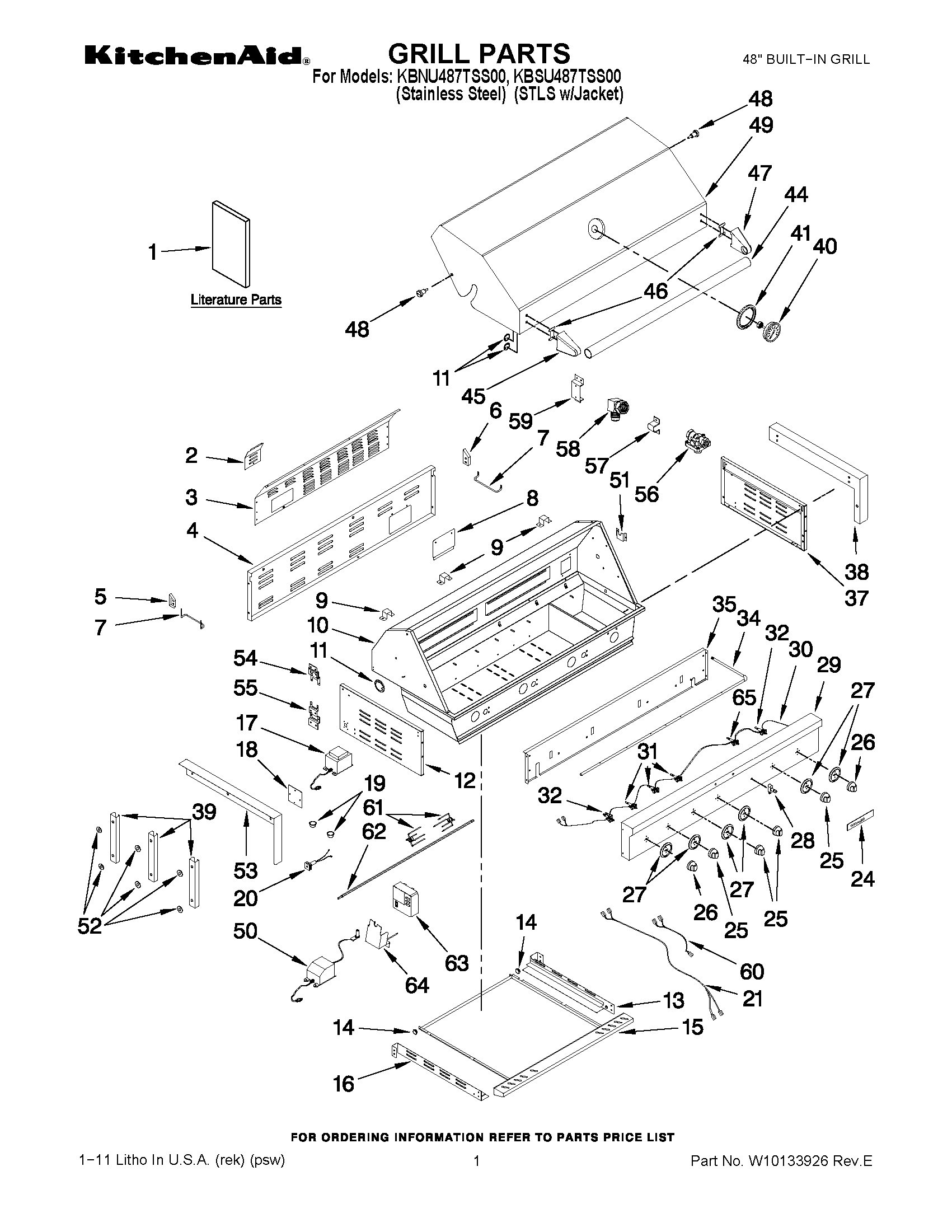

KBSU487TSS00 01 – GRILL PARTSadmin2025-04-26T12:28:40+00:00KBSU487TSS00 01 – GRILL PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 1 | Conversion Instr. (LP to Natural) |
| 2 | Cover, Rear |
| 3 | Panel, Rear |
| 4 | Panel, Access |
| 5 | Bracket, Panel Left |
| 6 | Bracket, Panel Right |
| 7 | Bracket, Warming Rack |
| 8 | Cover, Access Panel |
| 9 | Clip, Wire |
| 10 | Hood Assy |
| 11 | Hole Plug |
| 12 | Panel, Side Left |
| 13 | Bracket, Grease Tray (Right) |
| 14 | Roller, Drip Tray |
| 15 | Drip Tray Assy (Includes Rollers) (Small) |
| 15 | Drip Tray Assy (Includes Rollers) |
| 16 | Bracket, Grease Tray (Left) |
| 17 | W10247117 Whirlpool Oven Transformer |
| 18 | Cover, Wire Terminal |
| 19 | BUSHING (PLASTIC (No.SB22)) |
| 19 | BUSHING (PLASTIC (No.SB22)) |
| 20 | Outlet, Transformer |
| 21 | W10133876 Whirlpool Wire Harness |
| 24 | Nameplate |
| 25 | W10128753 Whirlpool Knob Assembly |
| 26 | WPW10128756 Whirlpool Knob |
| 27 | Bezel, Knob |
| 28 | Switch, Light |
| 29 | Panel, Control |
| 30 | Harness, Wire Control |
| 31 | WPW10128764 Whirlpool Oven Main Valve |
| 32 | WPW10128766 Whirlpool Main Valve |
| 34 | MANIFOLD |
| 35 | Baffle, Front |
| 37 | Side Panel, Right |
| 38 | Flange (RT) |
| 39 | Bracket, Flange |
| 40 | Thermometer |
| 41 | Bezel, Thermometer |
| 44 | Handle, Hood |
| 45 | Endcap, Handle (Left) |
| 46 | Spacer, Handle |
| 47 | Endcap, Handle (Right) |
| 48 | Hinge, Lid |
| 49 | Hood |
| 50 | WPW10247115 Whirlpool Transformer |
| 51 | Bracket, Spit |
| 52 | WASHER |
| 53 | Flange (LF) |
| 54 | Brkt, Trnsfrmr (Top) |
| 55 | Brkt, Trnsfrmr (Btm) |
| 56 | WPW10132702 Whirlpool Regulator |
| 57 | Fixture, Manifold |
| 58 | Connector (Bra |
| 59 | WPL W10128749 |
| 60 | WPL W10134818 |
| 61 | WPL W10134981 |
| 62 | Rod, Spit |
| 63 | WPW10167017 Whirlpool Rotisserie Motor |
| 64 | WPL W10134986 |
