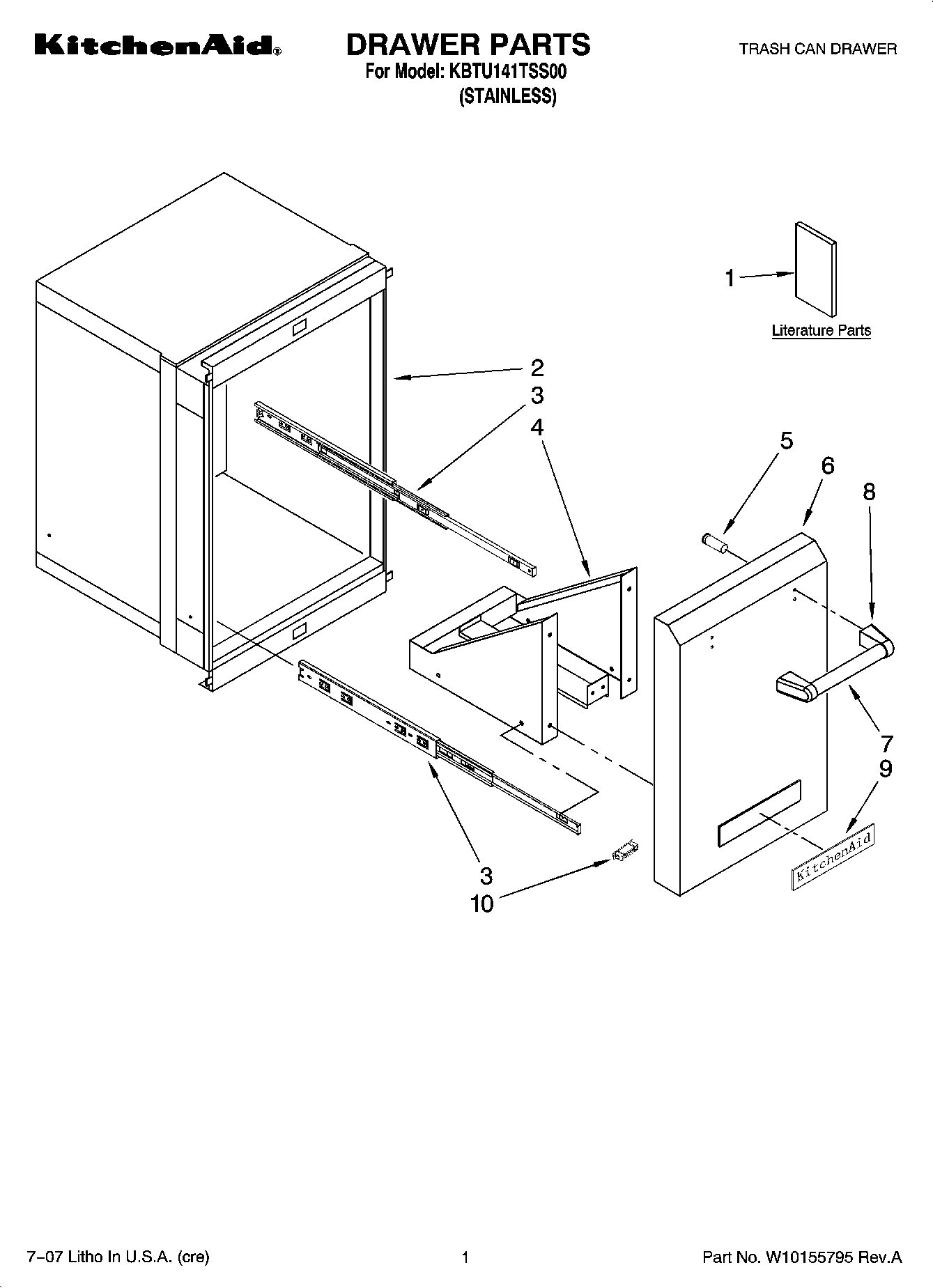

KBTU141TSS00 01 – DRAWER PARTS

Written by

Products

Position	Product
1	U & C Guide / Instructions, Installation
2	Frame, Door (Not Serviced)
3	Slide, Drawer
4	BRACKET,TRASH CAN
5	Hole Plug
6	Door
7	Handle, Door
8	Bracket, Handle
9	Nameplate
10	Magnet, Door
