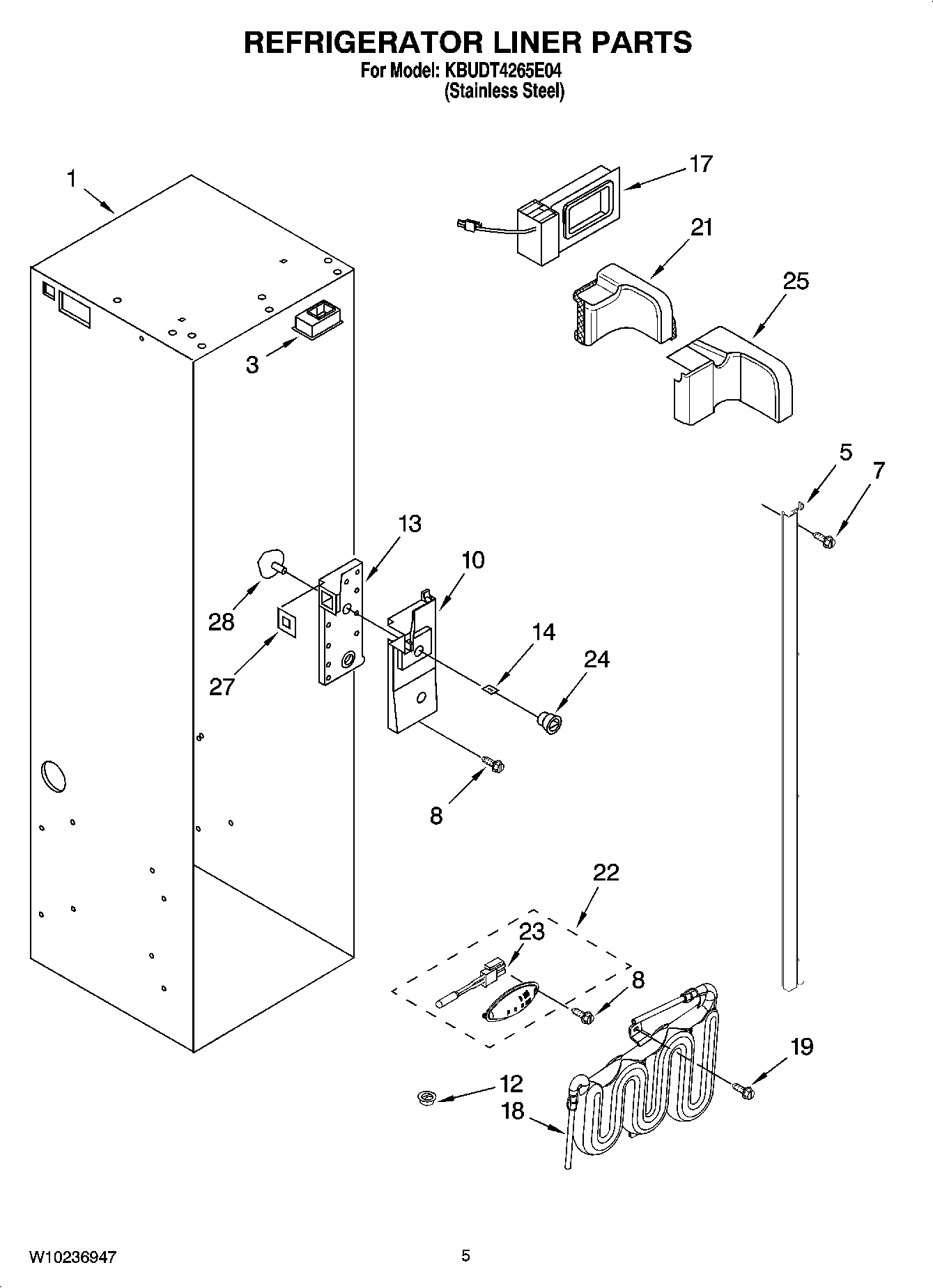

KBUDT4265E04 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
32208970 Whirlpool Refrigerator Air Duct
5Ladder, Shelf (Left Side)
5Ladder, Shelf (Right Side)
7SCREW
8WP488729 Whirlpool Refrigerator Door Screw
10Meat Pan, Air Duct Cover
122171846 Whirlpool Refrigerator Release Valve
13Meat Pan, Air Duct
14Retainer, Knob
17WP2221296 Whirlpool Air Baffle
18W10645131 Whirlpool Refrigerator Reservoir
19Screw (2)
21WP2309222 Whirlpool Refrigerator Diffuser
22WP2317844 Whirlpool Refrigerator Cover
23WP2188820 Whirlpool Refrigerator Thermistor
24Control Knob, Meat Pan
252309087 Whirlpool Refrigerator Cover
27Seal, Air Duct
28Damper Control, Meat Pan
