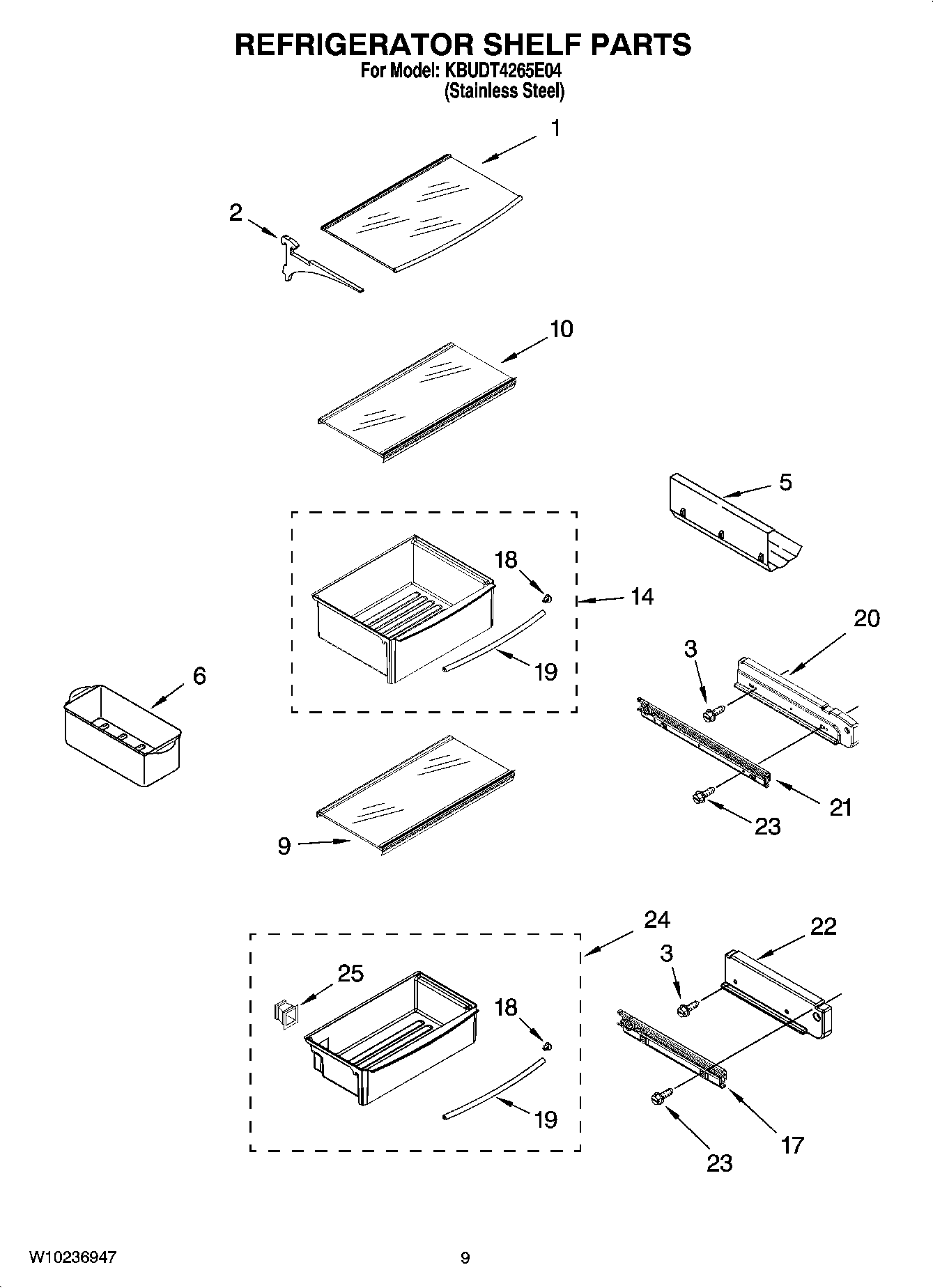

KBUDT4265E04 07 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Glass-Shelf Assy.
2	Sidearm, Shelf (8)
3	2006475 Whirlpool Refrigerator Screw
5	W10777924 Whirlpool Refrigerator Wine Rack
6	Egg Bin Assembly
9	Cover, Meat Pan
10	Cover, Crisper
14	Crisper Pan (2)
17	Glide, Short (Right Side)
17	Glide, Short (Left Side)
18	Trim-Endcap, Handle
19	Trim, Handle
20	Spacer, Crisper (Right Side)
20	Spacer, Crisper (Left Side)
21	Glide, Long (Left Side (2))
21	Glide, Long (Right Side (2))
22	Spacer, Meat Pan (Left Side)
22	Spacer, Meat Pan (Right Side)
23	WP488729 Whirlpool Refrigerator Door Screw
24	Pan Assembly Meat
25	Duct, Meat Pan
