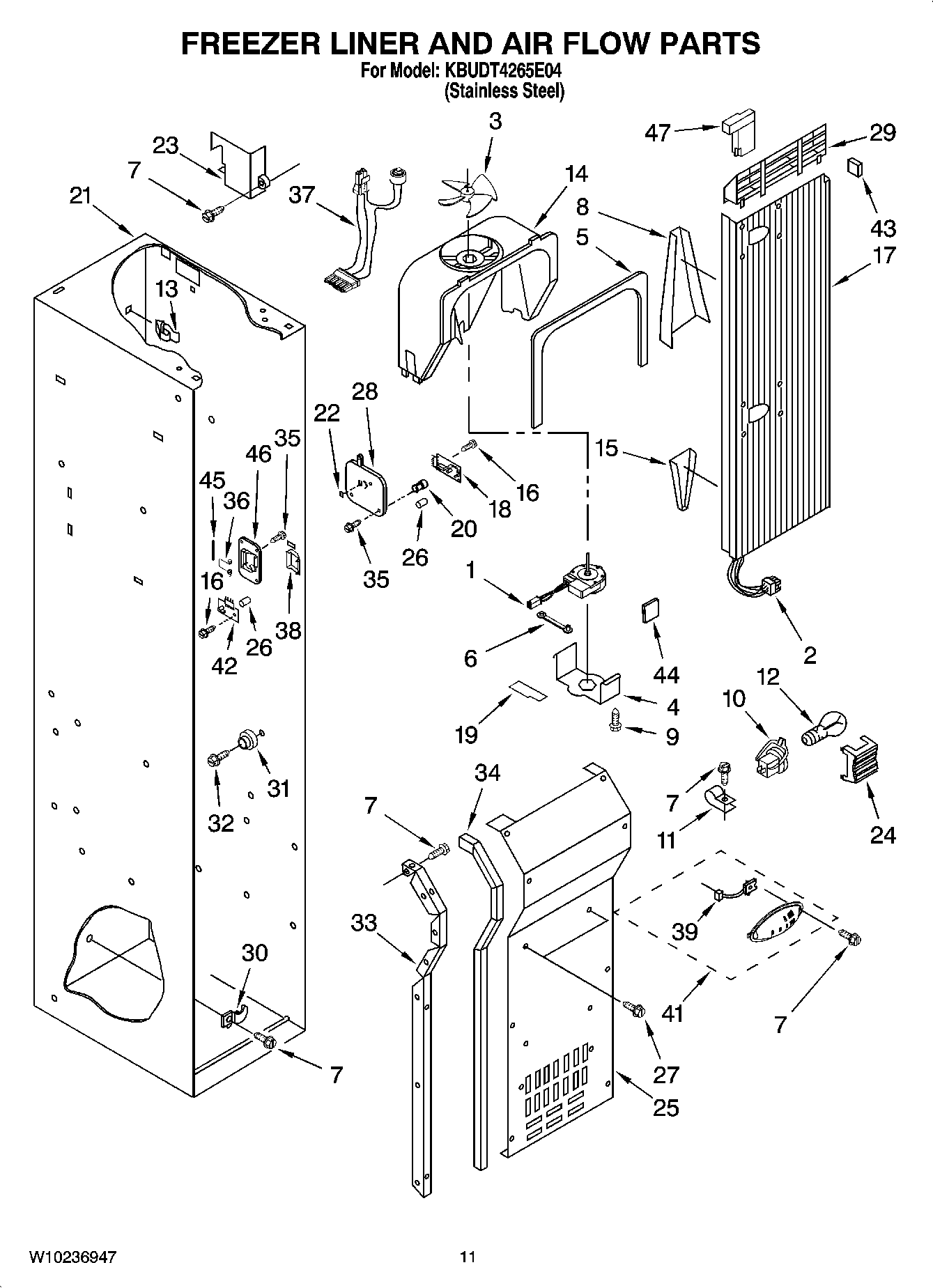

KBUDT4265E04 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1Motor, Fan
2Harness, Wire
3WP2169142 Whirlpool Fan Blade
48201663 Whirlpool Refrigerator Primary Fan Blade
5WP2302817 Whirlpool Refrigerator Gasket
6W11669856 Whirlpool Grommet
7W11624204 Whirlpool Screw
8Deflector, Air Duct
9WP489128 Whirlpool Refrigerator Screw
104387478 Whirlpool Refrigerator Light Socket
11Clamp, Tube
12W10887190 Whirlpool Refrigerator Light Bulb
132215823 Whirlpool Refrigerator Clip
14WP2182120 Whirlpool Refrigerator Scroll Fan
15Deflector, Air Duct
162006254 Whirlpool Refrigerator Screw
17Air Duct
192209066 Whirlpool Refrigerator Fan Block
198201798 Whirlpool Refrigerator Fan Block
20WP2198643 Whirlpool Refrigerator Lens
21Liner (Not A Serviceable Part)
22Slide, Icemaker Shut Off
23Cover, Air Outlet
24Light Shield
25Cover, Evaporator
26Tube, P.C. Board
27WP488729 Whirlpool Refrigerator Door Screw
282259496 Whirlpool Cover Assembly
29Diffuser, Air Duct
301112260 Whirlpool EV Support
31WP2196483 Whirlpool Refrigerator Shelf Stud
32WPW10191952 Whirlpool Refrigerator Screw
33Evaporator, Cover Rail (Left Side)
332259355 Whirlpool Refrigerator Evaporator Rail
342220904 Whirlpool Refrigerator Gasket
35WPW10142283 Whirlpool Refrigerator Screw
36WP2198635 Whirlpool Refrigerator Spring
37W10139189 Whirlpool Refrigerator Wire Harness
38WP2198633 Whirlpool Refrigerator Flipper
39WP2188820 Whirlpool Refrigerator Thermistor
41WP2317844 Whirlpool Refrigerator Cover
42W10757851-includeCORE Whirlpool Electronic Control+Core
43Gasket, Air Baffle
44W11553819 Whirlpool Refrigerator Insulation
45WP2198634 Whirlpool Door Pin
46Cover, Emitter
