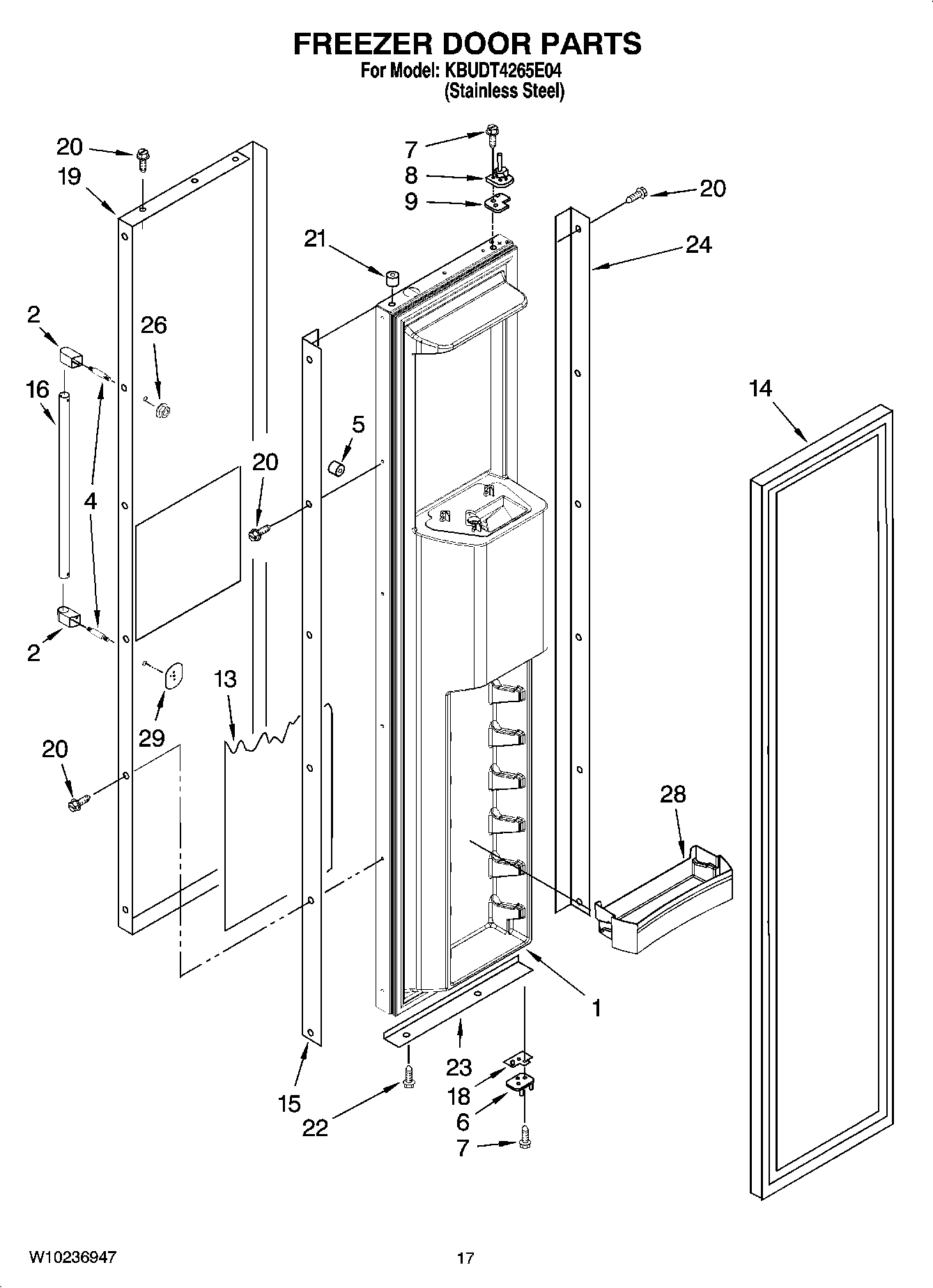

KBUDT4265E04 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door, Service (Includes Dispenser Items)
2Endcap, Handle (Top)
2Endcap, Handle (Bottom)
4Stud-Double End
52252354 Whirlpool Spacer Assembly
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
13Filler, Door
14WP2266905 Whirlpool Refrigerator Door Gasket
15Spacer, Door (Handle Side)
16Handle, Door
18W11673500 Whirlpool Door Hinge
19Skin, Door
20WP8281250 Whirlpool Refrigerator Screw
212005433 Whirlpool Refrigerator Spacer
22W10759522 Whirlpool Screw
232257385 Whirlpool Refrigerator Spacer
24SPACER, DOOR-SKIN (HINGE SIDE)
26Nut M6-1 X 6.0 HF
28Bin, Shelf F.C. (3)
29W10127710 Whirlpool Refrigerator Plate
