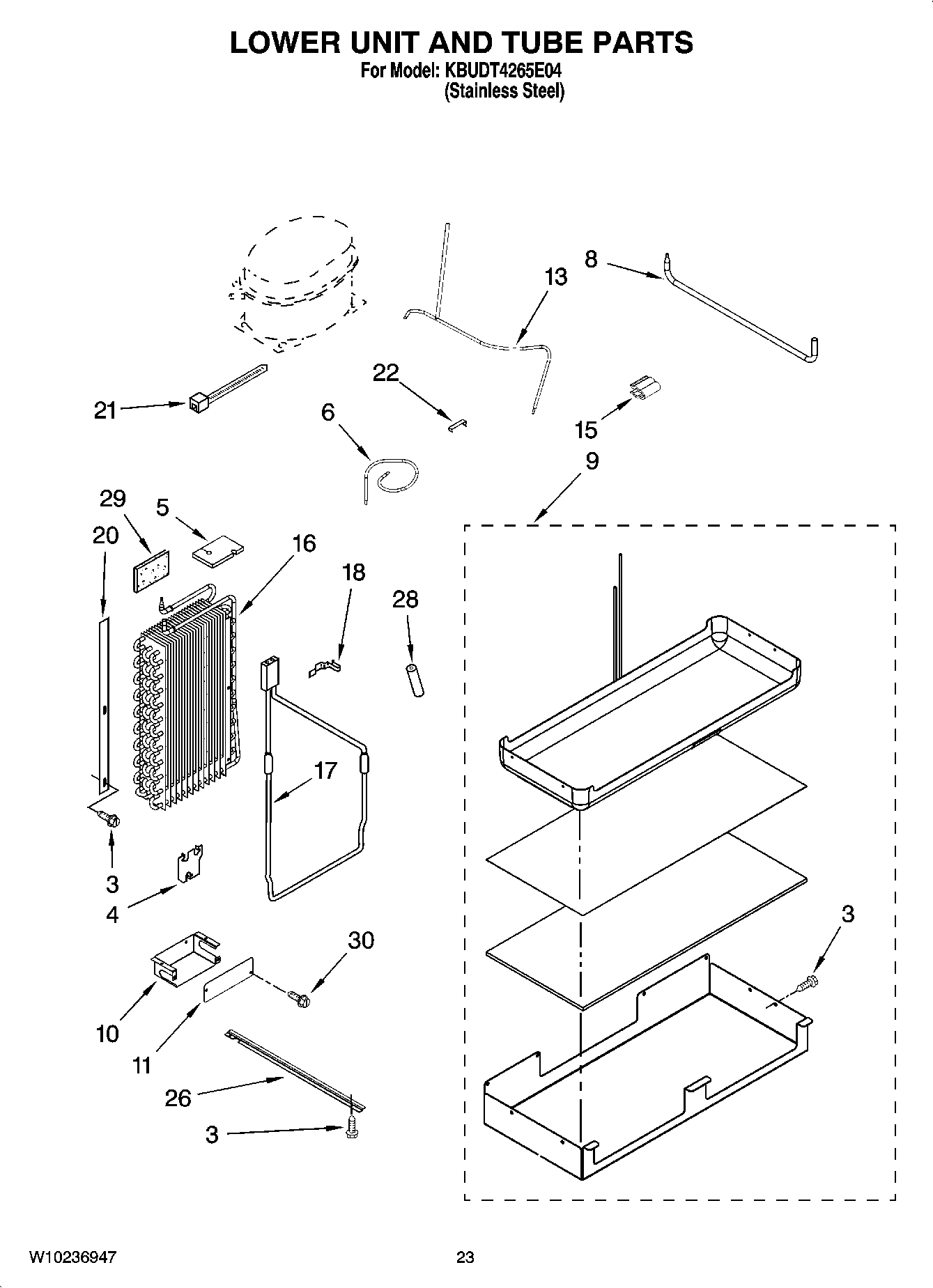

KBUDT4265E04 14 – LOWER UNIT AND TUBE PARTS

KBUDT4265E04 14 – LOWER UNIT AND TUBE PARTS

Written by

in

KBUDT4265E04 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
3W11624204 Whirlpool Screw
4W10157752 Whirlpool Bracket
5Seal, Return Air
6Tube, Suction
8W10388653 Whirlpool Refrigerator Tube
9WPW10281063 Whirlpool Refrigerator Heater Pan
10Cover, Wiring
11Cover, Box
13W10412488 Whirlpool Refrigerator Tube
159791833 Whirlpool Refrigerator Clip
16WPW10205101 Whirlpool Refrigerator Evaporator
17W10140161 Whirlpool Refrigerator Heater
181113048 Whirlpool Refrigerator Clamp
20Gasket, Evaporator
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
262320554 Whirlpool Bracket
282215648 Whirlpool Refrigerator Dampener
29W11553819 Whirlpool Refrigerator Insulation
30WP489069 Whirlpool Compactor Screw
